Polar and Nonpolar Covalent Bonds

Polar Covalent Bonds

There are two types of covalent bonds: polar and nonpolar. In a polar covalent bond, shown in the figure below, the electrons are unequally shared by the atoms. They are also attracted more to one nucleus than the other. Because of the unequal distribution of electrons between the atoms of different elements, a slightly positive (δ+) or slightly negative (δ–) charge develops. This partial charge is an important property of water and accounts for many of its characteristics.

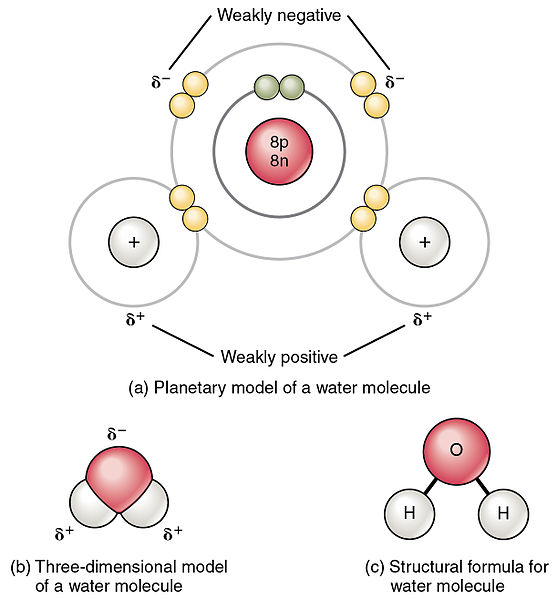

Water as a polar molecule

Water is a polar molecule. This means that the hydrogen atoms acquire a partial positive charge and the oxygen a partial negative charge. This occurs because the nucleus of the oxygen atom is more attractive to the electrons of the hydrogen atoms than the hydrogen nucleus is to the oxygen’s electrons. Thus oxygen has a higher electronegativity than hydrogen. As a result, the shared electrons spend more time in the vicinity of the oxygen nucleus than they do near the nucleus of the hydrogen atoms. Also, this gives the atoms of oxygen and hydrogen slightly negative and positive charges, respectively.

Image Attribution: "Polar Covalent Bonds in a Water Molecule," by OpenStax College Anatomy & Physiology via Wikimedia Commons (CC BY 3.0)

Another way of stating this is that the probability of finding a shared electron near an oxygen nucleus is more likely than finding it near a hydrogen nucleus. Either way, the atom’s relative electronegativity contributes to the development of partial charges whenever one element is significantly more electronegative than the other. The charges generated by these polar bonds may then be used for the formation of hydrogen bonds based on the attraction of opposite partial charges.

Hydrogen bonds, which are discussed in detail in the next lesson, are weak bonds between slightly positively charged hydrogen atoms to slightly negatively charged atoms in other molecules. Since macromolecules often have atoms within them that differ in electronegativity, polar bonds are often present in organic molecules.

Nonpolar Covalent Bonds

Nonpolar covalent bonds form between two atoms of the same element or between different elements that share electrons equally. For example, molecular oxygen (O₂) is nonpolar because the electrons will be equally distributed between the two oxygen atoms.

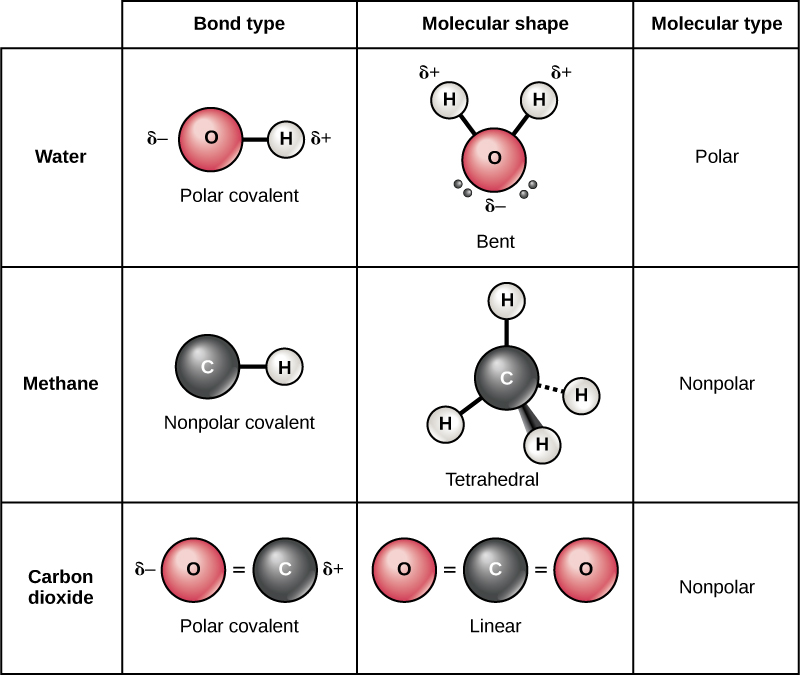

Whether a molecule is polar or nonpolar depends both on bond type and molecular shape. Both water and carbon dioxide have polar covalent bonds. However, carbon dioxide is linear, so the partial charges on the molecule cancel each other out. Image Attribution: OpenStax Biology

Another example of a nonpolar covalent bond is methane (CH₄), also shown in the figure above. Carbon has four electrons in its outermost shell and needs four more to fill it. It gets these four from four hydrogen atoms, each atom providing one, making a stable outer shell of eight electrons.

Carbon and hydrogen do not have the same electronegativity but are similar; thus, nonpolar bonds form. The hydrogen atoms each need one electron for their outermost shell, which is filled when it contains two electrons. These elements share the electrons equally among the carbons and the hydrogen atoms, creating a nonpolar covalent molecule.
