The Prokaryotic Cell

Recall that prokaryotes (see the figure below) are unicellular organisms that lack organelles or other internal membrane-bound structures. Therefore, they do not have a nucleus but instead generally have a single chromosome—a piece of circular, double-stranded DNA located in an area of the cell called the nucleoid. Most prokaryotes have a cell wall outside the plasma membrane.

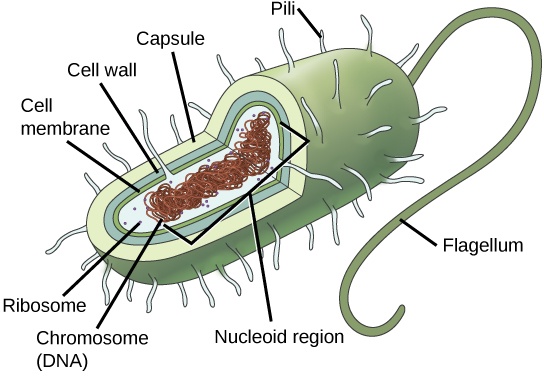

The features of a typical prokaryotic cell are shown.

Recall that prokaryotes are divided into two different domains, Bacteria and Archaea, which together with Eukarya, comprise the three domains of life (see the figure below).

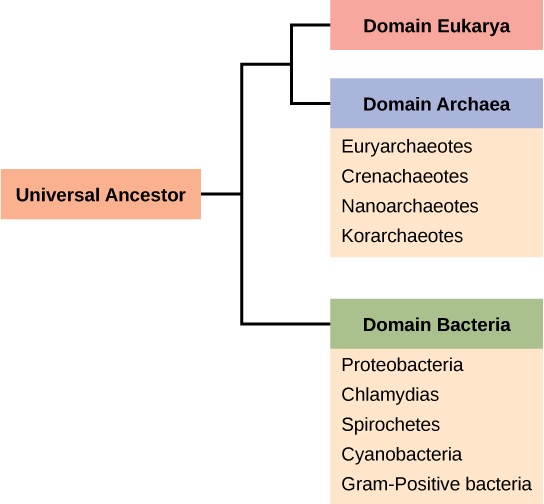

The trunk of the phylogenetic tree is a universal ancestor. The tree forms two branches. One branch leads to the domain bacteria, which includes the phyla proteobacteria, chlamydias, spirochetes, cyanobacteria, and Gram-positive bacteria. The other branch branches again, into the eukarya and archaea domains. Domain archaea includes the phyla euryarchaeotes, crenarchaeotes, nanoarchaeotes, and korarchaeotea.

Bacteria and Archaea are both prokaryotes but differ enough to be placed in separate domains. An ancestor of modern Archaea is believed to have given rise to Eukarya, the third domain of life. Archaeal and bacterial phyla are shown; the evolutionary relationship between these phyla is still open to debate.

The composition of the cell wall differs significantly between the domains Bacteria and Archaea. The composition of their cell walls also differs from the eukaryotic cell walls found in plants (cellulose) or fungi and insects (chitin). The cell wall functions as a protective layer, and it is responsible for the organism’s shape. Some bacteria have an outer capsule outside the cell wall. Other structures are present in some prokaryotic species, but not in others (see the table below at the end of this lesson). For example, the capsule found in some species enables the organism to attach to surfaces, protects it from dehydration and attack by phagocytic cells, and makes pathogens more resistant to our immune responses. Some species also have flagella (singular, flagellum) used for locomotion, and pili (singular, pilus) used for attachment to surfaces. Plasmids, which consist of extra-chromosomal DNA, are also present in many species of bacteria and archaea.

Characteristics of phyla of Bacteria are described in this figure below and this figure below; Archaea are described in this figure below.

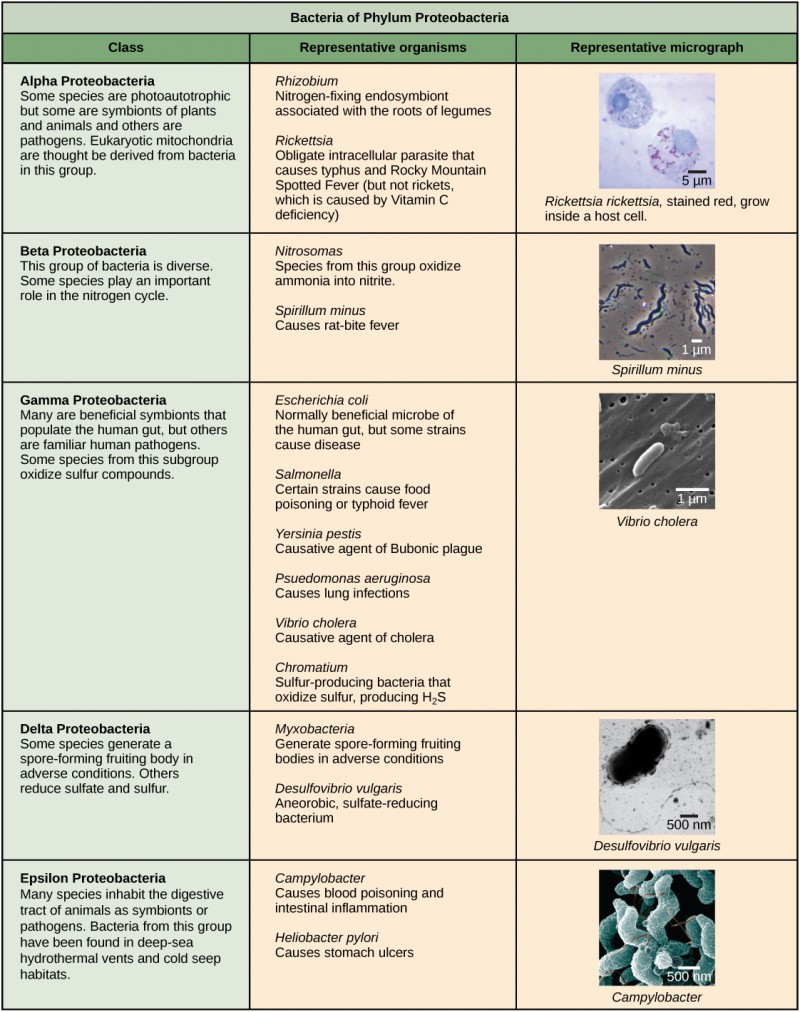

Characteristics of the five phyla of bacteria are described. The first phylum described is proteobacteria, which includes five classes, alpha, beta, gamma, delta and epsilon. Most species of Alpha Proteobacteria are photoautotrophic but some are symbionts of plants and animals, and others are pathogens. Eukaryotic mitochondria are thought be derived from bacteria in this group. Representative species include Rhizobium, a nitrogen-fixing endosymbiont associated with the roots of legumes, and Rickettsia, obligate intracellular parasite that causes typhus and Rocky Mountain Spotted Fever (but not rickets, which is caused by Vitamin C deficiency). A micrograph shows rod-shaped Rickettsia rickettsii inside a much larger eukaryotic cell. Beta Proteobacteria is a diverse group of bacteria. Some species play an important role in the nitrogen cycle. Representative species include Nitrosomas, which oxidize ammonia into nitrate, and Spirillum minus, which causes rat bite fever. A micrograph of spiral-shaped Spirillum minus is shown. Gamma Proteobacteria include many are beneficial symbionts that populate the human gut, as well as familiar human pathogens. Some species from this subgroup oxidize sulfur compounds. Representative species include Escherichia coli, normally beneficial microbe of the human gut, but some strains cause disease; Salmonella, certain strains of which cause food poisoning, and typhoid fever; Yersinia pestis–the causative agent of Bubonic plague; Psuedomonas aeruganosa– causes lung infections; Vibrio cholera, the causative agent of cholera, and Chromatium–sulfur producing bacteria bacteria that oxidize sulfur, producing H2S. Micrograph shows rod-shaped Vibrio cholera, which are about 1 micron long. Some species of delta Proteobacteria generate a spore-forming fruiting body in adverse conditions. Others reduce sulfate and sulfur. Representative species include Myxobacteria, which generate spore-forming fruiting bodies in adverse conditions and Desulfovibrio vulgaris, an aneorobic, sulfur-reducing bacterium. Micrograph shows a bent rod-shaped Desulfovibrio vulgaris bacterium with a long flagellum. Epsilon Proteobacteria includes many species that inhabit the digestive tract of animals as symbionts or pathogens. Bacteria from this group have been found in deep-sea hydrothermal vents and cold seep habitats. The next phylum described is chlamydias. All members of this group are obligate intracellular parasites of animal cells. Cells walls lack peptidoglycan. Micrograph shows a pap smear of cells infected with Chlamydia trachomatis. Chlamydia infection is the most common sexually transmitted disease and can lead to blindness. All members of the phylum Spirochetes have spiral-shaped cells. Most are free-living anaerobes, but some are pathogenic. Flagella run lengthwise in the periplasmic space between the inner and outer membrane. Representative species include Treponema pallidum, the causative agent of syphilis and Borrelia burgdorferi, the causative agent of Lyme disease Micrograph shows corkscrew-shaped Trepanema pallidum, about 1 micron across. Bacteria in the phylum Cyanobacteria, also known as blue-green algae, obtain their energy through photosynthesis. They are ubiquitous, found in terrestrial, marine, and freshwater environments. Eukaryotic chloroplasts are thought be derived from bacteria in this group. The cyanobacterium Prochlorococcus is believed to be the most abundant photosynthetic organism on earth, responsible for generating half the world’s oxygen. Micrograph shows a long, thin rod-shaped species called Phormidium. Gram-positive Bacteria have a thick cell wall and lack an outer membrane. Soil-dwelling members of this subgroup decompose organic matter. Some species cause disease. Representative species include Bacillus anthracis, which causes anthrax; Clostridium botulinum, which causes botulism; Clostridium difficile, which causes diarrhea during antibiotic therapy; Streptomyces, from which many antibiotics, including streptomyocin, are derived; and Mycoplasmas, the smallest known bacteria, which lack a cell wall. Some are free-living, and some are pathogenic. Micrograph shows Clostridium difficile, which are rod-shaped and about 3 microns long.

Phylum Proteobacteria is one of up to 52 bacteria phyla. Proteobacteria is further subdivided into five classes, Alpha through Epsilon. (credit “Rickettsia rickettsia”: modification of work by CDC; credit “Spirillum minus”: modification of work by Wolframm Adlassnig; credit “Vibrio cholera”: modification of work by Janice Haney Carr, CDC; credit “Desulfovibrio vulgaris”: modification of work by Graham Bradley; credit “Campylobacter”: modification of work by De Wood, Pooley, USDA, ARS, EMU; scale-bar data from Matt Russell)

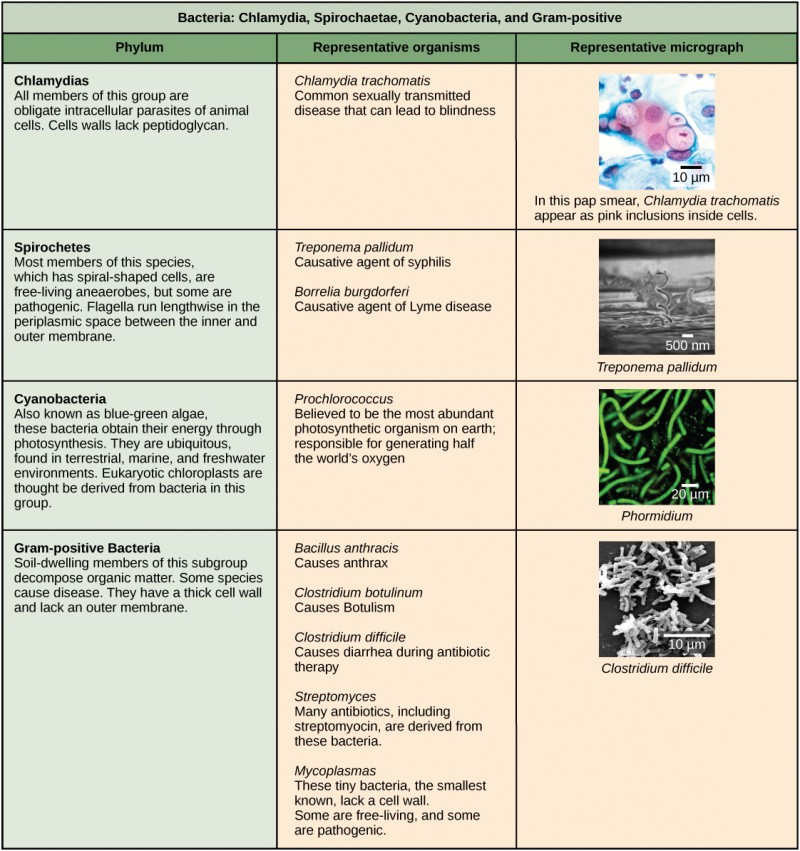

Chlamydia, Spirochetes, Cyanobacteria, and Gram-positive bacteria are described in this table. Note that bacterial shape is not phylum-dependent; bacteria within a phylum may be cocci, rod-shaped, or spiral. (credit “Chlamydia trachomatis”: modification of work by Dr. Lance Liotta Laboratory, NCI; credit “Treponema pallidum”: modification of work by Dr. David Cox, CDC; credit “Phormidium”: modification of work by USGS; credit “Clostridium difficile”: modification of work by Lois S. Wiggs, CDC; scale-bar data from Matt Russell)

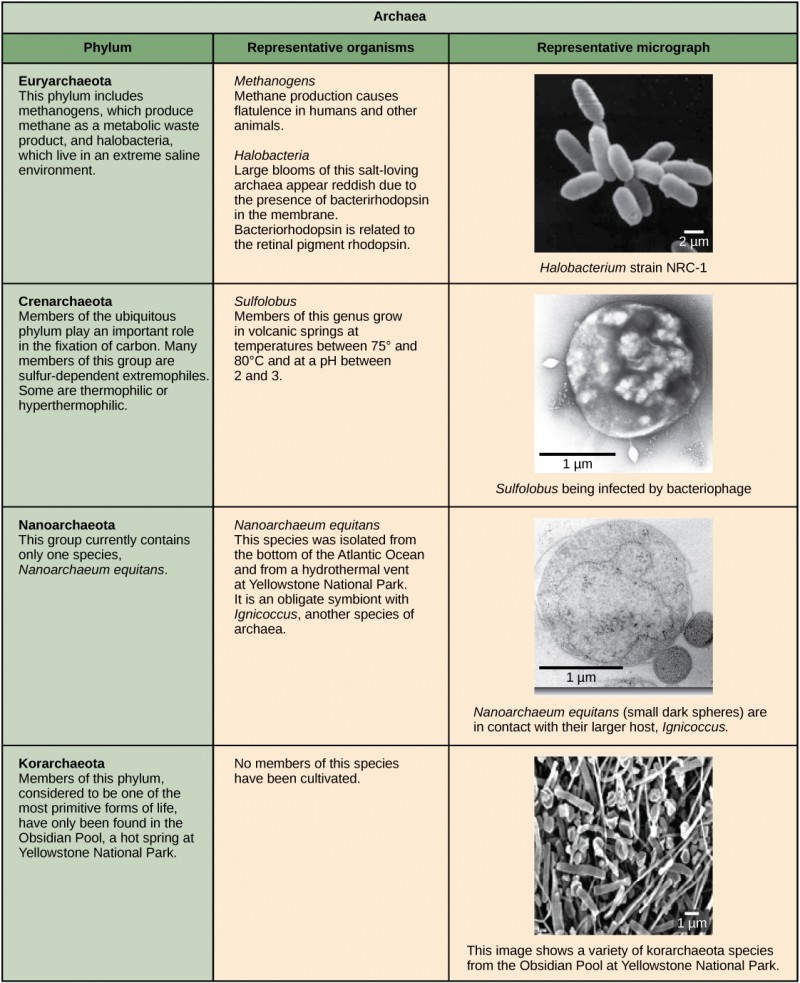

Characteristics of the four phyla of archaea are described. Euryarchaeotes includes methanogens, which produce methane as a metabolic waste product, and halobacteria, which live in an extreme saline environment. Methanogens cause flatulence in humans and other animals. Halobacteria can grow in large blooms that appear reddish, due to the presence of bacterirhodopsin in the membrane. Bacteriorhodopsin is related to the retinal pigment rhodopsin. Micrograph shows rod-shaped Halobacterium. Members of the ubiquitous Crenarchaeotes phylum play an important role in the fixation of carbon. Many members of this group are sulfur-dependent extremophiles. Some are thermophilic or hyperthermophilic. Micrograph shows cocci-shaped Sulfolobus, a genus which grows in volcanic springs at temperatures between 75° and 80°C and at a pH between 2 and 3. The phylum Nanoarchaeotes currently contains only one species, Nanoarchaeum equitans, which has been isolated from the bottom of the Atlantic Ocean, and from the a hydrothermal vent at Yellowstone National Park. It is an obligate symbiont with Ignococcus, another species of archaebacteria. Micrograph shows two small, round N. equitans cells attached to a larger Ignococcus cell. Korarchaeotes are considered to be one of the most primitive forms of life and so far have only been found in the Obsidian Pool, a hot spring at Yellowstone National Park. Micrograph shows a variety of specimens from this group which vary in shape.

Archaea are separated into four phyla: the Korarchaeota, Euryarchaeota, Crenarchaeota, and Nanoarchaeota. (credit “Halobacterium”: modification of work by NASA; credit “Nanoarchaeotum equitans”: modification of work by Karl O. Stetter; credit “korarchaeota”: modification of work by Office of Science of the U.S. Dept. of Energy; scale-bar data from Matt Russell)

The Plasma Membrane

The plasma membrane is a thin lipid bilayer (6 to 8 nanometers) that completely surrounds the cell and separates the inside from the outside. Its selectively permeable nature keeps ions, proteins, and other molecules within the cell and prevents them from diffusing into the extracellular environment, while other molecules may move through the membrane. Recall that the general structure of a cell membrane is a phospholipid bilayer composed of two layers of lipid molecules. In archaeal cell membranes, isoprene (phytanyl) chains linked to glycerol replace the fatty acids linked to glycerol in bacterial membranes. Some archaeal membranes are lipid monolayers instead of bilayers (the figure above).

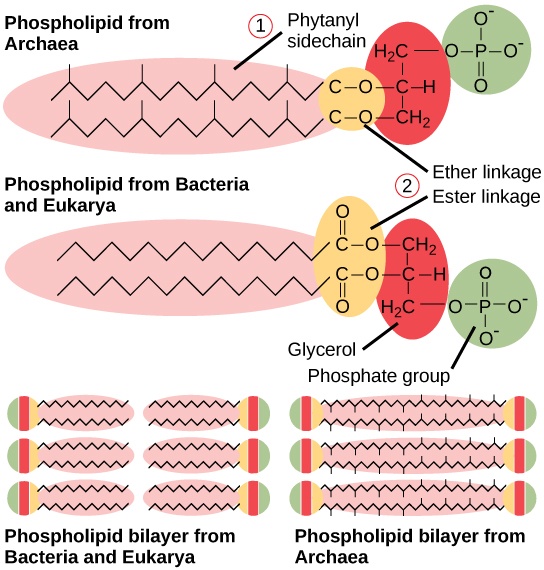

This illustration compares phospholipids from Bacteria and Eukarya to those from Archaea. In Bacteria and Eukarya, fatty acids are attached to glycerol by an ester linkage, while in Archaea, isoprene chains are linked to glycerol by an ether linkage. In the ester linkage, the first carbon in the fatty acid chain has an oxygen double-bonded to it, whereas in the ether linkage, it does not. In Archaea, the isoprene chains have methyl groups branching off from them, whereas such branches are absent in Bacteria and Eukarya. Both types of phospholipids result in similar lipid bilayers.

Archaeal phospholipids differ from those found in Bacteria and Eukarya in two ways. First, they have branched phytanyl sidechains instead of linear ones. Second, an ether bond instead of an ester bond connects the lipid to the glycerol.

The Cell Wall

The cytoplasm of prokaryotic cells has a high concentration of dissolved solutes. Therefore, the osmotic pressure within the cell is relatively high. The cell wall is a protective layer that surrounds some cells and gives them shape and rigidity. It is located outside the cell membrane and prevents osmotic lysis (bursting due to increasing volume). The chemical composition of the cell walls varies between archaea and bacteria, and also varies between bacterial species.

Bacterial cell walls contain peptidoglycan, composed of polysaccharide chains that are cross-linked by unusual peptides containing both L- and D-amino acids including D-glutamic acid and D-alanine. Proteins normally have only L-amino acids; as a consequence, many of our antibiotics work by mimicking D-amino acids and therefore have specific effects on bacterial cell wall development. There are more than 100 different forms of peptidoglycan. S-layer (surface layer) proteins are also present on the outside of cell walls of both archaea and bacteria.

Bacteria are divided into two major groups: Gram positive and Gram negative, based on their reaction to Gram staining. Note that all Gram-positive bacteria belong to one phylum; bacteria in the other phyla (Proteobacteria, Chlamydias, Spirochetes, Cyanobacteria, and others) are Gram-negative. The Gram staining method is named after its inventor, Danish scientist Hans Christian Gram (1853–1938). The different bacterial responses to the staining procedure are ultimately due to cell wall structure. Gram-positive organisms typically lack the outer membrane found in Gram-negative organisms (see the figure above).

Up to 90 percent of the cell wall in Gram-positive bacteria is composed of peptidoglycan, and most of the rest is composed of acidic substances called teichoic acids. Teichoic acids may be covalently linked to lipids in the plasma membrane to form lipoteichoic acids. Lipoteichoic acids anchor the cell wall to the cell membrane. Gram-negative bacteria have a relatively thin cell wall composed of a few layers of peptidoglycan (only 10 percent of the total cell wall), surrounded by an outer envelope containing lipopolysaccharides (LPS) and lipoproteins. This outer envelope is sometimes referred to as a second lipid bilayer. The chemistry of this outer envelope is very different, however, from that of the typical lipid bilayer that forms plasma membranes.

Art Connection

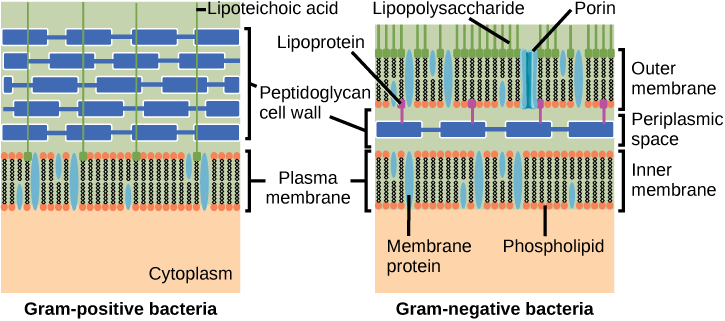

The left illustration shows the cell wall of Gram-positive bacteria. The cell wall is a thick layer of peptidoglycan that exists outside the plasma membrane. A long, thin molecule called lipoteichoic acid anchors the cell wall to the cell membrane. The right illustration shows Gram-negative bacteria. In Gram-negative bacteria, a thin peptidoglycan cell wall is sandwiched between an outer and an inner plasma membrane. The space between the two membranes is called the periplasmic space. Lipoproteins anchor the cell wall to the outer membrane. Lipopolysaccharides protrude from the outer membrane. Porins are proteins in the outer membrane that allow entry of substances.

Bacteria are divided into two major groups: Gram positive and Gram negative. Both groups have a cell wall composed of peptidoglycan: in Gram-positive bacteria, the wall is thick, whereas in Gram-negative bacteria, the wall is thin. In Gram-negative bacteria, the cell wall is surrounded by an outer membrane that contains lipopolysaccharides and lipoproteins. Porins are proteins in this cell membrane that allow substances to pass through the outer membrane of Gram-negative bacteria. In Gram-positive bacteria, lipoteichoic acid anchors the cell wall to the cell membrane. (credit: modification of work by "Franciscosp2"/Wikimedia Commons)

Which of the following statements is true?

Gram-positive bacteria have a single cell wall anchored to the cell membrane by lipoteichoic acid.
Porins allow entry of substances into both Gram-positive and Gram-negative bacteria.
The cell wall of Gram-negative bacteria is thick, and the cell wall of Gram-positive bacteria is thin.
Gram-negative bacteria have a cell wall made of peptidoglycan, whereas Gram-positive bacteria have a cell wall made of lipoteichoic acid.

Answer

Gram-positive bacteria have a single cell wall anchored to the cell membrane by lipoteichoic acid.

Archaean cell walls do not have peptidoglycan. There are four different types of Archaean cell walls. One type is composed of pseudopeptidoglycan, which is similar to peptidoglycan in morphology but contains different sugars in the polysaccharide chain. The other three types of cell walls are composed of polysaccharides, glycoproteins, or pure protein.

Structural Differences and Similarities between Bacteria and Archaea
Structural Characteristic	Bacteria	Archaea
Cell type	Prokaryotic	Prokaryotic
Cell morphology	Variable	Variable
Cell wall	Contains peptidoglycan	Does not contain peptidoglycan
Cell membrane type	Lipid bilayer	Lipid bilayer or lipid monolayer
Plasma membrane lipids	Fatty acids	Phytanyl groups
