<h2>Rutherford's Alpha-Particle Scattering Experiment</h2>
<p>Radioactive <a data-lesson="elements" data-subject="chemistry" data-tutorial="classification-of-matter" href="https://app.ulearngo.com/chemistry/classification-of-matter/elements">elements</a> emit different types of particles. Some of these are positively charged alpha (α) particles. Rutherford wanted to find out where the positive charge in an atom is. He carried out a series of experiments where he bombarded sheets of gold foil with alpha particles (since these would be repelled by the positive nucleus). A simplified diagram of his experiment is shown in the figure below.</p>

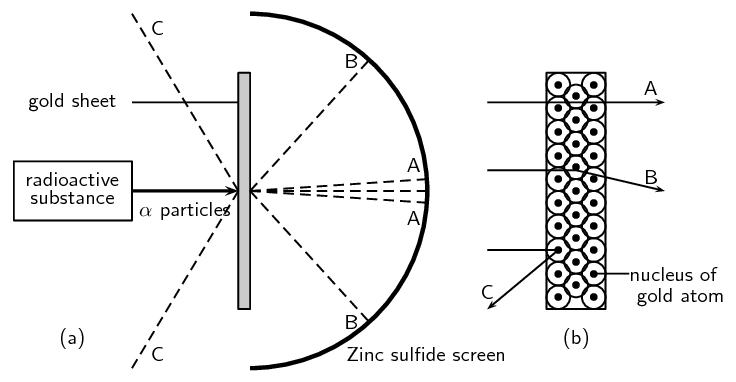

<div class="wp-caption alignnone" style="width: 736px"><img alt="88ce07cc405c073dc88f0780203461f2.png" height="382" src="https://data.ulearngo.com/assets/000a8531-e094-4807-84c1-8308d0810aa0" width="736"/><p class="wp-caption-text">Rutherford's gold foil experiment. Figure (a) shows the path of the α particles after they hit the gold sheet. Figure (b) shows the arrangement of atoms in the gold sheets and the path of the α particles in relation to this.</p></div>
<p>Rutherford set up his experiment so that a beam of alpha particles was directed at the gold sheets. Behind the gold sheets was a screen made of <a data-lesson="chemical-reduction" data-subject="chemistry" data-tutorial="metals-metalloids-nonmetals" href="https://app.ulearngo.com/chemistry/metals-metalloids-nonmetals/chemical-reduction">zinc</a> sulfide. This screen allowed Rutherford to see where the alpha particles were landing. Rutherford knew that the <em>electrons</em> in the gold atoms would not really affect the path of the alpha particles, because the mass of an <a data-lesson="energy-electron-bohr-orbit" data-subject="chemistry" data-tutorial="electronic-structure-of-atoms" href="https://app.ulearngo.com/chemistry/electronic-structure-of-atoms/energy-electron-bohr-orbit">electron</a> is so much smaller than that of a proton. He reasoned that the positively charged <em>protons</em> would be the ones to <em>repel</em> the positively charged alpha particles and alter their path.</p>
<p>If Thomson's <a data-lesson="discussion-on-atomic-models" data-subject="chemistry" data-tutorial="chemistry-essential-ideas" href="https://app.ulearngo.com/chemistry/chemistry-essential-ideas/discussion-on-atomic-models">model</a> of the atom was correct then Rutherford would have observed mostly path A in the figure above. (A represents alpha particles that pass straight through the positive nucleus.) He would not have observed any deflection of the alpha particles. What he found instead was that while most of the alpha particles passed through the foil undisturbed and could be detected on the screen directly behind the foil (path A), some of the particles ended up being slightly deflected onto other parts of the screen (path B)! The fact that some particles were deflected suggested that the positive charge was concentrated in one part of the atom only.</p>
<p>Through this experiment he concluded that <a data-lesson="the-nucleus-2" data-subject="chemistry" data-tutorial="chemistry-essential-ideas" href="https://app.ulearngo.com/chemistry/chemistry-essential-ideas/the-nucleus-2">the nucleus</a> of the atom is positively charged and situated in the middle of the atom.</p>
