<h2>Occurrence, Preparation, and Properties of Nitrogen</h2>
Most pure nitrogen comes from the fractional distillation of liquid air. The atmosphere consists of 78% nitrogen by volume. This means there are more than 20 million tons of nitrogen over every square mile of the earth’s surface. Nitrogen is a component of proteins and of the genetic material (DNA/RNA) of all plants and animals.
Under ordinary conditions, nitrogen is a colorless, odorless, and tasteless gas. It boils at 77 K and freezes at 63 K. Liquid nitrogen is a useful coolant because it is inexpensive and has a low boiling point. Nitrogen is very unreactive because of the very strong triple bond between the nitrogen atoms.
The only common <a data-lesson="reactions-2" data-subject="chemistry" data-tutorial="metals-metalloids-nonmetals" href="https://app.ulearngo.com/chemistry/metals-metalloids-nonmetals/reactions-2">reactions</a> at room temperature occur with lithium to form Li3N, with certain <a data-lesson="occurrence-preparation-and-properties-of-transition-metals-and-their-compounds" data-subject="chemistry" data-tutorial="transition-metals" href="https://app.ulearngo.com/chemistry/transition-metals/occurrence-preparation-and-properties-of-transition-metals-and-their-compounds">transition metal</a> complexes, and with hydrogen or oxygen in nitrogen-fixing bacteria. The general lack of reactivity of nitrogen makes the remarkable ability of some bacteria to synthesize nitrogen compounds using atmospheric nitrogen gas as the source one of the most exciting chemical events on our planet. This process is one type of nitrogen fixation. See the <a data-lesson="nitrogen-fixation" data-subject="chemistry" data-tutorial="metals-metalloids-nonmetals" href="https://app.ulearngo.com/chemistry/metals-metalloids-nonmetals/nitrogen-fixation">next lesson</a> for some information on nitrogen fixation.
In this case, <a data-lesson="nitrogen-fixation" data-subject="chemistry" data-tutorial="metals-metalloids-nonmetals" href="https://app.ulearngo.com/chemistry/metals-metalloids-nonmetals/nitrogen-fixation">nitrogen fixation</a> is the process where <a data-lesson="nitrogen-fixation" data-subject="chemistry" data-tutorial="metals-metalloids-nonmetals" href="https://app.ulearngo.com/chemistry/metals-metalloids-nonmetals/nitrogen-fixation">organisms</a> convert atmospheric nitrogen into biologically useful chemicals. Nitrogen fixation also occurs when lightning passes through air, causing <a data-lesson="summarizing-occurrence-preparation-and-properties-of-nitrogen" data-subject="chemistry" data-tutorial="metals-metalloids-nonmetals" href="https://app.ulearngo.com/chemistry/metals-metalloids-nonmetals/summarizing-occurrence-preparation-and-properties-of-nitrogen">molecular nitrogen</a> to react with oxygen to form nitrogen oxides, which are then carried down to the soil.
</div>
Large volumes of atmospheric nitrogen are necessary for making ammonia—the principal starting material used for preparation of large quantities of other nitrogen-containing compounds. Most other uses for elemental nitrogen depend on its inactivity. It is helpful when a chemical process requires an inert atmosphere.
Canned foods and luncheon meats cannot oxidize in a pure nitrogen atmosphere, so they retain a better flavor and color, and spoil less rapidly, when sealed in nitrogen instead of air. This technology allows fresh produce to be available year-round, regardless of growing season.
There are compounds with nitrogen in all of its oxidation states from 3− to 5+. Much of the <a data-lesson="introducing-chemistry" data-subject="chemistry" data-tutorial="chemistry-essential-ideas" href="https://app.ulearngo.com/chemistry/chemistry-essential-ideas/introducing-chemistry">chemistry</a> of nitrogen involves oxidation-reduction reactions. Some active metals (such as alkali metals and alkaline earth metals) can reduce nitrogen to form metal nitrides. In the remainder of this section, we will examine nitrogen-oxygen chemistry.
There are well-characterized nitrogen oxides in which nitrogen exhibits each of its positive <a data-lesson="oxidation-numbers" data-subject="chemistry" data-tutorial="acid-base-redox-reactions" href="https://app.ulearngo.com/chemistry/acid-base-redox-reactions/oxidation-numbers">oxidation numbers</a> from 1+ to 5+. When ammonium nitrate is carefully heated, nitrous oxide (dinitrogen oxide) and water <a data-lesson="vaporization-and-condensation" data-subject="chemistry" data-tutorial="liquids-and-solids" href="https://app.ulearngo.com/chemistry/liquids-and-solids/vaporization-and-condensation">vapor</a> form. Stronger heating generates nitrogen gas, oxygen gas, and water vapor. No one should ever attempt this reaction—it can be very explosive.
In 1947, there was a major ammonium nitrate explosion in Texas City, Texas, and, in 2013, there was another major explosion in West, Texas. In the last 100 years, there were nearly 30 similar disasters worldwide, resulting in the loss of numerous lives. In this oxidation-reduction reaction, the nitrogen in the nitrate ion oxidizes the nitrogen in the ammonium ion. Nitrous oxide, shown in the figure below, is a colorless gas possessing a mild, pleasing odor and a sweet taste. It finds application as an anesthetic for minor operations, especially in dentistry, under the name “laughing gas.”

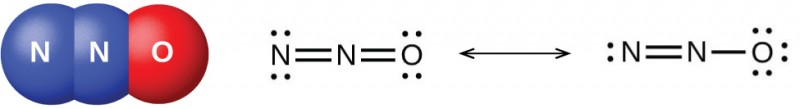

<div class="wp-caption alignnone" style="width: 800px"><img alt="A space-filling model of a molecule shows two blue atoms labeled “N” bonded to one another and to one red atom labeled “O.” Two Lewis structures are also shown and connected by a double-headed arrow. The left image shows a nitrogen atom with two lone pairs of electrons double bonded to a second nitrogen atom. The second nitrogen atom is double-bonded to an oxygen atom that has two lone pairs of electrons. The right image shows a nitrogen atom with a lone pair of electrons double bonded to a second nitrogen atom. The second nitrogen atom is single bonded to an oxygen atom that has three lone pairs of electrons." height="109" src="https://data.ulearngo.com/assets/ac0e5ef4-b9c7-4225-bcdf-37c5492a4bf9" width="800"/>Nitrous oxide, N2O, is an anesthetic that has these molecular (left) and resonance (right) structures.</div>
Low yields of nitric oxide, NO, form when heating nitrogen and oxygen together. NO also forms when lightning passes through air during thunderstorms. Burning <a data-lesson="catalysts-do-not-affect-equilibrium" data-subject="chemistry" data-tutorial="basic-equilibrium-concepts" href="https://app.ulearngo.com/chemistry/basic-equilibrium-concepts/catalysts-do-not-affect-equilibrium">ammonia</a> is the commercial method of preparing nitric oxide. In the laboratory, the <a data-lesson="standard-reduction-potentials" data-subject="chemistry" data-tutorial="electrochemistry" href="https://app.ulearngo.com/chemistry/electrochemistry/standard-reduction-potentials">reduction</a> of nitric acid is the best method for preparing nitric oxide. When copper reacts with dilute nitric acid, nitric oxide is the principal reduction product:
\(\text{3Cu}(s)+{\text{8HNO}}_{3}(aq)\;⟶\;\text{2NO}(g)+\text{3Cu}{({\text{NO}}_{3})}_{2}(aq)+{\text{4H}}_{2}\text{O}(l)\)
Gaseous nitric oxide is the most thermally stable of the nitrogen oxides and is the simplest known thermally stable molecule with an <a data-lesson="magnetic-moments-of-molecules-and-ions" data-subject="chemistry" data-tutorial="transition-metals" href="https://app.ulearngo.com/chemistry/transition-metals/magnetic-moments-of-molecules-and-ions">unpaired</a> electron. It is one of the air pollutants generated by internal <a data-lesson="enthalpy-of-combustion" data-subject="chemistry" data-tutorial="thermochemistry" href="https://app.ulearngo.com/chemistry/thermochemistry/enthalpy-of-combustion">combustion</a> engines, resulting from the reaction of atmospheric nitrogen and oxygen during the combustion process.
At room temperature, nitric oxide is a colorless gas consisting of diatomic molecules. As is often the case with molecules that contain an unpaired electron, two molecules combine to form a dimer by pairing their unpaired electrons to form a bond. Liquid and solid NO both contain N2O2 dimers, like that shown in the figure below. Most substances with unpaired electrons exhibit color by absorbing visible light; however, NO is colorless because the absorption of light is not in the visible region of the spectrum.

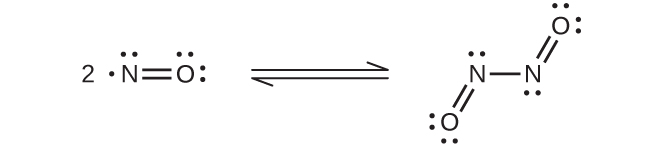

<div class="wp-caption alignnone" style="width: 650px"><img alt="Two Lewis structures are shown and connected by a double-headed arrow. The left image shows a number two next to a nitrogen atom with a lone electron and a lone pair of electrons. The nitrogen atom is double-bonded to an oxygen atom with two lone pairs of electrons. The right image shows two nitrogen atoms, each with one lone pair of electrons, single bonded to one another. Each is also double bonded to an oxygen atom with two lone pairs of electrons." height="147" src="https://data.ulearngo.com/assets/d65293fc-7d5f-4c9d-a8fc-2c2e0a930fa6" width="650"/>This shows the equilibrium between NO and N2O2. The molecule, N2O2, absorbs light.</div>
Cooling a mixture of equal parts nitric oxide and nitrogen dioxide to −21 °C produces dinitrogen trioxide, a blue liquid consisting of N2O3 molecules (shown in the figure below). Dinitrogen trioxide exists only in the liquid and solid states. When heated, it reverts to a mixture of NO and NO2.

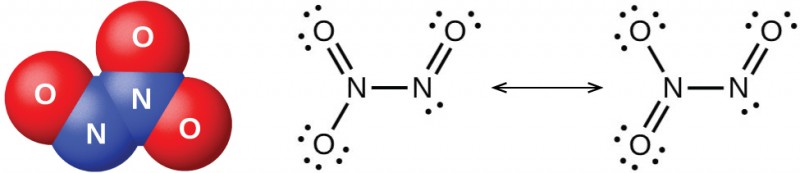

<div class="wp-caption alignnone" style="width: 800px"><img alt="A space-filling model of a molecule shows two blue atoms labeled, “N,” bonded to one another and to three red atoms labeled, “O.” Two Lewis structures are also shown and connected by a double-headed arrow. The left image shows two nitrogen atoms that are single bonded to one another. The left nitrogen is double bonded to an oxygen atom that has two lone pairs of electrons and single bonded to an oxygen with three lone pairs of electrons. The right nitrogen has one lone pair of electrons and is double bonded to an oxygen atom with two lone pairs of electrons. The right image shows two nitrogen atoms that are single bonded to one another. The right nitrogen is double bonded to an oxygen atom that has two lone pairs of electrons and single bonded to an oxygen atom with three lone pairs of electrons. The right nitrogen has one lone pair of electrons and is double bonded to an oxygen atom with two lone pairs of electrons." height="173" src="https://data.ulearngo.com/assets/2dcc3e8a-ca0e-4811-b2a3-9e86dd81af81" width="800"/>Dinitrogen trioxide, N2O3, only exists in liquid or solid states and has these molecular (left) and resonance (right) structures.</div>
It is possible to prepare nitrogen dioxide in the laboratory by heating the nitrate of a heavy metal, or by the reduction of concentrated nitric acid with copper metal, as shown in the figure below. Commercially, it is possible to prepare nitrogen dioxide by oxidizing nitric oxide with air.
<div class="wp-caption alignnone" style="width: 800px"><img alt="Three photos are shown and connected by right-facing arrows. The left image shows a test tube in a clamp that holds a colorless solution and a wire held above it. The middle image shows a test tube in a clamp that holds a wire submerged in a pale green liquid and emitting a light brown gas. The right image shows a test tube in a clamp that holds a wire submerged in a dark green liquid and emitting a brown gas." height="279" src="https://data.ulearngo.com/assets/3eaff636-b815-464e-9b87-37b615ce86c2" width="800"/>The reaction of copper metal with concentrated HNO3 produces a solution of Cu(NO3)2 and brown fumes of NO2. (credit: modification of work by Mark Ott)</div>
The nitrogen dioxide molecule (illustrated in the figure below) contains an unpaired electron, which is responsible for its color and paramagnetism. It is also responsible for the dimerization of NO2. At low pressures or at high temperatures, nitrogen dioxide has a deep brown color that is due to the presence of the NO2 molecule. At low temperatures, the color almost entirely disappears as dinitrogen tetraoxide, N2O4, forms. At room temperature, an equilibrium exists:
\({\text{2NO}}_{2}(g)\;⇌\;{\text{N}}_{2}{\text{O}}_{4}(g)\phantom{\rule{5em}{0ex}}{K}_{P}=6.86\)

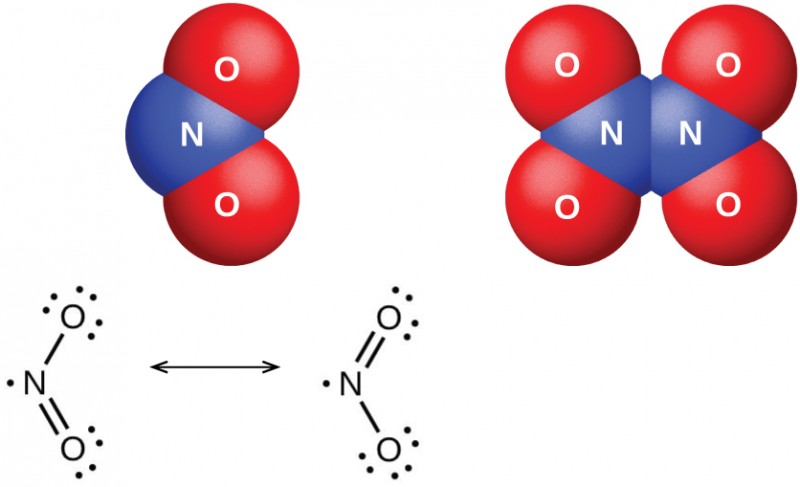

<div class="wp-caption alignnone" style="width: 800px"><img alt="Two space-filling models and two Lewis structures are shown. The left space-filling model shows a blue atom labeled, “N,” bonded to two red atoms labeled, “O,” while the right space-filling model shows two blue atoms labeled, “N,” each bonded to two red atoms labeled, “O.” The left Lewis structure shows a nitrogen atom with one lone electron single bonded to an oxygen atom with three lone pairs of electrons. The nitrogen atom is also double bonded to an oxygen atom with two lone pairs of electrons. The right structure, which is connected by a double-headed arrow to the first, is a diagram showing a similar Lewis structure, but the position of the double bond and the number of electron pairs on the oxygen atoms have switched." height="487" src="https://data.ulearngo.com/assets/d9d1292f-28ee-437d-9710-7a3b8d0fb75b" width="800"/>The molecular and resonance structures for nitrogen dioxide (NO2, left) and dinitrogen tetraoxide (N2O4, right) are shown.</div>
Dinitrogen pentaoxide, N2O5 (illustrated in the figure below), is a white solid that is formed by the dehydration of nitric acid by phosphorus(V) oxide (tetraphosphorus decoxide):
\({\text{P}}_{4}{\text{O}}_{10}(s)+{\text{4HNO}}_{3}(l)\;⟶\;{\text{4HPO}}_{3}(s)+{\text{2N}}_{2}{\text{O}}_{5}(s)\)
It is unstable above room temperature, decomposing to N2O4 and O2.

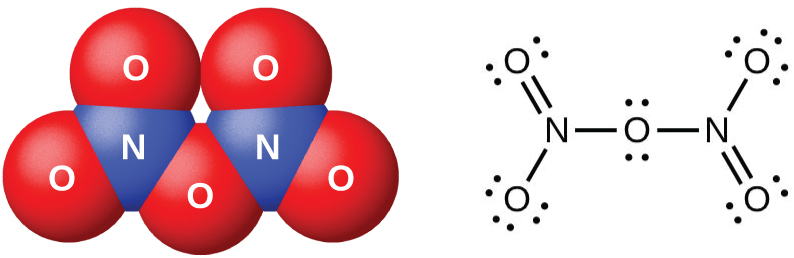

<div class="wp-caption alignnone" style="width: 794px"><img alt="A space-filling model and a Lewis structure are shown. The space-filling model shows two blue atoms labeled, “N,” each bonded to two red atoms labeled, “O,” with another red atom labeled, “O,” in between them. The Lewis structure shows a nitrogen atom single bonded to an oxygen atom with three lone pairs of electrons in a downward position and double bonded to an oxygen atom with two lone pairs of electrons in an upward position. This nitrogen is single bonded to an oxygen atom with two lone pairs of electrons. The oxygen atom is single bonded to another nitrogen atom which is single bonded to another oxygen atom with three lone pairs of electrons in an upward position. The second nitrogen atom is also double bonded to an oxygen atom with two lone pairs of electrons in a downward position." height="258" src="https://data.ulearngo.com/assets/dab14c74-5cbf-4f1c-af58-f6f4e74f2e4b" width="794"/>This image shows the molecular structure and one resonance structure of a molecule of dinitrogen pentaoxide, N2O5.</div>
The oxides of nitrogen(III), nitrogen(IV), and nitrogen(V) react with water and form nitrogen-containing oxyacids. Nitrogen(III) oxide, N2O3, is the anhydride of nitrous acid; HNO2 forms when N2O3 reacts with water. There are no stable oxyacids containing nitrogen with an oxidation state of 4+; therefore, nitrogen(IV) oxide, NO2, disproportionates in one of two ways when it reacts with water. In cold water, a mixture of HNO2 and HNO3 forms. At higher temperatures, HNO3 and NO will form. Nitrogen(V) oxide, N2O5, is the anhydride of nitric acid; HNO3 is produced when N2O5 reacts with water:
\({\text{N}}_{2}{\text{O}}_{5}(s)+{\text{H}}_{2}\text{O}(l)\;⟶\;{\text{2HNO}}_{3}(aq)\)
The nitrogen oxides exhibit extensive oxidation-reduction behavior. Nitrous oxide resembles oxygen in its behavior when heated with combustible substances. N2O is a strong oxidizing agent that decomposes when heated to form nitrogen and oxygen. Because one-third of the gas liberated is oxygen, nitrous oxide supports combustion better than air (one-fifth oxygen). A glowing splinter bursts into <a data-lesson="importance-of-understanding-configuration" data-subject="chemistry" data-tutorial="chemistry-essential-ideas" href="https://app.ulearngo.com/chemistry/chemistry-essential-ideas/importance-of-understanding-configuration">flame</a> when thrust into a bottle of this gas. Nitric oxide acts both as an oxidizing agent and as a reducing agent. For example:
\(\text{oxidizing agent:}\;{\text{P}}_{4}(s)+\text{6NO}(g)\;⟶\;{\text{P}}_{4}{\text{O}}_{6}(s)+{\text{3N}}_{2}(g)\)
\(\text{reducing agent:}\;{\text{Cl}}_{2}(g)+\text{2NO}(g)\;⟶\;\text{2ClNO}(g)\)
Nitrogen dioxide (or dinitrogen tetraoxide) is a good oxidizing agent. For example:
\({\text{NO}}_{2}(g)+\text{CO}(g)\;⟶\;\text{NO}(g)+{\text{CO}}_{2}(g)\)
\({\text{NO}}_{2}(g)+\text{2HCl}(aq)\;⟶\;\text{NO}(g)+{\text{Cl}}_{2}(g)+{\text{H}}_{2}\text{O}(l)\)
