Work Done in Pumping

Consider the work done to pump water (or some other liquid) out of a tank. Pumping problems are a little more complicated than spring problems because many of the calculations depend on the shape and size of the tank. In addition, instead of being concerned about the work done to move a single mass, we are looking at the work done to move a volume of water, and it takes more work to move the water from the bottom of the tank than it does to move the water from the top of the tank.

We examine the process in the context of a cylindrical tank, then look at a couple of examples using tanks of different shapes. Assume a cylindrical tank of radius \(4\) m and height \(10\) m is filled to a depth of 8 m. How much work does it take to pump all the water over the top edge of the tank?

The first thing we need to do is define a frame of reference. We let \(x\) represent the vertical distance below the top of the tank. That is, we orient the \(x -\text{axis}\) vertically, with the origin at the top of the tank and the downward direction being positive (see the following figure).

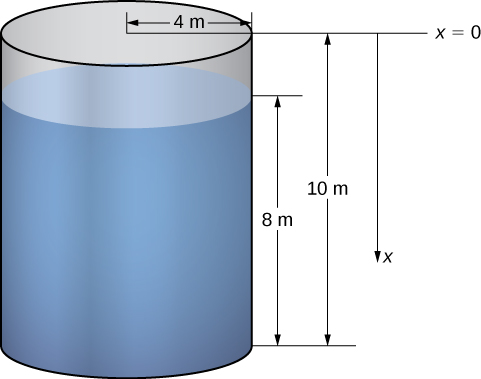

Figure 6.52 How much work is needed to empty a tank partially filled with water?

Using this coordinate system, the water extends from \(x = 2\) to \(x = 10 .\) Therefore, we partition the interval \(\left[\right. 2 , 1 0 \left]\right.\) and look at the work required to lift each individual “layer” of water. So, for \(i = 0 , 1 , 2 ,\ldots , n ,\) let \(P = \left{\right. x_{i} \left.\right}\) be a regular partition of the interval \(\left[\right. 2 , 1 0 \left]\right. ,\) and for \(i = 1 , 2 ,\ldots , n ,\) choose an arbitrary point \(x_{i}^{\star} \in \left[\right. x_{i - 1} , x_{i} \left]\right. .\) Figure 6.53 shows a representative layer.

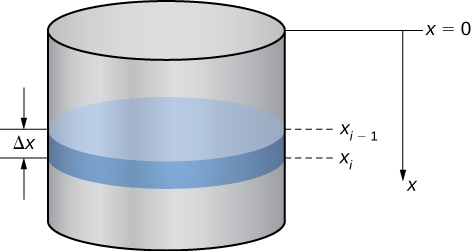

Figure 6.53 A representative layer of water.

In pumping problems, the force required to lift the water to the top of the tank is the force required to overcome gravity, so it is equal to the weight of the water. Given that the weight-density of water is \(9800\) N/m³, or \(62.4\) lb/ft³, calculating the volume of each layer gives us the weight. In this case, we have

Then, the force needed to lift each layer is

Note that this step becomes a little more difficult if we have a noncylindrical tank. We look at a noncylindrical tank in the next example.

We also need to know the distance the water must be lifted. Based on our choice of coordinate systems, we can use \(x_{i}^{\star}\) as an approximation of the distance the layer must be lifted. Then the work to lift the \(i \text{th}\) layer of water \(W_{i}\) is approximately

Adding the work for each layer, we see the approximate work to empty the tank is given by

This is a Riemann sum, so taking the limit as \(n \rightarrow \infty ,\) we get

The work required to empty the tank is approximately 23,650,000 J.

For pumping problems, the calculations vary depending on the shape of the tank or container. The following problem-solving strategy lays out a step-by-step process for solving pumping problems.

We now apply this problem-solving strategy in an example with a noncylindrical tank.

Example 6.26

A Pumping Problem with a Noncylindrical Tank

Assume a tank in the shape of an inverted cone, with height \(12\) ft and base radius \(4\) ft. The tank is full to start with, and water is pumped over the upper edge of the tank until the height of the water remaining in the tank is \(4\) ft. How much work is required to pump out that amount of water?

Solution

The tank is depicted in Figure 6.54. As we did in the example with the cylindrical tank, we orient the \(x -\text{axis}\) vertically, with the origin at the top of the tank and the downward direction being positive (step 1).

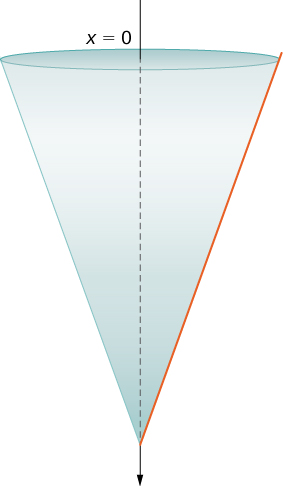

Figure 6.54 A water tank in the shape of an inverted cone.

The tank starts out full and ends with \(4\) ft of water left, so, based on our chosen frame of reference, we need to partition the interval \(\left[\right. 0 , 8 \left]\right. .\) Then, for \(i = 0 , 1 , 2 ,\ldots , n ,\) let \(P = \left{\right. x_{i} \left.\right}\) be a regular partition of the interval \(\left[\right. 0 , 8 \left]\right. ,\) and for \(i = 1 , 2 ,\ldots , n ,\) choose an arbitrary point \(x_{i}^{\star} \in \left[\right. x_{i - 1} , x_{i} \left]\right. .\) We can approximate the volume of a layer by using a disk, then use similar triangles to find the radius of the disk (see the following figure).

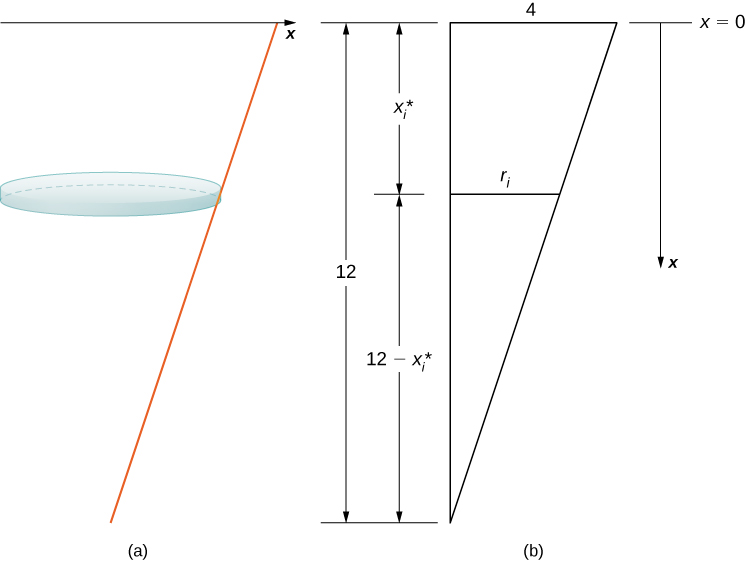

Figure 6.55 Using similar triangles to express the radius of a disk of water.

From properties of similar triangles, we have

\[\begin{aligned} \frac{r_{i}}{12 - x_{i}^{\star}} & = & \frac{4}{12} = \frac{1}{3} \\ 3 r_{i} & = & 12 - x_{i}^{\star} \\ r_{i} & = & \frac{12 - x_{i}^{\star}}{3} \\ & = & 4 - \frac{x_{i}^{\star}}{3} . \end{aligned}\]

Then the volume of the disk is

\[V_{i} = \pi \left(\right. 4 - \frac{x_{i}^{\star}}{3} \left.\right)^{2} \Delta x (\text{step 2}).\]

The weight-density of water is \(62.4\) lb/ft³, so the force needed to lift each layer is approximately

\[F_{i} \approx 62.4 \pi \left(\right. 4 - \frac{x_{i}^{\star}}{3} \left.\right)^{2} \Delta x (\text{step 3}).\]

Based on the diagram, the distance the water must be lifted is approximately \(x_{i}^{\star}\) feet (step 4), so the approximate work needed to lift the layer is

\[W_{i} \approx 62.4 \pi x_{i}^{\star} \left(\right. 4 - \frac{x_{i}^{\star}}{3} \left.\right)^{2} \Delta x (\text{step 5}).\]

Summing the work required to lift all the layers, we get an approximate value of the total work:

\[W = \sum_{i = 1}^{n} W_{i} \approx \sum_{i = 1}^{n} 62.4 \pi x_{i}^{\star} \left(\right. 4 - \frac{x_{i}^{\star}}{3} \left.\right)^{2} \Delta x (\text{step 6}).\]

Taking the limit as \(n \rightarrow \infty ,\) we obtain

\[\begin{aligned} W & = \underset{n \rightarrow \infty}{\text{lim}} \sum_{i = 1}^{n} 62.4 \pi x_{i}^{\star} \left(\left(\right. 4 - \frac{x_{i}^{\star}}{3} \left.\right)\right)^{2} \Delta x \\ & = \int_{0}^{8} 62.4 \pi x \left(\right. 4 - \frac{x}{3} \left.\right)^{2} d x \\ & = 62.4 \pi \int_{0}^{8} x \left(\right. 16 - \frac{8 x}{3} + \frac{x^{2}}{9} \left.\right) d x = 62.4 \pi \int_{0}^{8} \left(\right. 16 x - \frac{8 x^{2}}{3} + \frac{x^{3}}{9} \left.\right) d x \\ & = 62.4 \pi \left(\left[\right. 8 x^{2} - \frac{8 x^{3}}{9} + \frac{x^{4}}{36} \left]\right. \left|\right.\right)_{0}^{8} = 10,649.6 \pi \approx 33,456.7. \end{aligned}\]

It takes approximately \(33,450\) ft-lb of work to empty the tank to the desired level.
