Using the Properties of Angles

So far in this tutorial, we have focused on solving word problems, which are similar to many real-world applications of algebra. In the next few topics, we will apply our problem-solving strategies to some common geometry problems.

Using the Properties of Angles

Are you familiar with the phrase ‘do a \(180\text{’?}\) It means to make a full turn so that you face the opposite direction. It comes from the fact that the measure of an angle that makes a straight line is \(180\) degrees. See the figure below.

The image is a straight line with an arrow on each end. There is a dot in the center. There is an arrow pointing from one side of the dot to the other, and the angle is marked as 180 degrees.

An angle is formed by two rays that share a common endpoint. Each ray is called a side of the angle and the common endpoint is called the vertex. An angle is named by its vertex. In the figure below, \(\text{∠}A\) is the angle with vertex at point \(A.\) The measure of \(\text{∠}A\) is written \(m\angle A.\)

The image is an angle made up of two rays. The angle is labeled with letter A.

\(\angle A\) is the angle with vertex at \(\text{point}\phantom{\rule{0.2em}{0ex}}A.\)

We measure angles in degrees, and use the symbol \(°\) to represent degrees. We use the abbreviation \(m\) to for the measure of an angle. So if \(\text{∠}A\) is \(\text{27°},\) we would write \(m\angle A=27.\)

If the sum of the measures of two angles is \(\text{180°},\) then they are called supplementary angles. In the figure below, each pair of angles is supplementary because their measures add to \(\text{180°}.\) Each angle is the supplement of the other.

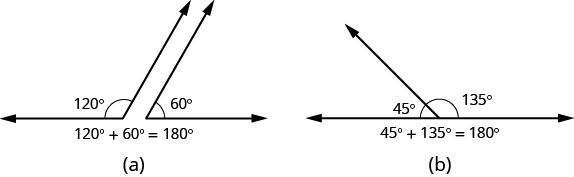

Part a shows a 120 degree angle next to a 60 degree angle. Together, the angles form a straight line. Below the image, it reads 120 degrees plus 60 degrees equals 180 degrees. Part b shows a 45 degree angle attached to a 135 degree angle. Together, the angles form a straight line. Below the image, it reads 45 degrees plus 135 degrees equals 180 degrees.

The sum of the measures of supplementary angles is \(\text{180°}.\)

If the sum of the measures of two angles is \(\text{90°},\) then the angles are complementary angles. In the figure below, each pair of angles is complementary, because their measures add to \(\text{90°}.\) Each angle is the complement of the other.

Part a shows a 50 degree angle next to a 40 degree angle. Together, the angles form a right angle. Below the image, it reads 50 degrees plus 40 degrees equals 90 degrees. Part b shows a 60 degree angle attached to a 30 degree angle. Together, the angles form a right angle. Below the image, it reads 60 degrees plus 30 degrees equals 90 degrees.

The sum of the measures of complementary angles is \(\text{90°}.\)

Definition: Supplementary and Complementary Angles

If the sum of the measures of two angles is \(\text{180°},\) then the angles are supplementary.

If \(\text{∠}A\) and \(\text{∠}B\) are supplementary, then \(m\text{∠}A+m\text{∠}B=\text{180°.}\)

If the sum of the measures of two angles is \(\text{90°},\) then the angles are complementary.

If \(\text{∠}A\) and \(\text{∠}B\) are complementary, then \(m\text{∠}A+m\text{∠}B=\text{90°.}\)

In this section and the next, you will be introduced to some common geometry formulas. We will adapt our Problem Solving Strategy for Geometry Applications. The geometry formula will name the variables and give us the equation to solve.

In addition, since these applications will all involve geometric shapes, it will be helpful to draw a figure and then label it with the information from the problem. We will include this step in the Problem Solving Strategy for Geometry Applications.

How to Use a Problem Solving Strategy for Geometry Applications.

Read the problem and make sure you understand all the words and ideas. Draw a figure and label it with the given information.
Identify what you are looking for.
Name what you are looking for and choose a variable to represent it.
Translate into an equation by writing the appropriate formula or model for the situation. Substitute in the given information.
Solve the equation using good algebra techniques.
Check the answer in the problem and make sure it makes sense.
Answer the question with a complete sentence.

The next example will show how you can use the Problem Solving Strategy for Geometry Applications to answer questions about supplementary and complementary angles.

Example

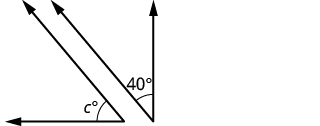

An angle measures \(\text{40°}.\) Find its supplement, and its complement.

Solution


Step 1. Read the problem. Draw the figure and label it with the given information.
Step 2. Identify what you are looking for.
Step 3. Name. Choose a variable to represent it.
Step 4. Translate. Write the appropriate formula for the situation and substitute in the given information.
Step 5. Solve the equation.
Step 6. Check:
Step 7. Answer the question.


Step 1. Read the problem. Draw the figure and label it with the given information.
Step 2. Identify what you are looking for.
Step 3. Name. Choose a variable to represent it.
Step 4. Translate. Write the appropriate formula for the situation and substitute in the given information.
Step 5. Solve the equation.
Step 6. Check:
Step 7. Answer the question.

Did you notice that the words complementary and supplementary are in alphabetical order just like \(90\) and \(180\) are in numerical order?

Example

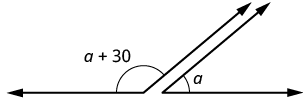

Two angles are supplementary. The larger angle is \(\text{30°}\) more than the smaller angle. Find the measure of both angles.

Solution

Step 1. Read the problem. Draw the figure and label it with the given information.
Step 2. Identify what you are looking for.
Step 3. Name. Choose a variable to represent it. The larger angle is 30° more than the smaller angle.
Step 4. Translate. Write the appropriate formula and substitute.
Step 5. Solve the equation.
Step 6. Check:
Step 7. Answer the question.
