Ionic Bonding in Solids

Ionic Bonding in Solids

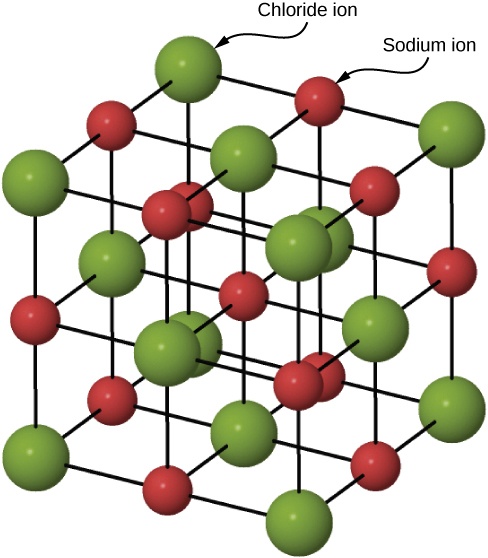

Many solids form by ionic bonding. A prototypical example is the sodium chloride crystal, as we discussed earlier. Electrons transfer from sodium atoms to adjacent chlorine atoms, since the valence electrons in sodium are loosely bound and chlorine has a large electron affinity. The positively charged sodium ions and negatively charged chlorine (chloride) ions organize into an extended regular array of atoms (this figure).

The charge distributions of the sodium and chloride ions are spherically symmetric, and the chloride ion is about two times the diameter of the sodium ion. The lowest energy arrangement of these ions is called the face-centered cubic (FCC) structure. In this structure, each ion is closest to six ions of the other species. The unit cell is a cube—an atom occupies the center and corners of each “face” of the cube. The attractive potential energy of the \({\text{Na}}^{+}\) ion due to the fields of these six \({\text{Cl}}^{\text{–}}\) ions is written

\({U}_{1}=-6\cfrac{{e}^{2}}{4\pi {\epsilon }_{0}r}\)

where the minus sign designates an attractive potential (and we identify \(k=1\text{/}4\pi {\epsilon }_{0}\)). At a distance \(\sqrt{2}r\) are its next-nearest neighbors: twelve \({\text{Na}}^{+}\) ions of the same charge. The total repulsive potential energy associated with these ions is

\({U}_{2}=12\cfrac{{e}^{2}}{4\pi {\epsilon }_{0}\sqrt{2}r}.\)

Next closest are eight \({\text{Cl}}^{\text{−}}\) ions a distance \(\sqrt{3}r\) from the \({\text{Na}}^{+}\) ion. The potential energy of the \({\text{Na}}^{+}\) ion in the field of these eight ions is

\({U}_{3}=\text{−}8\;\cfrac{{e}^{2}}{4\pi {\epsilon }_{0}\sqrt{3}r}.\)

Continuing in the same manner with alternate sets of \({\text{Cl}}^{\text{−}}\) and \({\text{Na}}^{+}\) ions, we find that the net attractive potential energy \({U}_{\text{A}}\) of the single \({\text{Na}}^{+}\) ion can be written as

\({U}_{\text{coul}}=\text{−}\alpha \cfrac{{e}^{2}}{4\pi {\epsilon }_{0}r}\)

where \(\alpha \) is the Madelung constant, introduced earlier. From this analysis, we can see that this constant is the infinite converging sum

\(\alpha =6-\cfrac{12}{\sqrt{2}}+\cfrac{8}{\sqrt{3}}+\text{⋯}.\)

Distant ions make a significant contribution to this sum, so it converges slowly, and many terms must be used to calculate \(\alpha \) accurately. For all FCC ionic solids, \(\alpha \) is approximately 1.75.

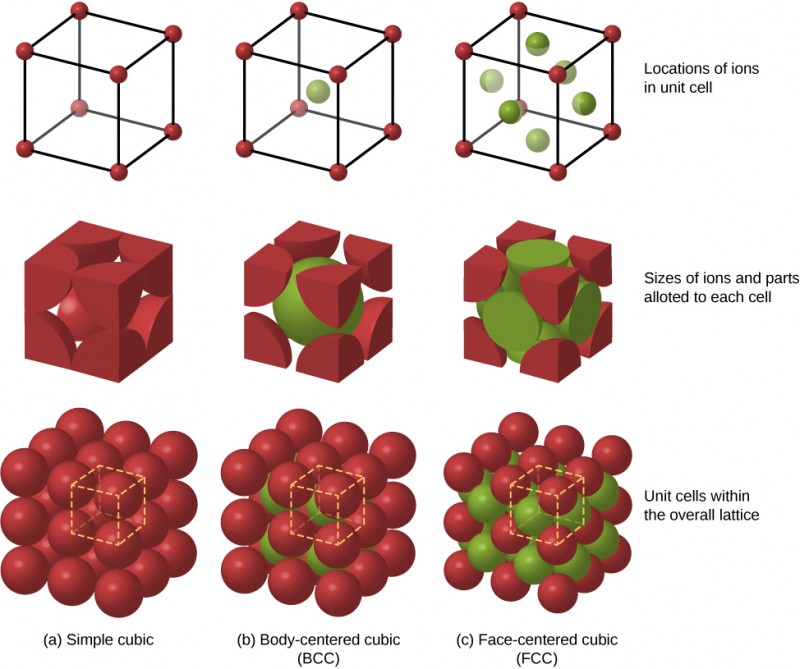

Other possible packing arrangements of atoms in solids include simple cubic and body-centered cubic (BCC). These three different packing structures of solids are compared in this figure. The first row represents the location, but not the size, of the ions; the second row indicates the unit cells of each structure or lattice; and the third row represents the location and size of the ions. The BCC structure has eight nearest neighbors, with a Madelung constant of about 1.76—only slightly different from that for the FCC structure. Determining the Madelung constant for specific solids is difficult work and the subject of current research.

The energy of the sodium ions is not entirely due to attractive forces between oppositely charged ions. If the ions are bought too close together, the wave functions of core electrons of the ions overlap, and the electrons repel due to the exclusion principle. The total potential energy of the \({\text{Na}}^{+}\) ion is therefore the sum of the attractive Coulomb potential \(({U}_{\text{coul}})\) and the repulsive potential associated with the exclusion principle \(({U}_{\text{ex}}).\) Calculating this repulsive potential requires powerful computers. Fortunately, however, this energy can be described accurately by a simple formula that contains adjustable parameters:

where the parameters A and n are chosen to give predictions consistent with experimental data. For the problem at the end of this tutorial, the parameter n is referred to as the repulsion constant. The total potential energy of the \({\text{Na}}^{+}\) ion is therefore

\(U=-\alpha \cfrac{{e}^{2}}{4\;\pi {\epsilon }_{0}r}+\cfrac{A}{{r}^{n}}.\)

At equilibrium, there is no net force on the ion, so the distance between neighboring \({\text{Na}}^{+}\) and \({\text{Cl}}^{\text{−}}\) ions must be the value \({r}_{0}\) for which U is a minimum. Setting \(\cfrac{dU}{dr}=0\), we have

\(0=\cfrac{\alpha {e}^{2}}{4\pi {\epsilon }_{0}{r}_{0}{}^{2}}-\cfrac{nA}{{r}_{0}{}^{n+1}}.\)

Thus,

\(A=\cfrac{\alpha {e}^{2}{r}_{0}{}^{n-1}}{4\pi {\epsilon }_{0}n}.\)

Inserting this expression into the expression for the total potential energy, we have

\(U=-\cfrac{\alpha {e}^{2}}{4\pi {\epsilon }_{0}{r}_{0}}\;[\cfrac{{r}_{0}}{r}-\cfrac{1}{n}{\left(\cfrac{{r}_{0}}{r}\right)}^{n}].\)

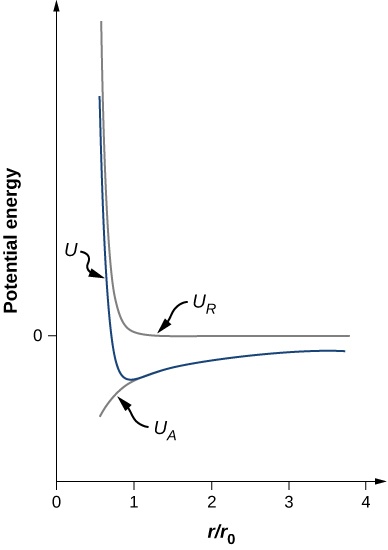

Notice that the total potential energy now has only one adjustable parameter, n. The parameter A has been replaced by a function involving \({r}_{0}\), the equilibrium separation distance, which can be measured by a diffraction experiment (you learned about diffraction in a previous tutorial). The total potential energy is plotted in this figure for \(n=8\), the approximate value of n for NaCl.

As long as \(n>1\), the curve for U has the same general shape: U approaches infinity as \(r\to 0\) and U approaches zero as \(r\to \infty \). The minimum value of the potential energy is given by

\({U}_{\text{min}}(r={r}_{0})=\text{−}\alpha \cfrac{k{e}^{2}}{{r}_{0}}(1-\cfrac{1}{n}).\)

The energy per ion pair needed to separate the crystal into ions is therefore

This is the dissociation energy of the solid. The dissociation energy can also be used to describe the total energy needed to break a mole of a solid into its constituent ions, often expressed in kJ/mole. The dissociation energy can be determined experimentally using the latent heat of vaporization. Sample values are given in the following table.

Lattice Energy for Alkali Metal Halides

	\({\text{F}}^{\text{−}}\)	\({\text{Cl}}^{\text{−}}\)	\({\text{Br}}^{\text{−}}\)	\({\text{I}}^{\text{−}}\)
\({\text{Li}}^{+}\)	\(1036\)	\(853\)	\(807\)	\(757\)
\({\text{Na}}^{+}\)	\(923\)	\(787\)	\(747\)	\(704\)
\({\text{K}}^{+}\)	\(821\)	\(715\)	\(682\)	\(649\)
\({\text{Rb}}^{+}\)	\(785\)	\(689\)	\(660\)	\(630\)
\({\text{Cs}}^{+}\)	\(740\)	\(659\)	\(631\)	\(604\)

Thus, we can determine the Madelung constant from the crystal structure and n from the lattice energy. For NaCl, we have \({r}_{0}=2.81\;\text{Å}\), \(n\approx 8\), and \({U}_{\text{diss}}=7.84\;\text{eV/ion pair}\text{.}\) This dissociation energy is relatively large. The most energetic photon from the visible spectrum, for example, has an energy of approximately

\(hf=(4.14\;×\;{10}^{-15}\;\text{eV}·\text{s})(7.5\;×\;{10}^{14}\;\text{Hz})=3.1\;\text{eV}.\)

Because the ions in crystals are so tightly bound, ionic crystals have the following general characteristics:

1. They are fairly hard and stable.
2. They vaporize at relatively high temperatures (1000 to 2000 K).
3. They are transparent to visible radiation, because photons in the visible portion of the spectrum are not energetic enough to excite an electron from its ground state to an excited state.
4. They are poor electrical conductors, because they contain effectively no free electrons.
5. They are usually soluble in water, because the water molecule has a large dipole moment whose electric field is strong enough to break the electrostatic bonds between the ions.
