Charge Carried by Electrons and Protons

Franklin wrote in his letters and books that he could see the effects of electric charge but did not understand what caused the phenomenon. Today we have the advantage of knowing that normal matter is made of atoms, and that atoms contain positive and negative charges, usually in equal amounts.

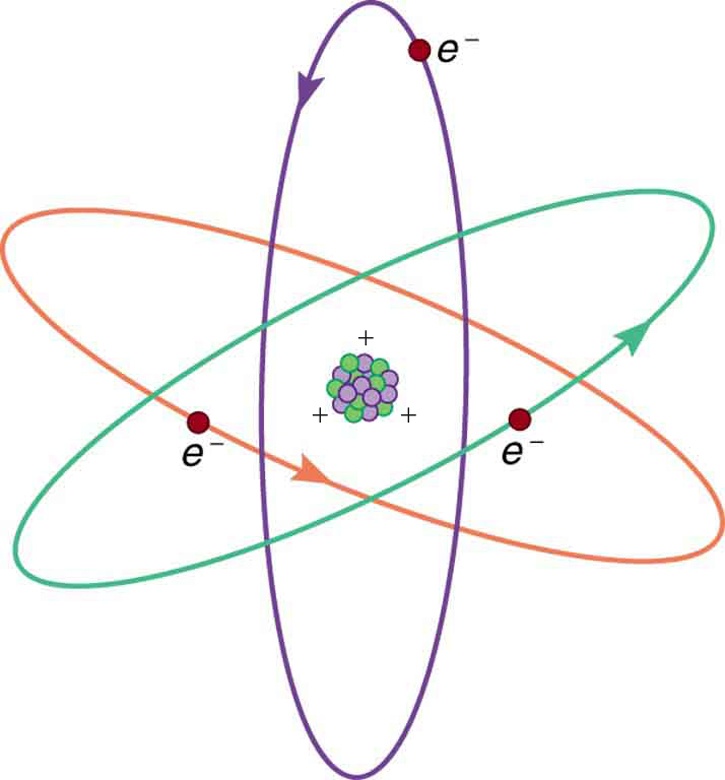

This figure shows a simple model of an atom with negative electrons orbiting its positive nucleus. The nucleus is positive due to the presence of positively charged protons. Nearly all charge in nature is due to electrons and protons, which are two of the three building blocks of most matter. (The third is the neutron, which is neutral, carrying no charge.) Other charge-carrying particles are observed in cosmic rays and nuclear decay, and are created in particle accelerators. All but the electron and proton survive only a short time and are quite rare by comparison.

This simplified (and not to scale) view of an atom is called the planetary model of the atom. Negative electrons orbit a much heavier positive nucleus, as the planets orbit the much heavier sun. There the similarity ends, because forces in the atom are electromagnetic, whereas those in the planetary system are gravitational. Normal macroscopic amounts of matter contain immense numbers of atoms and molecules and, hence, even greater numbers of individual negative and positive charges.

The charges of electrons and protons are identical in magnitude but opposite in sign. Furthermore, all charged objects in nature are integral multiples of this basic quantity of charge, meaning that all charges are made of combinations of a basic unit of charge. Usually, charges are formed by combinations of electrons and protons. The magnitude of this basic charge is

\(\mid {q}_{e}\mid =1\text{.}\text{60}×{\text{10}}^{-\text{19}}\phantom{\rule{0.25em}{0ex}}\text{C}.\)

The symbol \(q\) is commonly used for charge and the subscript \(e\) indicates the charge of a single electron (or proton).

The SI unit of charge is the coulomb (C). The number of protons needed to make a charge of 1.00 C is

\(1.\text{00 C}×\cfrac{1\phantom{\rule{0.25em}{0ex}}\text{proton}}{1\text{.}\text{60}×{\text{10}}^{-\text{19}}\phantom{\rule{0.25em}{0ex}}\text{C}}=6\text{.}\text{25}×{\text{10}}^{\text{18}}\phantom{\rule{0.25em}{0ex}}\text{protons}.\)

Similarly, \(6\text{.}\text{25}×{\text{10}}^{\text{18}}\) electrons have a combined charge of −1.00 coulomb. Just as there is a smallest bit of an element (an atom), there is a smallest bit of charge. There is no directly observed charge smaller than \(\mid {q}_{e}\mid \) (see "Things Great and Small: The Submicroscopic Origin of Charge" below), and all observed charges are integral multiples of \(\mid {q}_{e}\mid \).

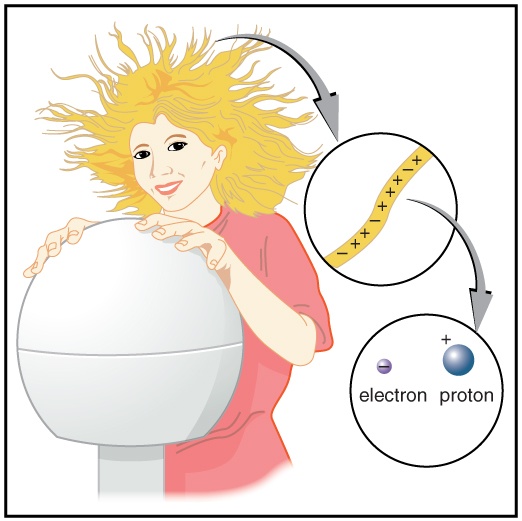

This figure shows a person touching a Van de Graaff generator and receiving excess positive charge. The expanded view of a hair shows the existence of both types of charges but an excess of positive. The repulsion of these positive like charges causes the strands of hair to repel other strands of hair and to stand up. The further blowup shows an artist’s conception of an electron and a proton perhaps found in an atom in a strand of hair.

When this person touches a Van de Graaff generator, she receives an excess of positive charge, causing her hair to stand on end. The charges in one hair are shown. An artist’s conception of an electron and a proton illustrate the particles carrying the negative and positive charges. We cannot really see these particles with visible light because they are so small (the electron seems to be an infinitesimal point), but we know a great deal about their measurable properties, such as the charges they carry.

The electron seems to have no substructure; in contrast, when the substructure of protons is explored by scattering extremely energetic electrons from them, it appears that there are point-like particles inside the proton. These sub-particles, named quarks, have never been directly observed, but they are believed to carry fractional charges as seen in this figure. Charges on electrons and protons and all other directly observable particles are unitary, but these quark substructures carry charges of either \(-\cfrac{1}{3}\) or \(+\cfrac{2}{3}\). There are continuing attempts to observe fractional charge directly and to learn of the properties of quarks, which are perhaps the ultimate substructure of matter.

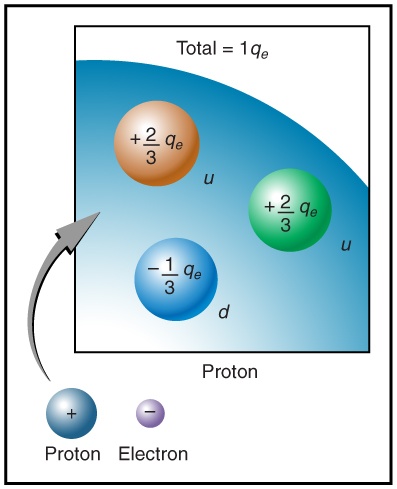

Artist’s conception of fractional quark charges inside a proton. A group of three quark charges add up to the single positive charge on the proton: \(-\cfrac{1}{3}{q}_{e}+\cfrac{2}{3}{q}_{e}+\cfrac{2}{3}{q}_{e}={+1q}_{e}\).
