<h2>Energy Stored in Capacitors</h2>
<p>Most of us have seen dramatizations in which medical personnel use a <strong>defibrillator</strong> to pass an electric current through a patient’s heart to get it to beat normally. (Review <a href="#navlink_id3096543">this figure</a>.) Often realistic in detail, the person applying the shock directs another person to “make it 400 joules this time.” The energy delivered by the defibrillator is stored in a capacitor and can be adjusted to fit the situation. SI units of joules are often employed. Less dramatic is the use of capacitors in microelectronics, such as certain handheld calculators, to supply energy when batteries are charged. (See <a href="#navlink_id3096543">this figure</a>.) Capacitors are also used to supply energy for flash lamps on cameras.</p>
<div class="fig_container" id="navlink_id3096543"><img alt="In an electronic calculator circuit the memory is preserved using large capacitors which store energy when the batteries are charged." src="https://data.ulearngo.com/assets/456c2105-69ec-43ca-8c2f-01238269c9b8"/>

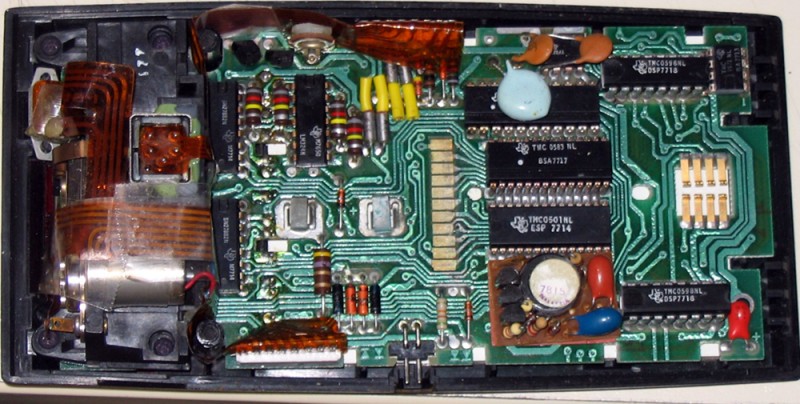

<p class="fig_caption">Energy stored in the large capacitor is used to preserve the memory of an electronic calculator when its batteries are charged. (credit: Kucharek, Wikimedia Commons)</p>
</div>
<p>Energy stored in a capacitor is electrical potential energy, and it is thus related to the charge \(Q\) and voltage \(V\) on the capacitor. We must be careful when applying the equation for electrical potential energy \(\text{Δ}\text{PE}=q\text{Δ}V\phantom{\rule{0.25em}{0ex}}\) to a capacitor. Remember that \(\text{Δ}\text{PE}\) is the potential energy of a charge <em>\(q\)</em> going through a voltage \(\text{Δ}V\). But the capacitor starts with zero voltage and gradually comes up to its full voltage as it is charged.</p>
<p>The first charge placed on a capacitor experiences a change in voltage \(\text{Δ}V=0\), since the capacitor has zero voltage when uncharged. The final charge placed on a capacitor experiences \(\text{Δ}V=V\), since the capacitor now has its full voltage \(V\) on it. The average voltage on the capacitor during the charging process is \(V/2\), and so the average voltage experienced by the full charge <em>\(q\)</em> is \(V/2\). Thus the energy stored in a capacitor, \({E}_{\text{cap}}\), is</p>
<p>\({E}_{\text{cap}}=\cfrac{QV}{2},\)</p>
<p>where \(Q\) is the charge on a capacitor with a voltage \(V\) applied. (Note that the energy is not \(\text{QV}\), but \(\text{QV}/2\).) Charge and voltage are related to the capacitance \(C\) of a capacitor by \(Q=\text{CV}\), and so the expression for \({E}_{\text{cap}}\) can be algebraically manipulated into three equivalent expressions:</p>
<p>\({E}_{\text{cap}}=\cfrac{\text{QV}}{2}=\cfrac{{\text{CV}}^{2}}{2}=\cfrac{{Q}^{2}}{2C},\)</p>
<p>where \(Q\) is the charge and \(V\) the voltage on a capacitor \(C\). The energy is in joules for a charge in coulombs, voltage in volts, and capacitance in farads.</p>
<div class="ns-tutorial">
<div class="ns-school-defn2">
<h3>Energy Stored in Capacitors</h3>
<p>The energy stored in a capacitor can be expressed in three ways:</p>
<p>\({E}_{\text{cap}}=\cfrac{\text{QV}}{2}=\cfrac{{\text{CV}}^{2}}{2}=\cfrac{{Q}^{2}}{2C},\)</p>
<p>where \(Q\) is the charge, \(V\) is the voltage, and \(C\) is the capacitance of the capacitor. The energy is in joules for a charge in coulombs, voltage in volts, and capacitance in farads.</p>
</div>
</div>
<p>In a defibrillator, the delivery of a large charge in a short burst to a set of paddles across a person’s chest can be a lifesaver. The person’s heart attack might have arisen from the onset of fast, irregular beating of the heart—cardiac or ventricular fibrillation. The application of a large shock of electrical energy can terminate the arrhythmia and allow the body’s pacemaker to resume normal patterns. Today it is common for ambulances to carry a defibrillator, which also uses an electrocardiogram to analyze the patient’s heartbeat pattern. Automated external defibrillators (AED) are found in many public places (<a href="#navlink_id1516605">this figure</a>). These are designed to be used by lay persons. The device automatically diagnoses the patient’s heart condition and then applies the shock with appropriate energy and waveform. CPR is recommended in many cases before use of an AED.</p>
<div class="fig_container" id="navlink_id1516605"><img alt="Photograph of an automated external defibrillator." src="https://data.ulearngo.com/assets/41a88cd3-6f2e-4cb6-a093-61f262a835e6"/>

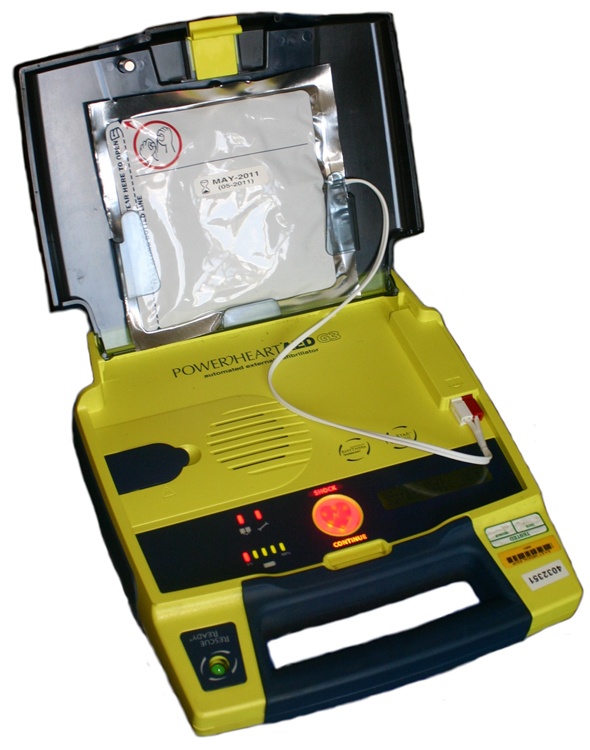

<p class="fig_caption">Automated external defibrillators are found in many public places. These portable units provide verbal instructions for use in the important first few minutes for a person suffering a cardiac attack. (credit: Owain Davies, Wikimedia Commons)</p>
</div>
<div class="ns-school-emp">
<h3>Example: Capacitance in a Heart Defibrillator</h3>
<div class="ns-school-defn">
<p>A heart defibrillator delivers \(4.00×{\text{10}}^{\text{2}}\phantom{\rule{0.25em}{0ex}}\text{J}\) of energy by discharging a capacitor initially at \(1.00×{\text{10}}^{\text{4}}\phantom{\rule{0.25em}{0ex}}\text{V}\). What is its capacitance?</p>
<p><strong>Strategy</strong></p>
<p>We are given \({E}_{\text{cap}}\) and \(V\), and we are asked to find the capacitance \(C\). Of the three expressions in the equation for \({E}_{\text{cap}}\), the most convenient relationship is</p>
<p>\({E}_{\text{cap}}=\cfrac{{\text{CV}}^{2}}{2}.\)</p>
<p><strong>Solution</strong></p>
<p>Solving this expression for \(C\) and entering the given values yields</p>
<p>F\(\begin{array}{lll}C&amp; =&amp; \cfrac{2{E}_{\text{cap}}}{{V}^{2}}=\cfrac{2(4\text{.}\text{00}×{\text{10}}^{2}\phantom{\rule{0.25em}{0ex}}\text{J})}{(1\text{.}\text{00}×{\text{10}}^{4}\phantom{\rule{0.25em}{0ex}}\text{V}{)}^{2}}=8\text{.}\text{00}×{\text{10}}^{–6}\phantom{\rule{0.25em}{0ex}}\text{F}\\ &amp; =&amp; \text{8}\text{.}\text{00 µF}\text{.}\end{array}\)</p>
<p><strong>Discussion</strong></p>
<p>This is a fairly large, but manageable, capacitance at \(1.00×{\text{10}}^{\text{4}}\phantom{\rule{0.25em}{0ex}}\text{V}\).</p>
</div>
</div>
</div>
<h2>Summary</h2>
<ul>
<li>Capacitors are used in a variety of devices, including defibrillators, microelectronics such as calculators, and flash lamps, to supply energy.</li>
<li>The energy stored in a capacitor can be expressed in three ways:

<p>\({E}_{\text{cap}}=\cfrac{\text{QV}}{2}=\cfrac{{\text{CV}}^{2}}{2}=\cfrac{{Q}^{2}}{2C},\)</p>

where\(Q\) is the charge, \(V\) is the voltage, and \(C\) is the capacitance of the capacitor. The energy is in joules when the charge is in coulombs, voltage is in volts, and capacitance is in farads.</li>
</ul>
<h2>Glossary</h2>
<h3>defibrillator</h3>
<p>a machine used to provide an electrical shock to a heart attack victim's heart in order to restore the heart's normal rhythmic pattern</p>
