Parallel Plate Capacitor

The parallel plate capacitor shown in this figure has two identical conducting plates, each having a surface area \(A\), separated by a distance \(d\) (with no material between the plates). When a voltage \(V\) is applied to the capacitor, it stores a charge \(Q\), as shown. We can see how its capacitance depends on \(A\) and \(d\) by considering the characteristics of the Coulomb force.

We know that like charges repel, unlike charges attract, and the force between charges decreases with distance. So it seems quite reasonable that the bigger the plates are, the more charge they can store—because the charges can spread out more. Thus \(C\) should be greater for larger \(A\). Similarly, the closer the plates are together, the greater the attraction of the opposite charges on them. So \(C\) should be greater for smaller \(d\).

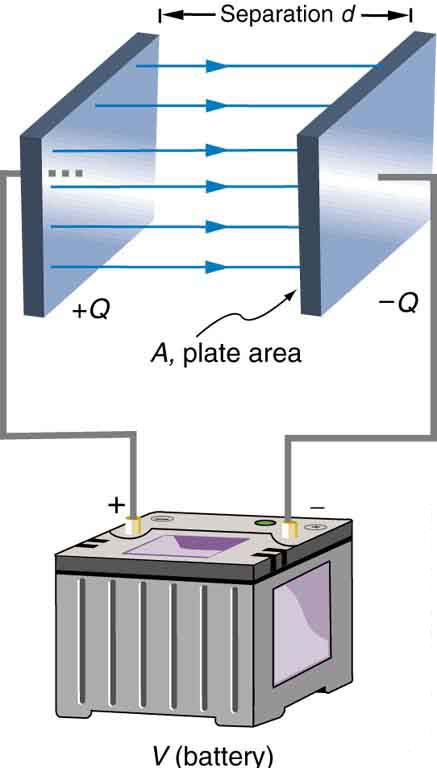

Two parallel plates are placed facing each other. The area of each plate is A, and the distance between the plates is d. The plate on the left is connected to the positive terminal of the battery, and the plate on the right is connected to the negative terminal of the battery.

Parallel plate capacitor with plates separated by a distance \(d\). Each plate has an area \(A\).

It can be shown that for a parallel plate capacitor there are only two factors (\(A\) and \(d\)) that affect its capacitance \(C\). The capacitance of a parallel plate capacitor in equation form is given by

\(C={\epsilon }_{0}\cfrac{A}{d}.\)

Capacitance of a Parallel Plate Capacitor

\(C={\epsilon }_{0}\cfrac{A}{d}\)

\(A\) is the area of one plate in square meters, and \(d\) is the distance between the plates in meters. The constant \({\epsilon }_{0}\) is the permittivity of free space; its numerical value in SI units is\({\epsilon }_{0}=8.85×{\text{10}}^{–\text{12}}\phantom{\rule{0.25em}{0ex}}\text{F/m}\). The units of F/m are equivalent to \({C}^{2}\text{/N}·{\text{m}}^{2}\). The small numerical value of \({\epsilon }_{0}\) is related to the large size of the farad. A parallel plate capacitor must have a large area to have a capacitance approaching a farad. (Note that the above equation is valid when the parallel plates are separated by air or free space. When another material is placed between the plates, the equation is modified, as discussed below.)

Example: Capacitance and Charge Stored in a Parallel Plate Capacitor

(a) What is the capacitance of a parallel plate capacitor with metal plates, each of area \(\text{1.00}\phantom{\rule{0.25em}{0ex}}{\text{m}}^{2}\), separated by 1.00 mm? (b) What charge is stored in this capacitor if a voltage of \(3.00×{\text{10}}^{\text{3}}\phantom{\rule{0.25em}{0ex}}\text{V}\) is applied to it?

Strategy

Finding the capacitance \(C\) is a straightforward application of the equation \(C={\epsilon }_{0}A/d\). Once \(C\) is found, the charge stored can be found using the equation \(Q=\text{CV}\).

Solution for (a)

Entering the given values into the equation for the capacitance of a parallel plate capacitor yields

\(\begin{array}{lll}C& =& {\epsilon }_{0}\cfrac{A}{d}=(8.85×{\text{10}}^{\text{–12}}\cfrac{\text{F}}{\text{m}})\phantom{\rule{0.10em}{0ex}}\cfrac{1.00\phantom{\rule{0.25em}{0ex}}{\text{m}}^{2}}{1.00×{\text{10}}^{–3}\phantom{\rule{0.25em}{0ex}}\text{m}}\\ & =& 8.85×{\text{10}}^{–9}\phantom{\rule{0.25em}{0ex}}\text{F}=8.85\text{ nF}.\end{array}\)

Discussion for (a)

This small value for the capacitance indicates how difficult it is to make a device with a large capacitance. Special techniques help, such as using very large area thin foils placed close together.

Solution for (b)

The charge stored in any capacitor is given by the equation \(Q=\text{CV}\). Entering the known values into this equation gives

C.\(\begin{array}{lll}Q& =& \text{CV}=(8.85×{\text{10}}^{–9}\phantom{\rule{0.25em}{0ex}}\text{F})(3.00×{\text{10}}^{3}\phantom{\rule{0.25em}{0ex}}\text{V})\\ & =& \text{26.6 μC.}\end{array}\)

Discussion for (b)

This charge is only slightly greater than those found in typical static electricity. Since air breaks down at about \(3\text{.}\text{00}×{\text{10}}^{6}\phantom{\rule{0.25em}{0ex}}\text{V/m}\), more charge cannot be stored on this capacitor by increasing the voltage.

Another interesting biological example dealing with electric potential is found in the cell’s plasma membrane. The membrane sets a cell off from its surroundings and also allows ions to selectively pass in and out of the cell. There is a potential difference across the membrane of about \(\text{–70 mV}\). This is due to the mainly negatively charged ions in the cell and the predominance of positively charged sodium (\({\text{Na}}^{\text{+}}\)) ions outside. Things change when a nerve cell is stimulated. \({\text{Na}}^{\text{+}}\) ions are allowed to pass through the membrane into the cell, producing a positive membrane potential—the nerve signal. The cell membrane is about 7 to 10 nm thick. An approximate value of the electric field across it is given by

\(E=\cfrac{V}{d}=\cfrac{\text{–70}×{\text{10}}^{–3}\phantom{\rule{0.25em}{0ex}}\text{V}}{8×{\text{10}}^{–9}\phantom{\rule{0.25em}{0ex}}\text{m}}=–9×{\text{10}}^{6}\phantom{\rule{0.25em}{0ex}}\text{V/m}.\)

This electric field is enough to cause a breakdown in air.
