<h2>Resistors in an AC Circuit</h2>
<p>Just as a reminder, consider <a href="#navlink_id1169737758127">this figure</a>, which shows an AC voltage applied to a resistor and a graph of voltage and current versus time. The voltage and current are exactly <em>in </em><em>phase</em> in a resistor. There is no frequency dependence to the behavior of plain resistance in a circuit:</p>
<div class="fig_container" id="navlink_id1169737758127"><img alt="Part a of the diagram shows a resistor R connected across an A C voltage source V. The voltage drop across the resistor R is given by V R.Part b of the diagram shows a graph showing the variation of voltage V R and current I R with time t. the V R and current I R are plotted along Y axis and time t is along the X axis. Both I and V are progressive cosine waves. The amplitude of I wave is more than V wave." src="https://data.ulearngo.com/assets/ee468154-8d70-4738-886d-0ad2d0340282"/>

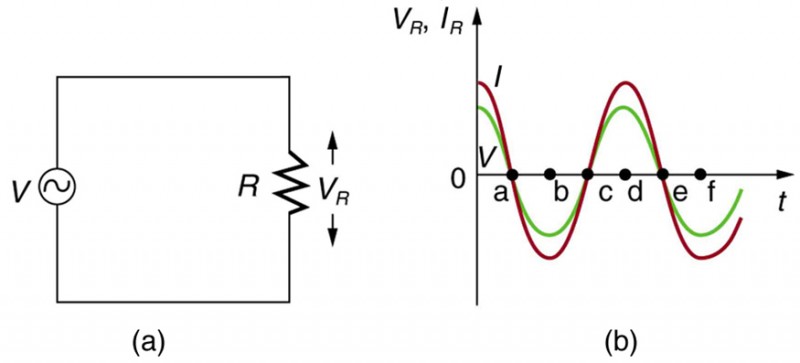

<p class="fig_caption">(a) An AC voltage source in series with a resistor. (b) Graph of current and voltage across the resistor as functions of time, showing them to be exactly in phase.</p>
</div>
<div class="ns-tutorial">
<div class="ns-school-defn2">
<h3>AC Voltage in a Resistor</h3>
<p>When a sinusoidal voltage is applied to a resistor, the voltage is exactly in phase with the current—they have a \(\text{0º}\) phase angle.</p>
</div>
</div>
