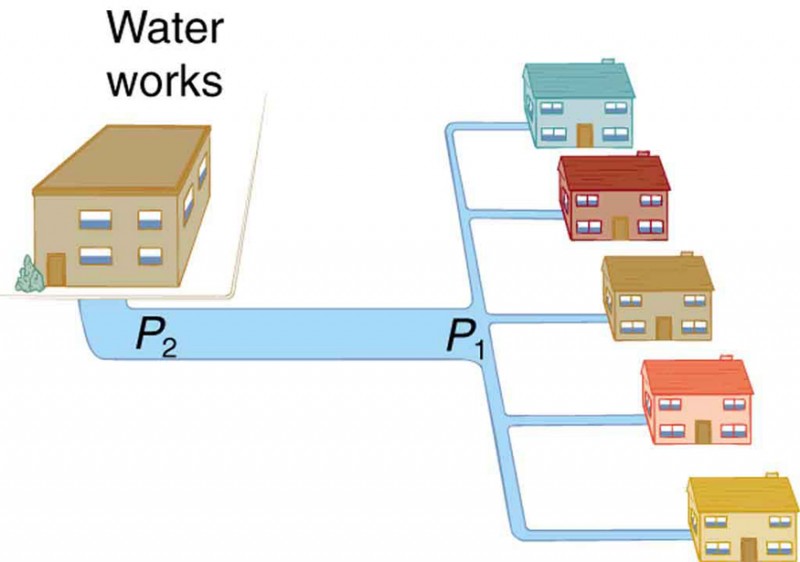

You may have noticed that water pressure in your home might be lower than normal on hot summer days when there is more use. This pressure drop occurs in the water main before it reaches your home. Let us consider flow through the water main as illustrated in the figure below. We can understand why the pressure \({P}_{1}\) to the home drops during times of heavy use by rearranging

\(Q=\cfrac{{P}_{2}-{P}_{1}}{R}\)

to

\({P}_{2}-{P}_{1}=RQ\text{,}\)

where, in this case, \({P}_{2}\) is the pressure at the water works and \(R\) is the resistance of the water main. During times of heavy use, the flow rate \(Q\) is large. This means that \({P}_{2}-{P}_{1}\) must also be large. Thus \({P}_{1}\) must decrease. It is correct to think of flow and resistance as causing the pressure to drop from \({P}_{2}\) to \({P}_{1}\). \({P}_{2}-{P}_{1}=RQ\) is valid for both laminar and turbulent flows.

During times of heavy use, there is a significant pressure drop in a water main, and \({P}_{\text{1}}\) supplied to users is significantly less than \({P}_{\text{2}}\) created at the water works. If the flow is very small, then the pressure drop is negligible, and \({P}_{2}\approx {P}_{1}\).

We can use \({P}_{2}-{P}_{1}=RQ\) to analyze pressure drops occurring in more complex systems in which the tube radius is not the same everywhere. Resistance will be much greater in narrow places, such as an obstructed coronary artery. For a given flow rate \(Q\), the pressure drop will be greatest where the tube is most narrow. This is how water faucets control flow. Additionally, \(R\) is greatly increased by turbulence, and a constriction that creates turbulence greatly reduces the pressure downstream. Plaque in an artery reduces pressure and hence flow, both by its resistance and by the turbulence it creates.

The figure below is a schematic of the human circulatory system, showing average blood pressures in its major parts for an adult at rest. Pressure created by the heart’s two pumps, the right and left ventricles, is reduced by the resistance of the blood vessels as the blood flows through them. The left ventricle increases arterial blood pressure that drives the flow of blood through all parts of the body except the lungs. The right ventricle receives the lower pressure blood from two major veins and pumps it through the lungs for gas exchange with atmospheric gases – the disposal of carbon dioxide from the blood and the replenishment of oxygen.

Only one major organ is shown schematically, with typical branching of arteries to ever smaller vessels, the smallest of which are the capillaries, and rejoining of small veins into larger ones. Similar branching takes place in a variety of organs in the body, and the circulatory system has considerable flexibility in flow regulation to these organs by the dilation and constriction of the arteries leading to them and the capillaries within them. The sensitivity of flow to tube radius makes this flexibility possible over a large range of flow rates.

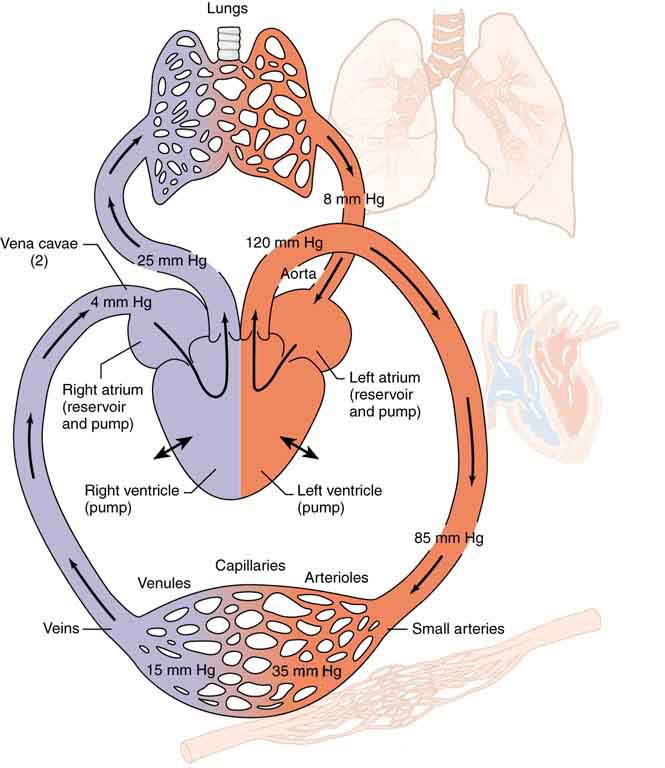

Schematic of the circulatory system. Pressure difference is created by the two pumps in the heart and is reduced by resistance in the vessels. Branching of vessels into capillaries allows blood to reach individual cells and exchange substances, such as oxygen and waste products, with them. The system has an impressive ability to regulate flow to individual organs, accomplished largely by varying vessel diameters.

Each branching of larger vessels into smaller vessels increases the total cross-sectional area of the tubes through which the blood flows. For example, an artery with a cross section of \(1\phantom{\rule{0.25em}{0ex}}{\text{cm}}^{2}\) may branch into 20 smaller arteries, each with cross sections of \(0.5\phantom{\rule{0.25em}{0ex}}{\text{cm}}^{2}\), with a total of \(\text{10}\phantom{\rule{0.25em}{0ex}}{\text{cm}}^{2}\). In that manner, the resistance of the branchings is reduced so that pressure is not entirely lost. Moreover, because \(Q=A\overline{v}\) and \(A\) increases through branching, the average velocity of the blood in the smaller vessels is reduced. The blood velocity in the aorta (\(\text{diameter}=1\phantom{\rule{0.25em}{0ex}}\text{cm}\)) is about 25 cm/s, while in the capillaries (\(\text{20}\mu \text{m}\) in diameter) the velocity is about 1 mm/s. This reduced velocity allows the blood to exchange substances with the cells in the capillaries and alveoli in particular.
