Comparing Sound Generating Instruments

The size and shape of instruments influences the sounds that they are able to produce. Find some instruments that have different physical characteristics and compare their sounds. You could:

Option 1: Vuvuzelas:

Compare the sounds made by blowing through vuvuzelas of different sizes. You will need to find a few different vuvuzelas. Take turns blowing the different ones, one at a time and record which you think is louder (amplitude), which is of higher pitch (frequency).

Option 2: Tuning forks:

Compare the sounds created by tapping tuning forks of different sizes.

You will need to find a few different tuning forks. Take turns tapping the different ones, one at a time and record which you think is louder (amplitude), which is of higher pitch (frequency).

Option 3: Signal generator and oscilloscope

Use a function generator connected to a speaker to produce sounds of different frequencies and amplitudes and use a microphone connected to an oscilloscope to display the characteristics of the different sounds produced.

Function generator

The function generator allows you to control the loudness and frequency of the sound being produced by the speaker. It will have controls for amplitude and frequency.

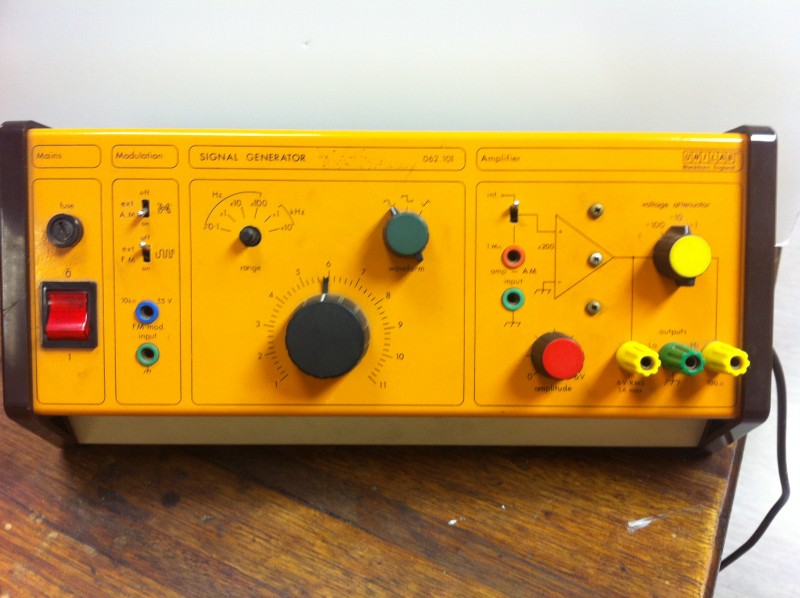

A function generator

Oscilloscope

The microphone can then pick up the sound and convert it to an electrical signal which can be displayed on the oscilloscope.

The most common oscilloscope controls are for amplitude, frequency, triggering, and channels. Once your teacher has helped you acquire a signal using the correct channel and triggering you will use the amplitude and frequency controls to display the characteristics of the sound being produced.

The amplitude adjustment of an oscilloscope controls how tall a given voltage will appear on the screen. The purpose of this adjustment is that you can see a very large or a very small signal on the same screen.

An oscilloscope

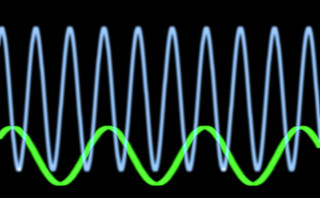

Two different oscilloscope traces

The frequency (or time) adjustment of an oscilloscope is how much time will a certain distance across the screen represent. The purpose of this adjustment is to be able to see a very quickly changing or a slowly changing signal on the same screen.

Note: The display of the oscilloscope will show you a transverse wave pattern. This does not mean that sound waves are transverse waves but just shows that the pressure being measured is fluctuating because of a pressure wave.

You will be able to experiment with different amplitudes and frequencies using the function generator and see what impact the changes have on the waveform picked up by the microphone.
