Ultrasound and the Doppler Effect

Ultrasound and the Doppler Effect

Ultrasonic waves (ultrasound) are sound waves with a frequency greater than \(\text{20 000}\) \(\text{Hz}\) (the upper limit of human hearing). These waves can be used in medicine to determine the direction of blood flow. The device, called a Doppler flow meter, sends out sound waves. The sound waves can travel through skin and tissue and will be reflected by moving objects in the body (like blood). The reflected waves return to the flow meter where its frequency (received frequency) is compared to the transmitted frequency.Because of the Doppler effect, blood that is moving towards the flow meter will change the sound to a higher frequency and blood that is moving away from the flow meter will cause a lower frequency.

Ultrasound can be used to determine whether blood is flowing in the right direction in the circulation system of unborn babies, or identify areas in the body where blood flow is restricted due to narrow veins. The use of ultrasound equipment in medicine is called sonography or ultrasonography.

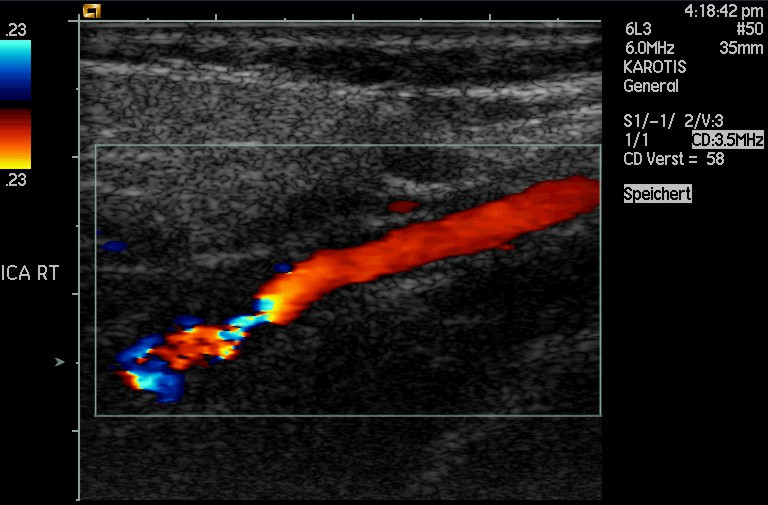

Colour Doppler imaging of cervicocephalic fibromuscular dysplasia
