<p>The following example illustrates how to mathematically describe projectile motion.</p>
<div class="ns-school-emp">
<h2>Example: Describing Projectile Motion</h2>
<div class="ns-school-defn">
<h3>Question</h3>
<div>

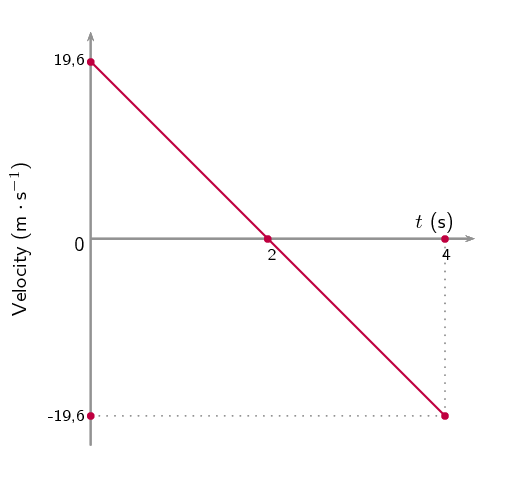

<p>A cricketer hits a cricket ball from the ground and the following graph of velocity vs time was drawn. Upwards was taken as positive. Study the graph and follow the instructions below:</p>
<ol>
<li>
<p>Describe the motion of the ball according to the graph.</p>
</li>
<li>
<p>Draw a sketch graph of the corresponding position-time graph. Label the axes.</p>
</li>
<li>
<p>Draw a sketch graph of the corresponding acceleration-time graph. Label the axes.</p>
</li>
</ol>
<img alt="23c40668c98b794a8294a11cee2f3493.png" src="https://data.ulearngo.com/assets/04bb44a1-612e-4132-9992-0eaeff81f837"/></div>
<div>
<h3>Step 1: Describe the motion of the ball</h3>
<p>We need to study the velocity-time graph to answer this question. We will break the motion of the ball up into two time zones: $t=\text{0}\text{ s}$ to $t=\text{2}\text{ s}$ and $t=\text{2}\text{ s}$ to $t=\text{4}\text{ s}$.</p>
<p>From $t=\text{0}\text{ s}$ to $t=\text{2}\text{ s}$ the following happens:</p>
<p>The ball starts to move at an initial velocity of $\text{19.6}$ $\text{m·s $^{-1}$}$ and decreases its velocity to $\text{0}$ $\text{m·s $^{-1}$}$ at $t=\text{2}\text{ s}$. At $t=\text{2}\text{ s}$ the velocity of the ball is $\text{0}$ $\text{m·s $^{-1}$}$ and therefore it stops.</p>
<p>From $t=\text{2}\text{ s}$ to $t=\text{4}\text{ s}$ the following happens:</p>
<p>The ball moves from a velocity of $\text{0}$ $\text{m·s $^{-1}$}$ to $\text{19.6}$ $\text{m·s $^{-1}$}$ in the opposite direction to the original motion.</p>
<p>If we assume that the ball is hit straight up in the air (and we take upwards as positive), it reaches its maximum height at $t= \text{2}\text{ s}$, stops, and falls back to the Earth to reach the ground at $t= \text{4}\text{ s}$.</p>
</div>
<div>
<h3>Step 2: Draw the position-time graph</h3>
<p>To draw this graph, we need to determine the displacements at $t = \text{2}\text{ s}$ and $t = \text{4}\text{ s}$.</p>
<p>At $t = \text{2}\text{ s}$:</p>
<p>The displacement is equal to the area under the graph:</p>
<p>Area under graph = Area of triangle</p>
<p>$\text{Area}=\frac{1}{2}bh$</p>
<p>$\text{Area}=\frac{1}{2}\times 2\times \text{19.6}$</p>
<p>Position = $\text{19.6}$ $\text{m}$</p>
<p>At $t = \text{4}\text{ s}$:</p>
<p>The displacement is equal to the area under the whole graph (top and bottom). Remember that an area under the time line must be subtracted:</p>
<p>Area under graph = Area of triangle 1 + Area of triangle 2</p>
<p>$\text{Area}=\frac{1}{2}bh+\frac{1}{2}bh$</p>
<p>$\text{Area}=\left(\frac{1}{2}\times 2\times \text{19.6}\right)+\left(\frac{1}{2}\times 2\times \left( -\text{19.6}\right)\right)$</p>
<p>$\text{Area}=19.6-19.6$</p>
<p>Displacement = $\text{0}$ $\text{m}$</p>

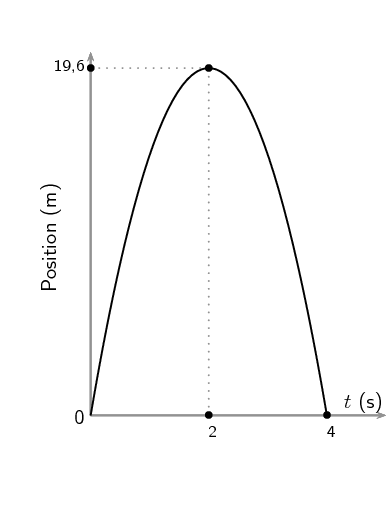

<p>The position vs time graph for motion at constant acceleration is a curve. The graph will look like this:</p>
<img alt="0c3125c54ce82a00b652654ed8a5a115.png" src="https://data.ulearngo.com/assets/f5657daf-1a35-438c-a2a2-b65693d520ca"/></div>
<div>

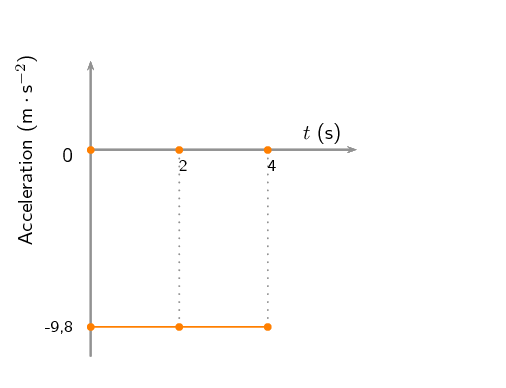

<h3>Step 3: Draw the acceleration versus time graph</h3>
<p>To draw the acceleration vs time graph, we need to know what the acceleration is. The velocity versus time graph is a straight line which means that the acceleration is constant. The gradient of the line will give the acceleration.</p>
<p>The line has a negative slope (goes down towards the left) which means that the acceleration has a negative value.</p>
<p>Calculate the gradient of the line:</p>

\begin{align*} \text{gradient}=\frac{\Delta \vec{v}}{\Delta t} \\ \text{gradient}=\frac{0 -\text{19,6}}{2-0} \\ \text{gradient}=\frac{ -\text{19,6}}{2} \\ \text{gradient}= -\text{9,8} \end{align*}

<p>Therefore the acceleration = $\text{9.8}$ $\text{m·s $^{-2}$}$ downwards.</p>
<img alt="fba66049d8ab488fdebb327945baf523.png" src="https://data.ulearngo.com/assets/53e19b8c-9d2f-4878-a578-1ca0b7c92e80"/></div>
</div>
</div>
