<h2>Displacement and Distance</h2>
<div class="ns-school-emp">
<h3>Definition: Distance</h3>
<div class="ns-school-defn">
<p>Distance is the total length of the path taken in going from the initial position, \(\vec{x}_{i}\), to the final position, \(\vec{x}_{f}\). Distance is a scalar.</p>
<p>Quantity: Distance (\(D\)) Unit name: metre Unit symbol: \(\text{m}\)</p>
</div>
</div>
<div class="ns-school-defn2">
<h3>Tip:</h3>
<p>The symbol Δ is read out as <em>delta</em>. Δ is a letter of the Greek alphabet and is used in Mathematics and Science to indicate a change in a certain quantity, or a final value minus an initial value. For example, \(\Delta x\) means change in \(x\) while \(\Delta t\) means change in \(t\).</p>
</div>

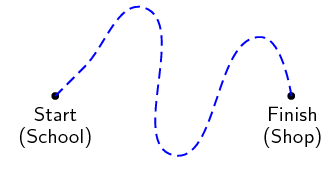

<p>In the simple map below you can see the path that winds because of a number of hills from a school to a nearby shop. The path is shown by a dashed line. The initial point, \(\vec{x}_{i}\), is the school and the final point, \(\vec{x}_{f}\), is the shop.</p>
<p>Distance is the length of dashed line. It is how far you have to walk along the path from the school to the shop.</p>
<p><img alt="5863b6e35a7dd206d88d57fe6ab70b46.png" src="https://data.ulearngo.com/assets/358c5ea9-c9e8-4bc6-adc8-99841c09c8cc"/></p>
<div class="ns-school-emp">
<h3>Definition: Displacement</h3>
<div class="ns-school-defn">
<p>Displacement is the change in an object's position. It is a vector that points from the initial position (\(\vec{x}_{i}\)) to the final position (\(\vec{x}_{f}\)).</p>
<p>Quantity: Displacement (\(\Delta \vec{x}\)) Unit name: metre Unit symbol: \(\text{m}\)</p>
</div>
</div>
<p>The displacement of an object is defined as its change in position (final position minus initial position). Displacement has a magnitude and direction and is therefore a vector. For example, if the initial position of a car is \(\vec{x}_{i}\) and it moves to a final position of \(\vec{x}_{f}\), then the displacement is:</p>
<p>\[\Delta \vec{x} = \vec{x}_{f} - \vec{x}_{i}\]</p>
<p>To help visualise what the displacement vector looks like think back to the tail-to-head method. The displacement is the vector you add to the initial position vector to get a vector to the final position.</p>
<p>However, subtracting an initial quantity from a final quantity happens often in Physics, so we use the shortcut Δ to mean <em>final - initial</em>. Therefore, displacement can be written:</p>
<p>\[\Delta \vec{x} = \vec{x}_{f} - \vec{x}_{i}\]</p>

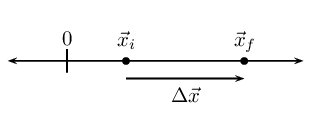

<p>The following diagram illustrates the concept of displacement:</p>
<p><img alt="a4e70125c8d4dc48af85869c241d98f2.png" src="https://data.ulearngo.com/assets/836ac7f4-6169-4621-b6ca-ad3a8a5b6475"/></p>
<p>For example, if you roll a ball \(\text{5}\) \(\text{m}\) along a floor, in a straight line, then its displacement is \(\text{5}\) \(\text{m}\), taking the direction of motion as positive, and the initial position as \(\text{0}\) \(\text{m}\).</p>
<div class="ns-school-defn2">
<h3>Tip:</h3>
<p>The words <em>initial</em> and <em>final</em> will be used very often in Physics. <em>Initial</em> refers to the situation in the beginning of the description/problem and <em>final</em> to the situation at the end. It will often happen that the final value is smaller than the initial value, such that the difference is negative. This is ok!</p>
</div>
<p>Displacement does not depend on the path travelled, but only on the initial and final positions. We use the word <em>distance</em> to describe how far an object travels along a particular path.</p>
<p>If we go back to the simple map repeated below you can see the path as before shown by a dashed line.</p>
<div class="ns-school-defn2">
<h3>Tip:</h3>
<p>We will use \(D\) in this book, but you may see \(d\) used in other books.</p>
</div>
<div class="ns-school-defn2">
<h3>Tip:</h3>
<p>We use the expression <em>'as the crow flies'</em> to mean a straight line between two points because birds can fly directly over many obstacles.</p>
</div>

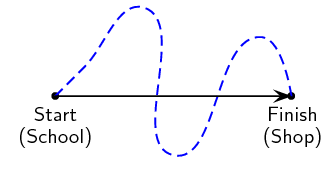

<p>Distance is the length of dashed line. The displacement is different. Displacement is the straight-line distance from the starting point to the endpoint – from the school to the shop in the figure as shown by the solid arrow.</p>
<p><img alt="175f06b701f9ff548afe0dd96f804124.png" src="https://data.ulearngo.com/assets/dfe57258-28a7-4950-ba50-d6d41572cd91"/></p>
