<p>The following example illustrates how to draw graphs of projectile motion.</p>
<div class="ns-school-emp">
<h2>Example: Drawing Graphs of Projectile Motion</h2>
<div class="ns-school-defn">
<h3>Question</h3>
<div>
<p>Stanley is standing on a balcony $\text{20}$ $\text{m}$ above the ground. Stanley tosses a rubber ball upwards with an initial velocity of $\text{4.9}$ $\text{m·s $^{-1}$}$. The ball travels upwards to a maximum height, and then falls to the ground. Draw graphs of position vs time, velocity vs time and acceleration vs time. Choose upwards as the positive direction.</p>
</div>
<div>
<h3>Step 1: Determine what is required</h3>
<p>We are required to draw graphs of:</p>
<ol>
<li>$\vec{x}$ vs $t$</li>
<li>$\vec{v}$ vs $t$</li>
<li>$\vec{a}$ vs $t$</li>
</ol>
</div>
<div>
<h3>Step 2: Determine how to approach the problem</h3>
<p>There are two parts to the motion of the ball:</p>
<ol>
<li>ball travelling upwards from the building</li>
<li>ball falling to the ground</li>
</ol>
<p>We examine each of these parts separately. To be able to draw the graphs, we need to determine the time taken and displacement for each of the motions.</p>
</div>
<div>

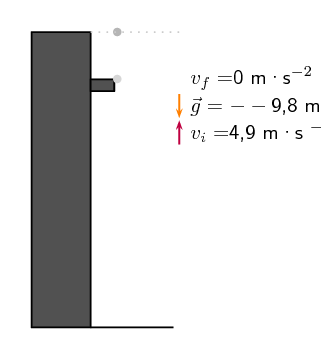

<h3>Step 3: Find the height and the time taken for the first motion</h3>
<p>For the first part of the motion we have:</p>
<ul>
<li>$\vec{v}_{i}= \text{+4.9}\text{ m·s $^{-1}$}$</li>
<li>$\vec{v}_{f}= \text{0}\text{ m·s $^{-1}$}$</li>
<li>$\vec{g}= -\text{9.8}\text{ m·s $^{-2}$}$</li>
</ul>
<img alt="65f988a6c607e8ca1f6046b2a9c5c1af.png" src="https://data.ulearngo.com/assets/a2cec3d0-5280-4b8f-afc0-e8c9e608da13"/>
<p>Therefore we can use $\vec{v}_{f}^{2}=\vec{v}_{i}^{2}+2\vec{g}\Delta \vec{x}$ to solve for the height and $\vec{v}_{f}=\vec{v}_{i}+\vec{g}t$ to solve for the time.</p>

\begin{align*} \vec{v}_{f}^{2}&amp; = \vec{v}_{i}^{2}+2\vec{g}\Delta \vec{x} \\ {\left(0\right)}^{2}&amp; = {\left( \text{4,9}\right)}^{2}+2\times \left(-\text{9,8}\right)\times \Delta \vec{x} \\ \text{19,6}\Delta x&amp; = {\left(\text{4,9}\right)}^{2} \\ \Delta \vec{x}&amp; = + \text{1,225}\text{ m} \\ h &amp; = \Delta x = \text{1,225}\text{ m} \end{align*}\begin{align*} \vec{v}_{f}&amp; = \vec{v}_{i}+\vec{g}t \\ 0&amp; = \text{4,9}+\left( -\text{9,8}\right)\times t \\ \text{9,8}t&amp; = \text{4,9}\\ t&amp; = \text{0,5}\text{ s} \end{align*}</div>
<div>

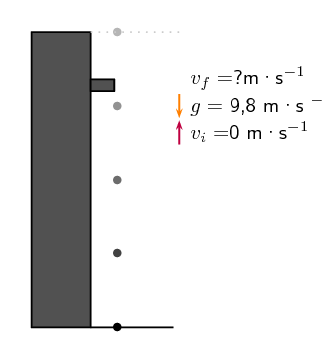

<h3>Step 4: Find the height and the time taken for the second motion</h3>
<img alt="251f56e4e973568b0a601c557e01c653.png" src="https://data.ulearngo.com/assets/ad9778eb-7531-4419-9bfe-b1eb1175b65d"/>

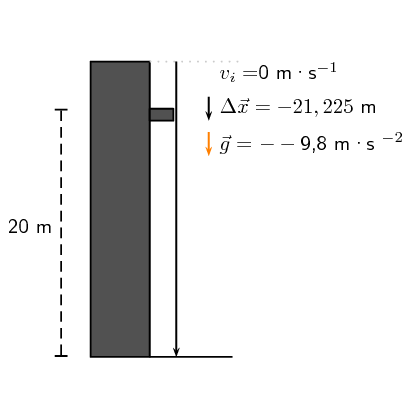

<p>For the second part of the motion we have:</p>
<ul>
<li>$\vec{v}_{i}=\text{0}\text{ m·s$^{-1}$}$</li>
<li>$\Delta \vec{x}=-\left(\text{20}+\text{1.225}\right) \text{m}$</li>
<li>$\vec{g}= -\text{9.8}\text{ m·s $^{-2}$}$</li>
</ul>
<p>Therefore we can use $\Delta \vec{x}=\vec{v}_{i}t+\frac{1}{2}\vec{g}{t}^{2}$ to solve for the time.</p>

\begin{align*} \Delta \vec{x}&amp; = \vec{v}_{i}t+\frac{1}{2}\vec{g}{t}^{2} \\ -\left(\text{20}+\text{1,225}\right)&amp; = \left(0\right)\times t+\frac{1}{2}\times \left( -\text{9,8}\right)\times {t}^{2} \\ -\text{21,225}&amp; = 0 -\text{4,9}{t}^{2} \\ {t}^{2}&amp; = \text{4,33163}... \\ t&amp; = \text{2,08125}\text{ s} \end{align*}<img alt="921f03aba0f036866d00b76d79a8ccef.png" src="https://data.ulearngo.com/assets/2d547566-6130-4a6a-8b8b-cd0101847c67"/></div>
<div>

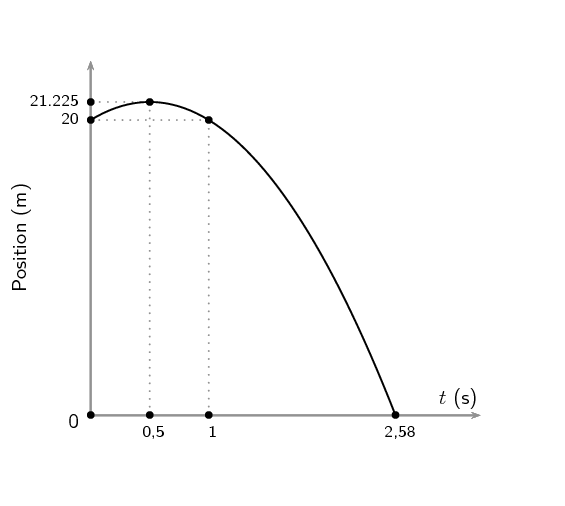

<h3>Step 5: Graph of position vs time</h3>
<p>The ball starts from a position of $\text{20}$ $\text{m}$ (at t = $\text{0}$ $\text{s}$) from the ground and moves upwards until it reaches $\text{20}$+$\text{1.225}$ $\text{m}$ (at $t=\text{0.5}\text{ s}$). It then falls back to $\text{20}$ $\text{m}$ (at $t=\text{0.5}+\text{0.5}= \text{1.0}\text{s}$) and then falls to the ground, $\Delta \vec{x}=\text{0}\text{ m}$ (at $t=\text{0.5}+\text{2.08}=\text{2.58}~\text{s}$).</p>
<img alt="cd9db29a930a75061c0c6b40bf6f66da.png" src="https://data.ulearngo.com/assets/8b9c91df-9440-4ca7-bc90-ad7484021ea6"/></div>
<div>

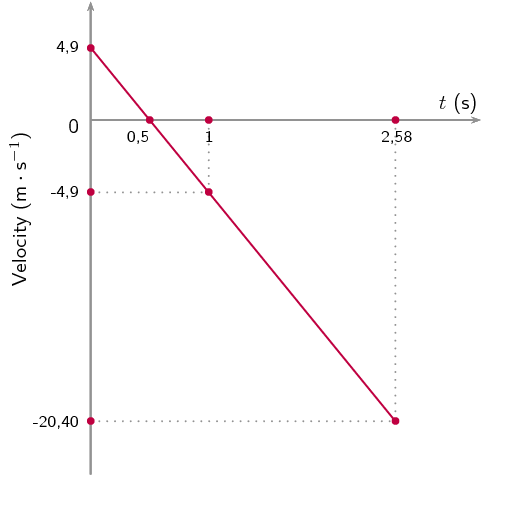

<h3>Step 6: Graph of velocity vs time</h3>
<p>The ball starts off with a velocity of $\text{+4.9}$ $\text{m·s $^{-1}$}$ at t = $\text{0}$ $\text{s}$, it then reaches a velocity of $\text{0}$ $\text{m·s $^{-1}$}$ at t = $\text{0.5}$ $\text{s}$. It stops and falls back to the Earth. At t = $\text{1.0}$ $\text{s}$ (i.e. after a further $\text{0.5}$ $\text{s}$) it has a velocity of $-\text{4.9}$ $\text{m·s $^{-1}$}$. This is the same as the initial upwards velocity but it is downwards. It carries on at constant acceleration until $t=\text{2.58}\text{ s}$. In other words, the velocity graph will be a straight line. The final velocity of the ball can be calculated as follows:</p>

\begin{align*} \vec{v}_{f}&amp; = \vec{v}_{i}+\vec{g}t \\ &amp; = 0+\left( -\text{9,8}\right)\left( \text{2,08}...\right) \\ &amp; = -\text{20,396}... \text{m}·{\text{s}}^{-1} \end{align*}<img alt="3d80e1000391e36aa4bf19ebae99f693.png" src="https://data.ulearngo.com/assets/60ba14d0-87c5-4b08-bc5f-0fd3b49501c3"/></div>
<div>

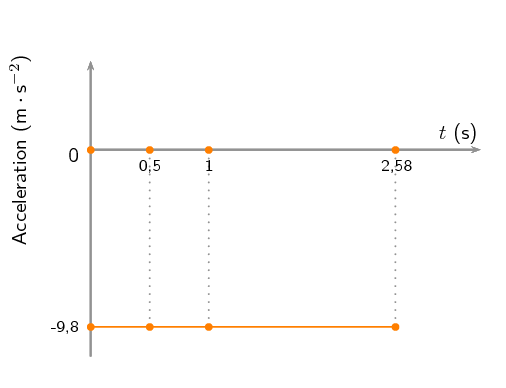

<h3>Step 7: Graph of $a$ vs $t$</h3>
<p>We chose upwards to be positive. The acceleration of the ball is downward, $\vec{g}= \text{9.8}\text{ m·s $^{-2}$}$ downwards. Because the acceleration is constant throughout the motion, the graph looks like this:</p>
<img alt="29155da30cd21c2f5c4f449bb8f5a8b2.png" src="https://data.ulearngo.com/assets/b208b589-cf5d-4e46-bef0-1a3db6a868c0"/></div>
</div>
</div>
