<p>The following example further illustrates projectile motion using a hot-air balloon.</p>
<div class="ns-school-emp">
<h2>Example: Hot Air Balloon</h2>
<div class="ns-school-defn">
<h3>Question</h3>
<div>

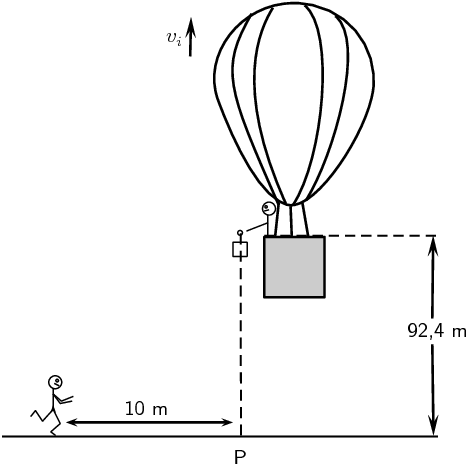

<p>A hot-air balloon is moving vertically upwards at a constant speed. A camera is accidentally dropped from the balloon at a height of $\text{92.4}$ $\text{m}$ as shown in the diagram below. The camera strikes the ground after $\text{6}$ $\text{s}$. Ignore the effects of friction.</p>
<img alt="0ae046ec701be47ab2d8c15ac91b9548.png" src="https://data.ulearngo.com/assets/374682cf-2419-4d3d-bfb3-9344c022d6e6"/>
<ol>
<li>
<p>At the instant the camera is dropped, it moves upwards. Give a reason for this observation.</p>
</li>
<li>
<p>Calculate the speed $v_i$ at which the balloon is rising when the camera is dropped.</p>
</li>
<li>
<p>Draw a sketch graph of velocity versus time for the entire motion of the camera.</p>
<p>Indicate the following on the graph:</p>
<ul>
<li>Initial velocity</li>
<li>Time at which it reaches the ground</li>
</ul>
</li>
<li>
<p>If a jogger, $\text{10}$ $\text{m}$ away from point <strong>P</strong> as shown in the above diagram and running at a constant speed of $\text{2}$ $\text{m·s$^{-1}$}$, sees the camera at the same instant it starts falling from the balloon, will he be able to catch the camera before it strikes the ground?</p>
<p>Use a calculation to show how you arrived at the answer.</p>
</li>
</ol>
</div>
<h3><strong>Question 1 Solution</strong></h3>
<p>The initial velocity / speed of the camera is the same (as that of the balloon).</p>
<h3><strong>Question 2 Solution</strong></h3>
<p><strong>Taking downwards as the positive direction:</strong></p>

\begin{align*} \Delta y &amp;= v_i \Delta t + \frac{1}{2} a \Delta t^2 \\ \therefore \text{92,4} &amp;= v_i (\text{6}) + \frac{1}{2} (\text{9,8}) (\text{6})^2 \\ \therefore v_i &amp;= -\text{14 m}\cdot\text{s}^{-1} \\ \therefore v_i &amp;= \text{14 m}\cdot\text{s}^{-1} \end{align*}

<p><strong>Taking downwards as the negative direction:</strong></p>

\begin{align*} \Delta y &amp;= v_i \Delta t + \frac{1}{2} a \Delta t^2 \\ \therefore -\text{92,4} &amp;= v_i (\text{6}) + \frac{1}{2} (-\text{9,8}) (\text{6})^2 \\ \therefore v_i &amp;= \text{14 m}\cdot\text{s}^{-1} \end{align*}

<h3><strong>Question 3 Solution</strong></h3>

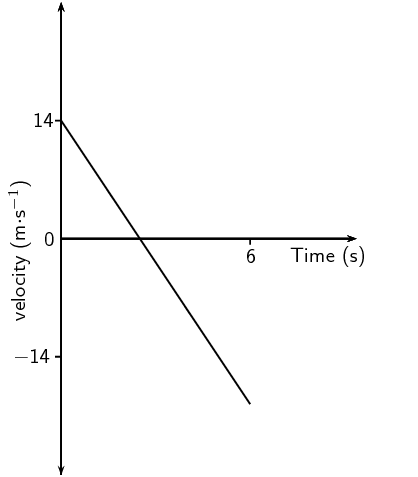

<p><strong>Taking downwards as the positive direction:</strong></p>
<img alt="02a15ba4712290dfce203490528ba9e0.png" src="https://data.ulearngo.com/assets/02159b19-fd5b-4f39-80a7-1f995c1c912f"/>
<p><strong>Criteria for graph:</strong></p>
<ul>
<li>Correct shape as shown. (Straight line with gradient.)</li>
<li>Graph starts at $v = \text{14 m}\cdot\text{s}^{-1}\ /\ v_i$ at $t = \text{0 s}.$</li>
<li>Graph extends below $t$ axis until $t = \text{6 s}.$</li>
<li>Section of graph below $t$ axis is longer than section above $t$ axis.</li>
</ul>
<p><strong>Taking downwards as the negative direction:</strong></p>
<img alt="ad3283d5be696c8dd87d8fd7cf7d043f.png" src="https://data.ulearngo.com/assets/1d1f8faf-55ef-48dd-a423-a5d0aaaad4cd"/>
<p><strong>Criteria for graph:</strong></p>
<ul>
<li>Correct shape as shown. (Straight line with gradient.)</li>
<li>Graph starts at $v = -\text{14 m}\cdot\text{s}^{-1}\ /\ v_i$ at $t = \text{0 s}.$</li>
<li>Graph extends above $t$ axis until $t = \text{6 s}.$</li>
<li>Section of graph above $t$ axis is longer than section below $t$ axis.</li>
</ul>
<h3><strong>Question 4 Solution</strong></h3>
<p><strong>Option 1:</strong></p>

\begin{align*} \Delta x &amp;= v \Delta t \\ \therefore \text{10} &amp;= (\text{2}) \Delta t \\ \therefore \Delta t &amp;= \text{5 s} \end{align*}

<p>Yes, he will catch the camera since the time is less than $\text{6}$ $\text{s}$.</p>
<p><strong>Option 2:</strong></p>

\begin{align*} \Delta x &amp; = v \Delta t \\ \therefore &amp; = (\text{2})(\text{6}) \\ \therefore &amp; = \text{12 m} \end{align*}

<p>Yes, he will catch the camera since the distance covered is greater than $\text{10}$ $\text{m}$.</p>
<p><strong>Option 3:</strong></p>

\begin{align*} \Delta x &amp; = v_i \Delta t + \frac{1}{2} a \Delta t^2 \\ \therefore \text{10} &amp; = (\text{2})\Delta t + \frac{1}{2}(\text{0})\Delta t^2 \\ \therefore \Delta t &amp; = \text{5 t} \end{align*}

<p>Yes, he will catch the camera since the time is less than $\text{6}$ $\text{s}$.</p>
<p><strong>Option 4:</strong></p>

\begin{align*} \Delta x &amp; = \left( \frac{v_i+v_f}{2} \right ) \Delta t \\ \therefore \text{10} &amp; = \left( \frac{\text{2}+\text{2}}{2} \right ) \Delta t \\ \therefore \Delta t &amp; = \text{5 t} \end{align*}

<p>Yes, he will catch the camera since the time is less than $\text{6}$ $\text{s}$.</p>
<p><strong>Option 5:</strong></p>

\begin{align*} \Delta x &amp; = \left( \frac{v_i+v_f}{2} \right ) \Delta t \\ &amp; = \left( \frac{\text{2}+\text{2}}{2} \right )(\text{6}) \\ \therefore \Delta x &amp; = \text{12 m} \end{align*}

<p>Yes, he will catch the camera since the distance covered is greater than $\text{10}$ $\text{m}$.</p>
</div>
</div>
