<h2>Motion at Constant Acceleration</h2>
<p>The final situation we will be studying is motion at <em>constant acceleration</em>. We know that acceleration is the rate of change of velocity. So, if we have a constant acceleration, this means that the velocity changes at a constant rate.</p>

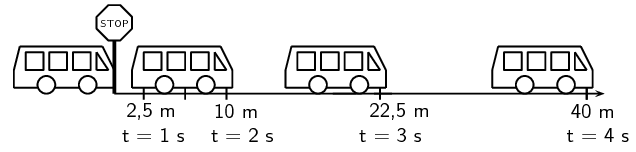

<p>Let's look at our first example of Vivian waiting at the taxi stop again. A taxi arrived and Vivian got in. The taxi stopped at the stop street and then accelerated in the positive direction as follows: After $\text{1}$ $\text{s}$ the taxi covered a distance of $\text{2.5}$ $\text{m}$, after $\text{2}$ $\text{s}$ it covered $\text{10}$ $\text{m}$, after $\text{3}$ $\text{s}$ it covered $\text{22.5}$ $\text{m}$ and after $\text{4}$ $\text{s}$ it covered $\text{40}$ $\text{m}$. The taxi is covering a larger distance every second. This means that it is accelerating.</p>
<p><img alt="339799b017c3f0a4011a399445656584.png" src="https://data.ulearngo.com/assets/4addf65a-503d-46e7-9372-edfdc69664f0"/></p>
<p>To calculate the velocity of the taxi you need to calculate the gradient of the line at each second:</p>
<p>\begin{align*} \vec{v}_{1s} &amp; = \frac{\Delta \vec{x}}{\Delta t} \\ &amp; = \frac{{\vec{x}}_{f} - {\vec{x}}_{i}}{{t}_{f} - {t}_{i}} \\ &amp; = \frac{\text{5}\text{ m} - \text{0}\text{ m}}{\text{1,5}\text{ s} - \text{0,5}\text{ s}} \\ &amp; = \text{5}\text{ m·s$^{-1}$} \end{align*}\begin{align*} \vec{v}_{2s} &amp; = \frac{\Delta \vec{x}}{\Delta t} \\ &amp; = \frac{{\vec{x}}_{f} - {\vec{x}}_{i}}{{t}_{f} - {t}_{i}} \\ &amp; = \frac{\text{15}\text{ m} - \text{5}\text{ m}}{\text{2,5}\text{ s} - \text{1,5}\text{ s}} \\ &amp; = \text{10}\text{ m·s$^{-1}$} \end{align*}\begin{align*} \vec{v}_{1s} &amp; = \frac{\Delta \vec{x}}{\Delta t} \\ &amp; = \frac{{\vec{x}}_{f} - {\vec{x}}_{i}}{{t}_{f} - {t}_{i}} \\ &amp; = \frac{\text{30}\text{ m} - \text{15}\text{ m}}{\text{3,5}\text{ s} - \text{2,5}\text{ s}} \\ &amp; = \text{15}\text{ m·s$^{-1}$} \end{align*}</p>

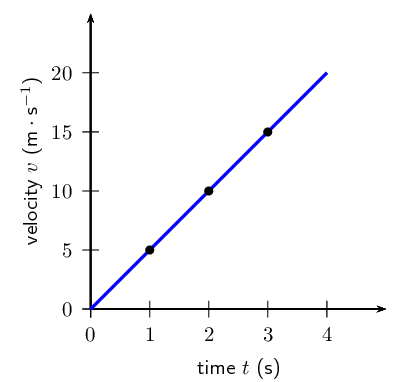

<p>From these velocities, we can draw the velocity-time graph which forms a straight line.</p>
<p>The acceleration is the gradient of the $v$ vs. $t$ graph and can be calculated as follows:</p>
<p>\begin{align*} a &amp; = \frac{\Delta \vec{v}}{\Delta t} \\ &amp; = \frac{{\vec{v}}_{f} - {\vec{v}}_{i}}{{t}_{f} - {t}_{i}} \\ &amp; = \frac{\text{15}\text{ m·s$^{-1}$} - \text{5}\text{ m·s$^{-1}$}}{\text{3}\text{ s} - \text{1}\text{ s}} \\ &amp; = \text{5}\text{ m·s$^{-2}$} \end{align*}</p>
<p>The acceleration does not change during the motion (the gradient stays constant). This is motion at constant or uniform acceleration.</p>

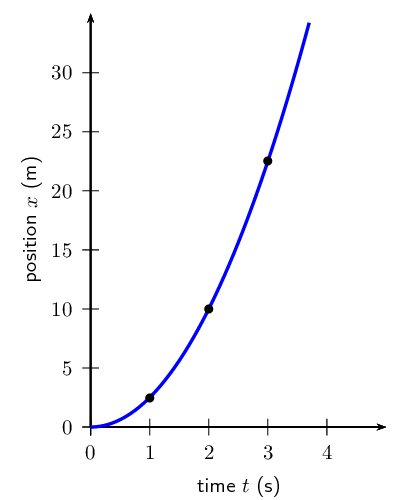

<p>The graphs for this situation are shown below:</p>
<p><img alt="a20c75e9f5d2484da2e62fa56374ae3f.png" class="alignnone" src="https://data.ulearngo.com/assets/63ba7613-4184-4d19-8fdd-9343b25f3a2a"/></p>
<p><img alt="5aedb1818097811a4d3e5f1389a155d6.png" src="https://data.ulearngo.com/assets/eb00a8d6-20eb-46bc-8169-dd1bb3072e26"/></p>

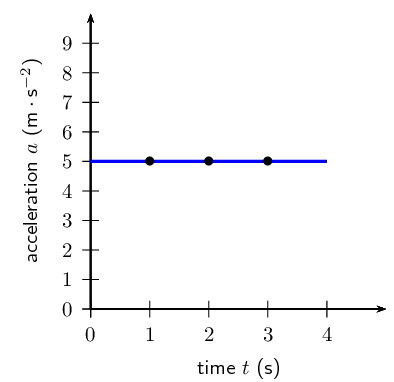

<div class="wp-caption alignnone" style="width: 394px"><img alt="f1437efd166a2f8db77befdd38af5f7f.png" height="382" src="https://data.ulearngo.com/assets/9ca5bd40-b45a-4240-9596-8203aba323f5" width="394"/><p class="wp-caption-text">Graphs for motion with a constant acceleration starting from rest.</p></div>
<h2>Velocity From Acceleration vs. Time Graphs</h2>
<section>
<p>Just as we used velocity vs. time graphs to find displacement, we can use acceleration vs. time graphs to find the velocity of an object at a given moment in time. We simply calculate the area under the acceleration vs. time graph, at a given time. In the graph below, showing an object at a constant positive acceleration, the increase in velocity of the object after $\text{2}$ seconds corresponds to the shaded portion.</p>

\begin{align*} v = \text{ area of rectangle } &amp; = a\times \Delta t \\ &amp; = \text{5}\text{ m·s$^{-2}$} \times \text{2}\text{ s} \\ &amp; = \text{10}\text{ m·s$^{-1}$} \end{align*}

<p>The velocity of the object at $t = \text{2}\text{ s}$ is therefore $\text{10}$ $\text{m·s$^{-1}$}$.</p>
