Transverse and Longitudinal Waves

A simple wave consists of a periodic disturbance that propagates from one place to another. The wave in this figure propagates in the horizontal direction while the surface is disturbed in the vertical direction. Such a wave is called a transverse wave or shear wave; in such a wave, the disturbance is perpendicular to the direction of propagation. In contrast, in a longitudinal wave or compressional wave, the disturbance is parallel to the direction of propagation. This figure shows an example of a longitudinal wave. The size of the disturbance is its amplitude X and is completely independent of the speed of propagation \({v}_{\text{w}}\).

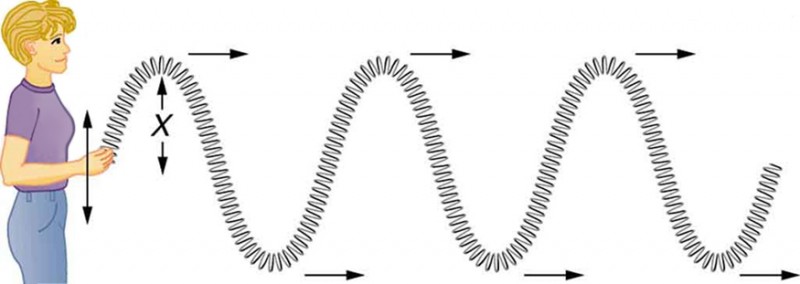

The figure shows a woman holding a long spring in her hand and moving it up and down causing it to move in a zigzag manner away from her. It is an example of a transverse wave, the wave propagates horizontally. The direction of motion of the wave is shown with the help of right arrows at each crest and trough.

In this example of a transverse wave, the wave propagates horizontally, and the disturbance in the cord is in the vertical direction.

The figure shows a woman standing at left pushing a long spring in to and fro motion in horizontal direction away from her without moving her hand up and down. The cord stretches and contracts back and forth. This is an example of a longitudinal wave, the wave propagates horizontally. At some points the spring is compressed and at some other points the spring is expanded. One contracted part is equal to the amplitude X.

In this example of a longitudinal wave, the wave propagates horizontally, and the disturbance in the cord is also in the horizontal direction.

Waves may be transverse, longitudinal, or a combination of the two. (Water waves are actually a combination of transverse and longitudinal. The simplified water wave illustrated in this figure shows no longitudinal motion of the bird.) The waves on the strings of musical instruments are transverse—so are electromagnetic waves, such as visible light.

Sound waves in air and water are longitudinal. Their disturbances are periodic variations in pressure that are transmitted in fluids. Fluids do not have appreciable shear strength, and thus the sound waves in them must be longitudinal or compressional. Sound in solids can be both longitudinal and transverse.

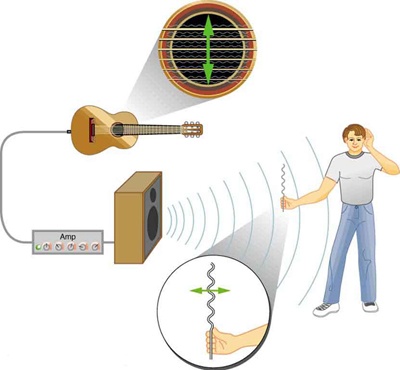

The figure shows a guitar connected to an amplifier and a man holding a sheet of paper facing the speaker attached to the amplifier. The strings of the guitar when played cause transverse waves. On the other hand, the sound of the guitar creates ripples on the sheet of paper causing it to rattle in a direction that shows that the sound waves are longitudinal.

The wave on a guitar string is transverse. The sound wave rattles a sheet of paper in a direction that shows the sound wave is longitudinal.

Earthquake waves under Earth’s surface also have both longitudinal and transverse components (called compressional or P-waves and shear or S-waves, respectively). These components have important individual characteristics—they propagate at different speeds, for example. Earthquakes also have surface waves that are similar to surface waves on water.

Check Your Understanding

Why is it important to differentiate between longitudinal and transverse waves?

Solution

In the different types of waves, energy can propagate in a different direction relative to the motion of the wave. This is important to understand how different types of waves affect the materials around them.

PhET Explorations: Wave on a String

Watch a string vibrate in slow motion. Wiggle the end of the string and make waves, or adjust the frequency and amplitude of an oscillator. Adjust the damping and tension. The end can be fixed, loose, or open.
