Entropy and the Unavailability of Energy to Do Work

What does a change in entropy mean, and why should we be interested in it? One reason is that entropy is directly related to the fact that not all heat transfer can be converted into work. The next example gives some indication of how an increase in entropy results in less heat transfer into work.

Example: Less Work is Produced by a Given Heat Transfer When Entropy Change is Greater

(a) Calculate the work output of a Carnot engine operating between temperatures of 600 K and 100 K for 4000 J of heat transfer to the engine. (b) Now suppose that the 4000 J of heat transfer occurs first from the 600 K reservoir to a 250 K reservoir (without doing any work, and this produces the increase in entropy calculated above) before transferring into a Carnot engine operating between 250 K and 100 K. What work output is produced? (See the figure below.)

Strategy

In both parts, we must first calculate the Carnot efficiency and then the work output.

Solution (a)

The Carnot efficiency is given by

\({\text{Eff}}_{\text{C}}=1-\cfrac{{T}_{\text{c}}}{{T}_{\text{h}}}\text{.}\)

Substituting the given temperatures yields

\({\text{Eff}}_{\text{C}}=1-\cfrac{\text{100 K}}{\text{600 K}}=0\text{.}\text{833}\text{.}\)

Now the work output can be calculated using the definition of efficiency for any heat engine as given by

\(\text{Eff}=\cfrac{W}{{Q}_{\text{h}}}\text{.}\)

Solving for \(W\) and substituting known terms gives

\(\begin{array}{lll}W& =& {\text{Eff}}_{\text{C}}{Q}_{\text{h}}\\ & =& (0.833)(\text{4000}\phantom{\rule{0.25em}{0ex}}\text{J})=\text{3333 J.}\end{array}\)

Solution (b)

Similarly,

\({\text{Eff}\prime }_{\text{C}}=1-\cfrac{{T}_{\text{c}}}{{\text{T′}}_{\text{c}}}=\text{1}-\cfrac{\text{100 K}}{\text{250 K}}=0.600,\)

so that

\(\begin{array}{lll}W& =& {\text{Eff}\prime }_{\text{C}}{Q}_{h}\\ & =& (0.600)(\text{4000 J})=\text{2400 J.}\end{array}\)

Discussion

There is 933 J less work from the same heat transfer in the second process. This result is important. The same heat transfer into two perfect engines produces different work outputs, because the entropy change differs in the two cases. In the second case, entropy is greater and less work is produced. Entropy is associated with the unavailability of energy to do work.

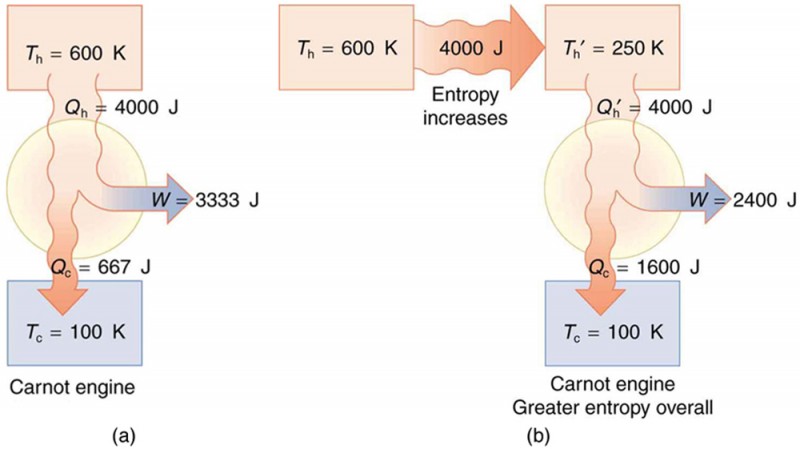

Part a of the diagram shows a schematic diagram of a Carnot engine shown as a circle. The hot reservoir is shown as a rectangular section above the circle at temperature T sub h equals six hundred Kelvin. The cold reservoir is shown as a rectangular section below the circle at temperature T sub c equals one hundred Kelvin. A heat Q sub h from the hot reservoir equals four thousand joules is shown to enter the engine as shown as a bold arrow toward the circle from the hot reservoir. A part of it leaves as work W equals three thousand three hundred thirty three joules from the engine. The remaining heat Q sub c equals six hundred sixty seven joules is returned back to the cold reservoir as shown by a bold arrow toward it. Part b of the diagram shows a schematic diagram of a Carnot engine shown as a circle. This engine is shown to have a greater entropy level. An initial heat transfer of four thousand joules occurs from a hot reservoir shown as a rectangular section above the circle toward left at temperature T sub h equals six hundred Kelvin to another rectangular section above the circle at temperature T sub h prime equals two fifty Kelvin. The cold reservoir is shown as a rectangular section below the circle at temperature T sub c prime equals one hundred Kelvin. A heat Q sub h prime from the hot reservoir equals four thousand joules is shown to enter the engine as shown as a bold arrow toward the circle from this hot reservoir. A part of it leaves as work W equals two thousand four hundred joules from the engine. The remaining heat Q sub c equals one thousand six hundred joules is returned back to the cold reservoir as shown by a bold arrow toward it.

(a) A Carnot engine working at between 600 K and 100 K has 4000 J of heat transfer and performs 3333 J of work. (b) The 4000 J of heat transfer occurs first irreversibly to a 250 K reservoir and then goes into a Carnot engine. The increase in entropy caused by the heat transfer to a colder reservoir results in a smaller work output of 2400 J. There is a permanent loss of 933 J of energy for the purpose of doing work.

When entropy increases, a certain amount of energy becomes permanently unavailable to do work. The energy is not lost, but its character is changed, so that some of it can never be converted to doing work—that is, to an organized force acting through a distance. For instance, in the previous example, 933 J less work was done after an increase in entropy of 9.33 J/K occurred in the 4000 J heat transfer from the 600 K reservoir to the 250 K reservoir. It can be shown that the amount of energy that becomes unavailable for work is

\({W}_{\text{unavail}}=\Delta S\cdot {T}_{0}\text{,}\)

where \({T}_{0}\) is the lowest temperature utilized. In the previous example,

\({W}_{\text{unavail}}=(9\text{.}\text{33 J/K})(\text{100 K})=933 J\)

as found.
