Temperature Ranges in the Universe

Temperature Ranges in the Universe

The figure below shows the wide range of temperatures found in the universe. Human beings have been known to survive with body temperatures within a small range, from \(\text{24}\text{º}\text{C}\) to \(\text{44}\text{º}\text{C}\) to \(\text{111}\text{º}\text{F}\)). The average normal body temperature is usually given as \(\text{37}\text{.}0\text{º}\text{C}\) (\(\text{98}\text{.}6\text{º}\text{F}\)), and variations in this temperature can indicate a medical condition: a fever, an infection, a tumor, or circulatory problems (see the figure below).

This image of radiation from a person’s body (an infrared thermograph) shows the location of temperature abnormalities in the upper body. Dark blue corresponds to cold areas and red to white corresponds to hot areas. An elevated temperature might be an indication of malignant tissue (a cancerous tumor in the breast, for example), while a depressed temperature might be due to a decline in blood flow from a clot. In this case, the abnormalities are caused by a condition called hyperhidrosis. (credit: Porcelina81, Wikimedia Commons)

The lowest temperatures ever recorded have been measured during laboratory experiments: \(4\text{.}5×{\text{10}}^{–\text{10}}\phantom{\rule{0.25em}{0ex}}\text{K}\) at the Massachusetts Institute of Technology (USA), and \(1\text{.}0×{\text{10}}^{–\text{10}}\phantom{\rule{0.25em}{0ex}}\text{K}\) at Helsinki University of Technology (Finland). In comparison, the coldest recorded place on Earth’s surface is Vostok, Antarctica at 183 K \((–\text{89}\text{º}\text{C})\), and the coldest place (outside the lab) known in the universe is the Boomerang Nebula, with a temperature of 1 K.

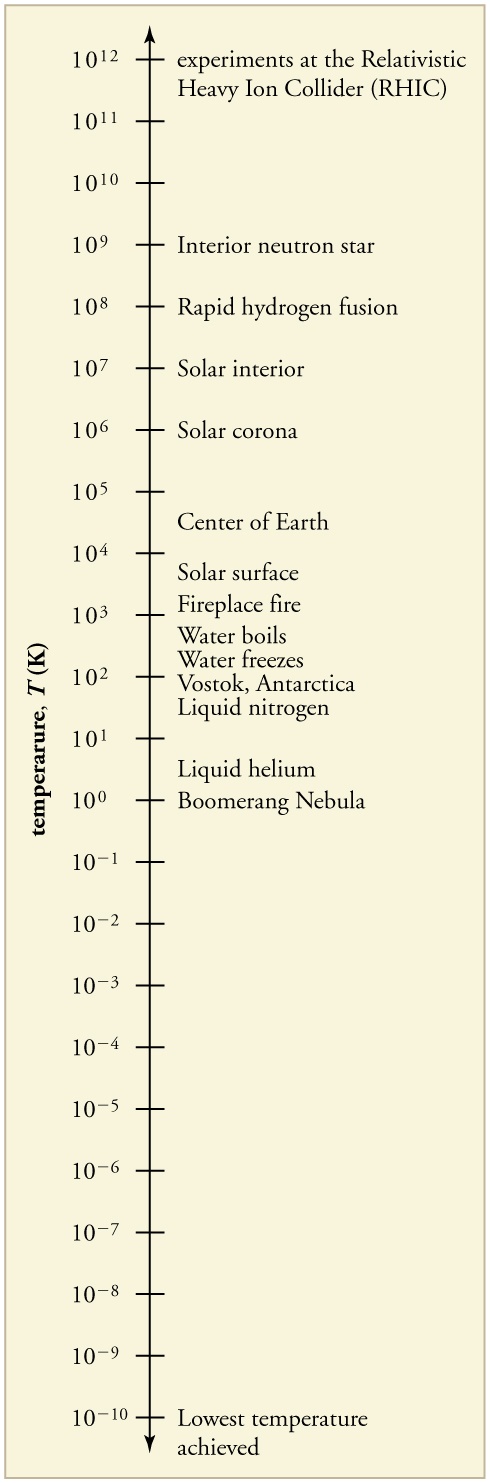

Each increment on this logarithmic scale indicates an increase by a factor of ten, and thus illustrates the tremendous range of temperatures in nature. Note that zero on a logarithmic scale would occur off the bottom of the page at infinity.

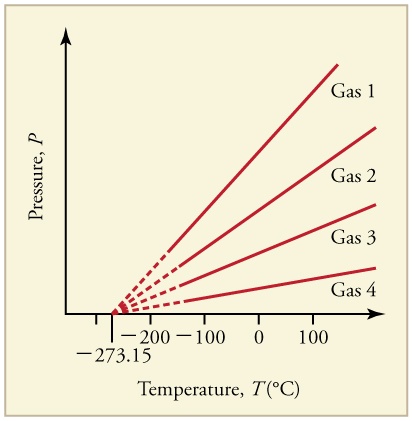

Graph of pressure versus temperature for various gases kept at a constant volume. Note that all of the graphs extrapolate to zero pressure at the same temperature.

Thermal Equilibrium and the Zeroth Law of Thermodynamics

Thermometers actually take their own temperature, not the temperature of the object they are measuring. This raises the question of how we can be certain that a thermometer measures the temperature of the object with which it is in contact. It is based on the fact that any two systems placed in thermal contact (meaning heat transfer can occur between them) will reach the same temperature. That is, heat will flow from the hotter object to the cooler one until they have exactly the same temperature. The objects are then in thermal equilibrium, and no further changes will occur. The systems interact and change because their temperatures differ, and the changes stop once their temperatures are the same. Thus, if enough time is allowed for this transfer of heat to run its course, the temperature a thermometer registers does represent the system with which it is in thermal equilibrium. Thermal equilibrium is established when two bodies are in contact with each other and can freely exchange energy.

Furthermore, experimentation has shown that if two systems, A and B, are in thermal equilibrium with each another, and B is in thermal equilibrium with a third system C, then A is also in thermal equilibrium with C. This conclusion may seem obvious, because all three have the same temperature, but it is basic to thermodynamics. It is called the zeroth law of thermodynamics.

This law was postulated in the 1930s, after the first and second laws of thermodynamics had been developed and named. It is called the zeroth law because it comes logically before the first and second laws (discussed in Thermodynamics). An example of this law in action is seen in babies in incubators: babies in incubators normally have very few clothes on, so to an observer they look as if they may not be warm enough. However, the temperature of the air, the cot, and the baby is the same, because they are in thermal equilibrium, which is accomplished by maintaining air temperature to keep the baby comfortable.
