<h2>Drawing Vectors</h2>
<p>In order to draw a vector accurately we must represent its magnitude properly and include a reference direction in the diagram. A scale allows us to translate the length of the arrow into the vector's magnitude. For instance if one chooses a scale of $\text{1}$ $\text{cm}$ = $\text{2}$ $\text{N}$ ($\text{1}$ $\text{cm}$ represents $\text{2}$ $\text{N}$), a force of $\text{20}$ $\text{N}$ towards the East would be represented as an arrow $\text{10}$ $\text{cm}$ long pointing towards the right. The points of a compass are often used to show direction or alternatively an arrow pointing in the reference direction.</p>
<p><img alt="d822bcf5685d4792695293a5534c37ab.png" src="https://data.ulearngo.com/assets/afff3d13-847c-435c-9432-5a2eb20f5eb9"/></p>
<h3><strong>Method: Drawing Vectors</strong></h3>
<ol>
<li>
<p>Decide upon a scale and write it down.</p>
</li>
<li>
<p>Decide on a reference direction</p>
</li>
<li>
<p>Determine the length of the arrow representing the vector, by using the scale.</p>
</li>
<li>
<p>Draw the vector as an arrow. Make sure that you fill in the arrow head.</p>
</li>
<li>
<p>Fill in the magnitude of the vector.</p>
</li>
</ol>
<div class="ns-school-emp">
<h3>Example 1</h3>
<div class="ns-school-defn">
<h4>Question</h4>
<div>
<p>Draw the following vector quantity: $\vec{v} = \text{6}\text{ m·s$^{-1}$}$ North</p>
</div>
<div>
<h4>Step 1: Decide on a scale and write it down.</h4>
<p>$\text{1}$ $\text{ cm}$ = $\text{2}$ $\text{m·s$^{-1}$}$</p>
</div>
<div>
<h4>Step 2: Decide on a reference direction</h4>
<img alt="d36a8b7028381e67f45f62539e91b613.png" src="https://data.ulearngo.com/assets/f3bcdaf4-1533-4f47-9500-95acda0653dc"/></div>
<div>
<h4>Step 3: Determine the length of the arrow at the specific scale.</h4>
<p>If $\text{1}$ $\text{cm}$ = $\text{2}$ $\text{m·s$^{-1}$}$, then $\text{6}$ $\text{m·s$^{-1}$}$ = $\text{3}$ $\text{cm}$</p>
</div>
<div>
<h4>Step 4: Draw the vector as an arrow.</h4>
<p>Scale used: $\text{1}$ $\text{cm}$ = $\text{2}$ $\text{m·s$^{-1}$}$</p>
<img alt="8de51f8849b054eaeb2292bb7e5f1a31.png" src="https://data.ulearngo.com/assets/307fa133-bbc9-4ea8-871a-130324c4f1d9"/></div>
</div>
</div>
<div class="ns-school-emp">
<h3>Example 2</h3>
<div class="ns-school-defn">
<h4>Question</h4>
<div>
<p>Draw the following vector quantity: $\vec{s} = \text{16}\text{ m}$ east</p>
</div>
<div>
<h4>Step 1: Decide on a scale and write it down.</h4>
<p>$\text{1}$ $\text{cm}$ = $\text{4}$ $\text{m}$</p>
</div>
<div>

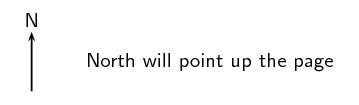

<h4>Step 2: Decide on a reference direction</h4>
<img alt="d36a8b7028381e67f45f62539e91b613.png" src="https://data.ulearngo.com/assets/c44abe53-4825-4c5b-9673-6347f5e822c9"/></div>
<div>
<h4>Step 3: Determine the length of the arrow at the specific scale.</h4>
<p>If $\text{1}$ $\text{cm}$ = $\text{4}$ $\text{m}$, then $\text{16}$ $\text{m}$ = $\text{4}$ $\text{cm}$</p>
</div>
<div>
<h4>Step 4: Draw the vector as an arrow</h4>
<p>Scale used: $\text{1}$ $\text{cm}$ = $\text{4}$ $\text{m}$</p>
<p>Direction = East</p>
<img alt="052f1da002675105035efe2037b75506.png" src="https://data.ulearngo.com/assets/61d77d01-9c6c-4107-95c7-5c69dc741e8f"/></div>
</div>
</div>
