Liquid Crystals and Other Polarization Effects in Materials

While you are undoubtedly aware of liquid crystal displays (LCDs) found in watches, calculators, computer screens, cellphones, flat screen televisions, and other myriad places, you may not be aware that they are based on polarization. Liquid crystals are so named because their molecules can be aligned even though they are in a liquid. Liquid crystals have the property that they can rotate the polarization of light passing through them by \(\text{90º}\). Furthermore, this property can be turned off by the application of a voltage, as illustrated in this figure. It is possible to manipulate this characteristic quickly and in small well-defined regions to create the contrast patterns we see in so many LCD devices.

In flat screen LCD televisions, there is a large light at the back of the TV. The light travels to the front screen through millions of tiny units called pixels (picture elements). One of these is shown in figure (a) and (b). Each unit has three cells, with red, blue, or green filters, each controlled independently. When the voltage across a liquid crystal is switched off, the liquid crystal passes the light through the particular filter. One can vary the picture contrast by varying the strength of the voltage applied to the liquid crystal.

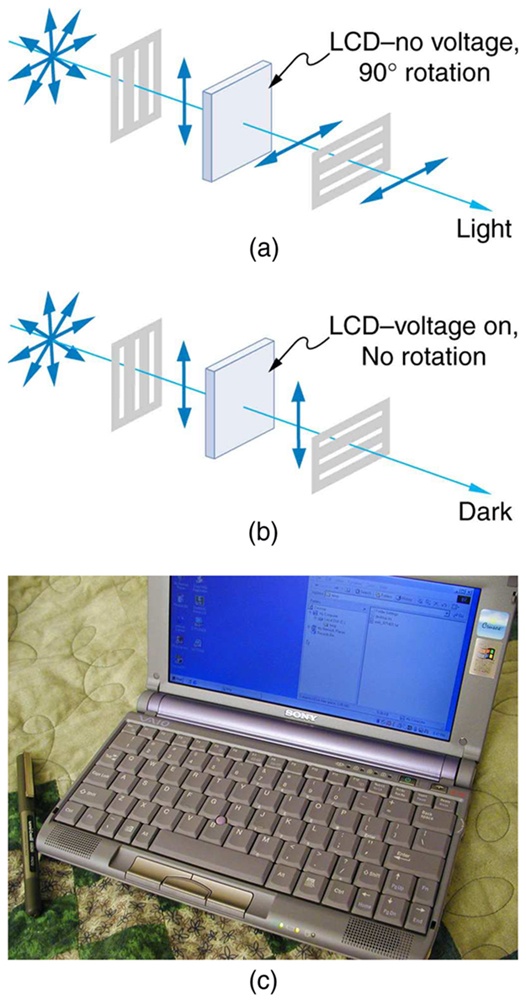

The figure contains two schematics and one photograph. The first schematic shows a ray of initially unpolarized light going through a vertical polarizer, then an element labeled L C D no voltage ninety degree rotation, then finally a horizontal polarizer. The initially unpolarized light becomes vertically polarized after the vertical polarizer, then is rotated ninety degrees by the L C D element so that it is horizontally polarized, then it passes through the horizontal polarizer. The second schematic is the same except that the L C D element is labeled voltage on, no rotation. The light coming out of the L C D element is thus vertically polarized and does not pass through the horizontal polarizer. Finally, a photograph is shown of a laptop computer that is open so that you can see its screen, which is on and has some icons and windows visible.

(a) Polarized light is rotated \(\text{90º}\) by a liquid crystal and then passed by a polarizing filter that has its axis perpendicular to the original polarization direction. (b) When a voltage is applied to the liquid crystal, the polarized light is not rotated and is blocked by the filter, making the region dark in comparison with its surroundings. (c) LCDs can be made color specific, small, and fast enough to use in laptop computers and TVs. (credit: Jon Sullivan)

Many crystals and solutions rotate the plane of polarization of light passing through them. Such substances are said to be optically active. Examples include sugar water, insulin, and collagen (see this figure). In addition to depending on the type of substance, the amount and direction of rotation depends on a number of factors. Among these is the concentration of the substance, the distance the light travels through it, and the wavelength of light. Optical activity is due to the asymmetric shape of molecules in the substance, such as being helical. Measurements of the rotation of polarized light passing through substances can thus be used to measure concentrations, a standard technique for sugars. It can also give information on the shapes of molecules, such as proteins, and factors that affect their shapes, such as temperature and pH.

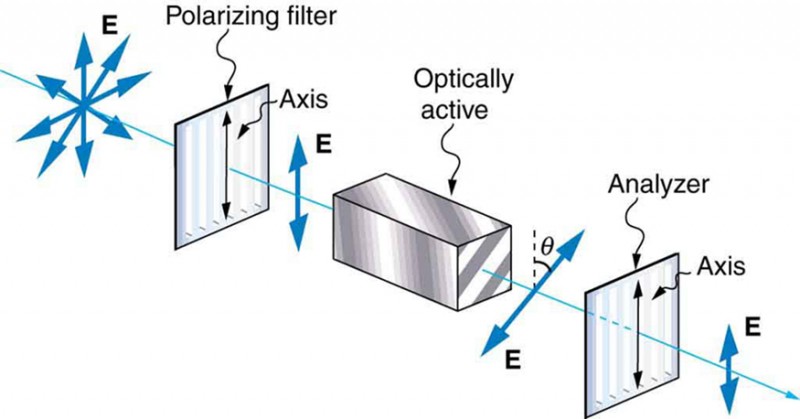

The schematic shows an initially unpolarized ray of light that passes through three optical elements. The first is a vertical polarizer, so the electric field is vertical after the ray passes through it. Next comes a block that is labeled optically active. Following this block the electric field has been rotated by an angle theta with respect to the vertical. In the schematic this angle is about forty five degrees. Finally, the ray passes through another vertical polarizer that is labeled analyzer. A shorter and vertically oriented electric field appears after this element.

Optical activity is the ability of some substances to rotate the plane of polarization of light passing through them. The rotation is detected with a polarizing filter or analyzer.

Glass and plastic become optically active when stressed; the greater the stress, the greater the effect. Optical stress analysis on complicated shapes can be performed by making plastic models of them and observing them through crossed filters, as seen in this figure. It is apparent that the effect depends on wavelength as well as stress. The wavelength dependence is sometimes also used for artistic purposes.

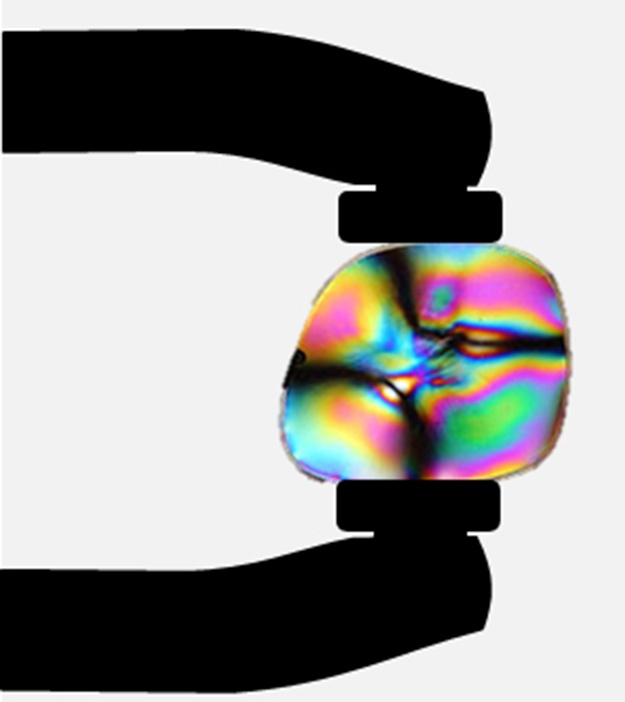

The figure shows a photograph of a transparent circular plastic lens that is being pinched between clamp fingers. The lens is deformed and rainbows of colors are visible whose outlines roughly follow the deformation of the object.

Optical stress analysis of a plastic lens placed between crossed polarizers. (credit: Infopro, Wikimedia Commons)

Another interesting phenomenon associated with polarized light is the ability of some crystals to split an unpolarized beam of light into two. Such crystals are said to be birefringent (see this figure). Each of the separated rays has a specific polarization. One behaves normally and is called the ordinary ray, whereas the other does not obey Snell’s law and is called the extraordinary ray. Birefringent crystals can be used to produce polarized beams from unpolarized light. Some birefringent materials preferentially absorb one of the polarizations. These materials are called dichroic and can produce polarization by this preferential absorption. This is fundamentally how polarizing filters and other polarizers work. The interested reader is invited to further pursue the numerous properties of materials related to polarization.

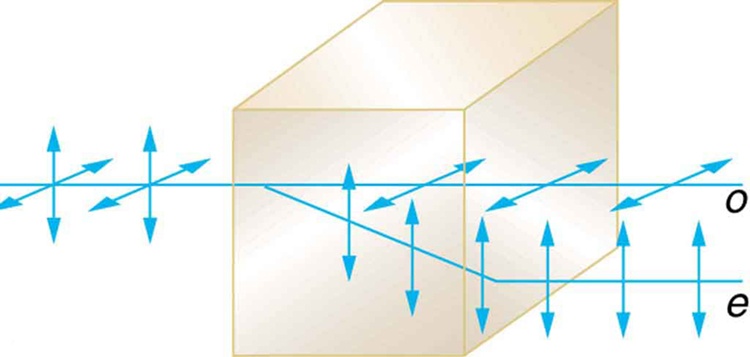

The schematic shows an unpolarized ray of light incident on a block of transparent material The ray is perpendicular to the face of the material. Upon entering the material, part of the ray continues straight on. This ray is horizontally polarized and is labeled o. Another part of the incident ray is deviated at an angle upon entering the material. This ray is vertically polarized and is labeled e.

Birefringent materials, such as the common mineral calcite, split unpolarized beams of light into two. The ordinary ray behaves as expected, but the extraordinary ray does not obey Snell’s law.
