We will now extend electrochemistry by determining the relationship between \({E}_{\text{cell}}^{°}\) and the thermodynamics quantities such as ΔG° (Gibbs free energy) and K (the equilibrium constant). In galvanic cells, chemical energy is converted into electrical energy, which can do work. The electrical work is the product of the charge transferred multiplied by the potential difference (voltage):
\(\text{electrical work}=\text{volts}\phantom{\rule{0.2em}{0ex}}×\phantom{\rule{0.2em}{0ex}}(\text{charge in coulombs})=\text{J}\)
The charge on 1 mole of electrons is given by Faraday’s constant (F)
\(F=\phantom{\rule{0.2em}{0ex}}\cfrac{6.022\phantom{\rule{0.2em}{0ex}}×\phantom{\rule{0.2em}{0ex}}{10}^{23}{\text{e}}^{\text{−}}}{\text{mol}}\phantom{\rule{0.4em}{0ex}}×\phantom{\rule{0.4em}{0ex}}\cfrac{1.602\phantom{\rule{0.3em}{0ex}}×\phantom{\rule{0.2em}{0ex}}{10}^{-19}\phantom{\rule{0.2em}{0ex}}\text{C}}{{\text{e}}^{\text{−}}}\phantom{\rule{0.2em}{0ex}}=9.648\phantom{\rule{0.3em}{0ex}}×\phantom{\rule{0.2em}{0ex}}{10}^{4}\cfrac{\text{C}}{\text{mol}}\phantom{\rule{0.2em}{0ex}}=9.648\phantom{\rule{0.3em}{0ex}}×\phantom{\rule{0.2em}{0ex}}{10}^{4}\cfrac{\text{J}}{\text{V·mol}}\)
\(\text{total charge}={(\text{number of moles of e}}^{\text{−}})\phantom{\rule{0.3em}{0ex}}×\phantom{\rule{0.2em}{0ex}}F=nF\)
In this equation, n is the number of moles of electrons for the balanced oxidation-reduction reaction. The measured cell potential is the maximum potential the cell can produce and is related to the electrical work (wele) by
\({E}_{\text{cell}}=\phantom{\rule{0.2em}{0ex}}\cfrac{-{w}_{\text{ele}}}{nF}\phantom{\rule{5em}{0ex}}\text{or}\phantom{\rule{5em}{0ex}}{w}_{\text{ele}}=\text{−}nF{E}_{\text{cell}}\)
The negative sign for the work indicates that the electrical work is done by the system (the galvanic cell) on the surroundings. In an earlier tutorial, the free energy was defined as the energy that was available to do work. In particular, the change in free energy was defined in terms of the maximum work (wmax), which, for electrochemical systems, is wele.
\(\text{Δ}G={w}_{\text{max}}={w}_{\text{ele}}\)
\(\text{Δ}G=\text{−}nF{E}_{\text{cell}}\)
We can verify the signs are correct when we realize that n and F are positive constants and that galvanic cells, which have positive cell potentials, involve spontaneous reactions. Thus, spontaneous reactions, which have ΔG < 0, must have Ecell > 0. If all the reactants and products are in their standard states, this becomes
\(\text{Δ}G\text{°}=\text{−}nF{E}_{\text{cell}}^{°}\)
This provides a way to relate standard cell potentials to equilibrium constants, since
\(\text{Δ}G\text{°}=\text{−}RT\phantom{\rule{0.2em}{0ex}}\text{ln}\phantom{\rule{0.2em}{0ex}}K\)
\(\text{−}nF{E}_{\text{cell}}^{°}=\text{−}RT\phantom{\rule{0.2em}{0ex}}\text{ln}\phantom{\rule{0.2em}{0ex}}K\phantom{\rule{5em}{0ex}}\text{or}\phantom{\rule{4em}{0ex}}{E}_{\text{cell}}^{°}=\phantom{\rule{0.2em}{0ex}}\cfrac{RT}{nF}\phantom{\rule{0.4em}{0ex}}\text{ln}\phantom{\rule{0.3em}{0ex}}K\)
Most of the time, the electrochemical reactions are run at standard temperature (298.15 K). Collecting terms at this temperature yields
\({E}_{\text{cell}}^{°}=\phantom{\rule{0.2em}{0ex}}\cfrac{RT}{nF}\phantom{\rule{0.4em}{0ex}}\text{ln}\phantom{\rule{0.3em}{0ex}}K=\phantom{\rule{0.2em}{0ex}}\cfrac{(8.314\cfrac{\text{J}}{\text{K·mol}})(298.15K)}{n\phantom{\rule{0.2em}{0ex}}×\phantom{\rule{0.2em}{0ex}}\text{96,485 C/V·mol}}\phantom{\rule{0.4em}{0ex}}\text{ln}\phantom{\rule{0.3em}{0ex}}K=\phantom{\rule{0.2em}{0ex}}\cfrac{\text{0.0257 V}}{n}\phantom{\rule{0.2em}{0ex}}\text{ln}\phantom{\rule{0.2em}{0ex}}K\)
where n is the number of moles of electrons. For historical reasons, the logarithm in equations involving cell potentials is often expressed using base 10 logarithms (log), which changes the constant by a factor of 2.303:
\({E}_{\text{cell}}^{°}=\phantom{\rule{0.2em}{0ex}}\cfrac{0.0\text{592 V}}{n}\phantom{\rule{0.2em}{0ex}}\text{log}\phantom{\rule{0.2em}{0ex}}K\)
Thus, if ΔG°, K, or \({E}_{\text{cell}}^{°}\) is known or can be calculated, the other two quantities can be readily determined. The relationships are shown graphically in the figure below.

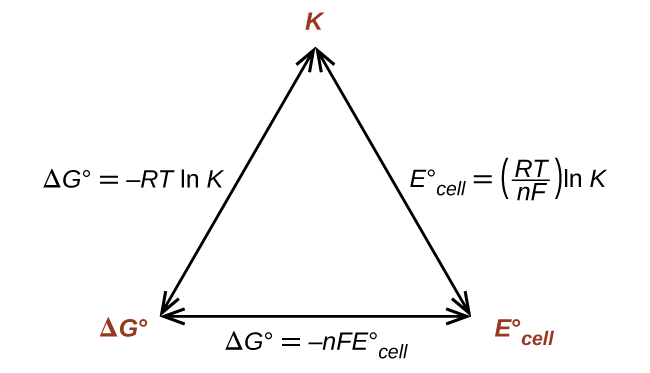

The relationships between ΔG°, K, and \({E}_{\text{cell}}^{°}.\) Given any one of the three quantities, the other two can be calculated, so any of the quantities could be used to determine whether a process was spontaneous.
Given any one of the quantities, the other two can be calculated.
Example
Equilibrium Constants, Standard Cell Potentials, and Standard Free Energy Changes
What is the standard free energy change and equilibrium constant for the following reaction at 25 °C?
\(2{\text{Ag}}^{\text{+}}(aq)+\text{Fe}(s)⇌\text{2Ag}(s)+{\text{Fe}}^{2+}(aq)\)
Solution
The reaction involves an oxidation-reduction reaction, so the standard cell potential can be calculated using the data in this appendix.\(\begin{array}{}\text{anode (oxidation):}\phantom{\rule{6.6em}{0ex}}\text{Fe}(s)\phantom{\rule{0.2em}{0ex}}⟶\phantom{\rule{0.2em}{0ex}}{\text{Fe}}^{2+}(aq)+{\text{2e}}^{\text{−}}\phantom{\rule{4em}{0ex}}{E}_{{\text{Fe}}^{2+}\text{/Fe}}^{°}=\text{−0.447 V}\\ \text{cathode (reduction):}\phantom{\rule{0.2em}{0ex}}2\phantom{\rule{0.2em}{0ex}}×\phantom{\rule{0.2em}{0ex}}({\text{Ag}}^{\text{+}}(aq)+{\text{e}}^{\text{−}}\phantom{\rule{0.2em}{0ex}}⟶\phantom{\rule{0.2em}{0ex}}\text{Ag}(s))\phantom{\rule{4em}{0ex}}{E}_{{\text{Ag}}^{\text{+}}\text{/Ag}}^{°}=\text{0.7996 V}\\ {E}_{\text{cell}}^{°}={E}_{\text{cathode}}^{°}-{E}_{\text{anode}}^{°}={E}_{{\text{Ag}}^{\text{+}}\text{/Ag}}^{°}-{E}_{{\text{Fe}}^{2+}\text{/Fe}}^{°}=\text{+1.247 V}\end{array}\)
Remember that the cell potential for the cathode is not multiplied by two when determining the standard cell potential. With n = 2, the equilibrium constant is then
\({E}_{\text{cell}}^{°}=\phantom{\rule{0.2em}{0ex}}\cfrac{\text{0.0592 V}}{n}\phantom{\rule{0.2em}{0ex}}\text{log}\phantom{\rule{0.2em}{0ex}}K\)
\(K={10}^{n\phantom{\rule{0.2em}{0ex}}×\phantom{\rule{0.2em}{0ex}}{E}_{\text{cell}}^{°}\text{/}\text{0.0592 V}}\)
\(K={10}^{2\phantom{\rule{0.2em}{0ex}}×\phantom{\rule{0.2em}{0ex}}\text{1.247 V/0.0592 V}}\)
\(K={10}^{42.128}\)
\(K=1.3\phantom{\rule{0.2em}{0ex}}×\phantom{\rule{0.2em}{0ex}}{10}^{42}\)
The standard free energy is then
\(\text{Δ}{G}^{°}=\text{−}nF{E}_{\text{cell}}^{°}\)
\(\text{Δ}G\text{°}=-2\phantom{\rule{0.2em}{0ex}}×\phantom{\rule{0.2em}{0ex}}96,485\phantom{\rule{0.4em}{0ex}}\cfrac{\text{J}}{\text{V·mol}}\phantom{\rule{0.2em}{0ex}}×\phantom{\rule{0.2em}{0ex}}\text{1.247 V}=-240.6\phantom{\rule{0.4em}{0ex}}\cfrac{\text{kJ}}{\text{mol}}\)
Check your answer: A positive standard cell potential means a spontaneous reaction, so the standard free energy change should be negative, and an equilibrium constant should be >1.
Now that the connection has been made between the free energy and cell potentials, nonstandard concentrations follow. Recall that
\(\text{Δ}G=\text{Δ}G\text{°}+RT\phantom{\rule{0.2em}{0ex}}\text{ln}\phantom{\rule{0.2em}{0ex}}Q\)
where Q is the reaction quotient (see the tutorial on equilibrium fundamentals). Converting to cell potentials:
\(\text{−}nF{E}_{\text{cell}}=\text{−}nF{E}_{\text{cell}}^{°}+RT\phantom{\rule{0.2em}{0ex}}\text{ln}\phantom{\rule{0.2em}{0ex}}Q\phantom{\rule{5em}{0ex}}\text{or}\phantom{\rule{5em}{0ex}}{E}_{\text{cell}}={E}_{\text{cell}}^{°}-\phantom{\rule{0.2em}{0ex}}\cfrac{RT}{nF}\phantom{\rule{0.4em}{0ex}}\text{ln}\phantom{\rule{0.3em}{0ex}}Q\)
This is the Nernst equation. At standard temperature (298.15 K), it is possible to write the above equations as
\({E}_{\text{cell}}={E}_{\text{cell}}^{°}-\phantom{\rule{0.2em}{0ex}}\cfrac{0.0\text{257 V}}{n}\phantom{\rule{0.2em}{0ex}}\text{ln}\phantom{\rule{0.2em}{0ex}}Q\phantom{\rule{5em}{0ex}}\text{or}\phantom{\rule{5em}{0ex}}{E}_{\text{cell}}={E}_{\text{cell}}^{°}-\phantom{\rule{0.2em}{0ex}}\cfrac{\text{0.0592 V}}{n}\phantom{\rule{0.2em}{0ex}}\text{log}\phantom{\rule{0.2em}{0ex}}Q\)
If the temperature is not 298.15 K, it is necessary to recalculate the value of the constant. With the Nernst equation, it is possible to calculate the cell potential at nonstandard conditions. This adjustment is necessary because potentials determined under different conditions will have different values.
Example
Cell Potentials at Nonstandard Conditions
Consider the following reaction at room temperature:
\(\text{Co}(s)+{\text{Fe}}^{2+}(aq,\phantom{\rule{0.2em}{0ex}}1.94\phantom{\rule{0.2em}{0ex}}M)\phantom{\rule{0.2em}{0ex}}⟶\phantom{\rule{0.2em}{0ex}}{\text{Co}}^{2+}(aq\text{, 0.15}\phantom{\rule{0.2em}{0ex}}M)+\text{Fe}(s)\)
Is the process spontaneous?
Solution
There are two ways to solve the problem. If the thermodynamic information in this appendix were available, you could calculate the free energy change. If the free energy change is negative, the process is spontaneous. The other approach, which we will use, requires information like that given in this appendix. Using those data, the cell potential can be determined. If the cell potential is positive, the process is spontaneous. Collecting information from this appendix and the problem,\(\begin{array}{}\\ \text{Anode (oxidation):}\phantom{\rule{5.1em}{0ex}}\text{Co}(s)\phantom{\rule{0.2em}{0ex}}⟶\phantom{\rule{0.2em}{0ex}}{\text{Co}}^{2+}(aq)+{\text{2e}}^{\text{−}}\phantom{\rule{4em}{0ex}}{E}_{{\text{Co}}^{2+}\text{/Co}}^{°}=\text{−0.28 V}\\ \text{Cathode (reduction):}\phantom{\rule{0.2em}{0ex}}{\text{Fe}}^{2+}(aq)+{\text{2e}}^{\text{−}}\phantom{\rule{0.2em}{0ex}}⟶\phantom{\rule{0.2em}{0ex}}\text{Fe}(s)\phantom{\rule{4em}{0ex}}{E}_{{\text{Fe}}^{2+}\text{/Fe}}^{°}=\text{−0.447 V}\\ {E}_{\text{cell}}^{°}={E}_{\text{cathode}}^{°}-{E}_{\text{anode}}^{°}=\text{−0.447 V}-(\text{−0.28 V})=\text{−0.17 V}\end{array}\)
The process is not spontaneous under standard conditions. Using the Nernst equation and the concentrations stated in the problem and n = 2,
\(Q=\phantom{\rule{0.2em}{0ex}}\cfrac{{[\text{Co}}^{2+}]}{{[\text{Fe}}^{2+}]}\phantom{\rule{0.2em}{0ex}}=\phantom{\rule{0.2em}{0ex}}\cfrac{0.15\phantom{\rule{0.2em}{0ex}}M}{1.94\phantom{\rule{0.2em}{0ex}}M}\phantom{\rule{0.2em}{0ex}}=0.077\)
\({E}_{\text{cell}}={E}_{\text{cell}}^{°}-\phantom{\rule{0.2em}{0ex}}\cfrac{0.0592 V}{n}\phantom{\rule{0.4em}{0ex}}\text{log}\phantom{\rule{0.2em}{0ex}}Q\)
\({E}_{\text{cell}}=-0.1\text{7 V}-\phantom{\rule{0.2em}{0ex}}\cfrac{0.0592 V}{2}\phantom{\rule{0.4em}{0ex}}\text{log}\phantom{\rule{0.2em}{0ex}}0.077\)
\({E}_{\text{cell}}=\text{−0.17 V}+0.033 V=-0.014 V\)
The process is (still) nonspontaneous.
Finally, we will take a brief look at a special type of cell called a concentration cell. In a concentration cell, the electrodes are the same material and the half-cells differ only in concentration. Since one or both compartments is not standard, the cell potentials will be unequal; therefore, there will be a potential difference, which can be determined with the aid of the Nernst equation.
Example
Concentration Cells
What is the cell potential of the concentration cell described by
\(\text{Zn}(s)│{\text{Zn}}^{2+}(aq\text{, 0.10}\phantom{\rule{0.2em}{0ex}}M)║{\text{Zn}}^{2+}(aq\text{, 0.50}\phantom{\rule{0.2em}{0ex}}M)│\text{Zn}(s)\)
Solution
From the information given:\(\begin{array}{}\underset{¯}{\begin{array}{l}\text{Anode:}\phantom{\rule{8.7em}{0ex}}\text{Zn}(s)\phantom{\rule{0.2em}{0ex}}⟶\phantom{\rule{0.2em}{0ex}}{\text{Zn}}^{2+}(aq\text{, 0.10}\phantom{\rule{0.2em}{0ex}}M)+{\text{2e}}^{\text{−}}\phantom{\rule{4em}{0ex}}{E}_{\text{anode}}^{°}=\text{−0.7618 V}\\ \text{Cathode:}\phantom{\rule{0.2em}{0ex}}{\text{Zn}}^{2+}(aq\text{, 0.50}\phantom{\rule{0.2em}{0ex}}M)+{\text{2e}}^{\text{−}}\phantom{\rule{0.2em}{0ex}}⟶\phantom{\rule{0.2em}{0ex}}\text{Zn}(s)\phantom{\rule{4em}{0ex}}{E}_{\text{cathode}}^{°}=\text{−0.7618 V}\end{array}}\\ \text{Overall:}\phantom{\rule{3.4em}{0ex}}{\text{Zn}}^{2+}(aq\text{, 0.50}\phantom{\rule{0.2em}{0ex}}M)\phantom{\rule{0.2em}{0ex}}⟶\phantom{\rule{0.2em}{0ex}}{\text{Zn}}^{2+}(aq\text{, 0.10}\phantom{\rule{0.2em}{0ex}}M)\phantom{\rule{4em}{0ex}}{E}_{\text{cell}}^{°}=\text{0.000 V}\end{array}\)
The standard cell potential is zero because the anode and cathode involve the same reaction; only the concentration of Zn2+ changes. Substituting into the Nernst equation,
\({E}_{\text{cell}}=\text{0.000 V}-\phantom{\rule{0.2em}{0ex}}\cfrac{\text{0.0592 V}}{2}\phantom{\rule{0.4em}{0ex}}\text{log}\phantom{\rule{0.4em}{0ex}}\cfrac{0.10}{0.50}\phantom{\rule{0.2em}{0ex}}=+0.021 V\)
and the process is spontaneous at these conditions.
Check your answer: In a concentration cell, the standard cell potential will always be zero. To get a positive cell potential (spontaneous process) the reaction quotient Q must be <1. Q < 1 in this case, so the process is spontaneous.
