Volume and Pressure: Boyle’s Law

If we partially fill an airtight syringe with air, the syringe contains a specific amount of air at constant temperature, say 25 °C. If we slowly push in the plunger while keeping temperature constant, the gas in the syringe is compressed into a smaller volume and its pressure increases; if we pull out the plunger, the volume increases and the pressure decreases.

This example of the effect of volume on the pressure of a given amount of a confined gas is true in general. Decreasing the volume of a contained gas will increase its pressure, and increasing its volume will decrease its pressure. In fact, if the volume increases by a certain factor, the pressure decreases by the same factor, and vice versa. Volume-pressure data for an air sample at room temperature are graphed in the figure below.

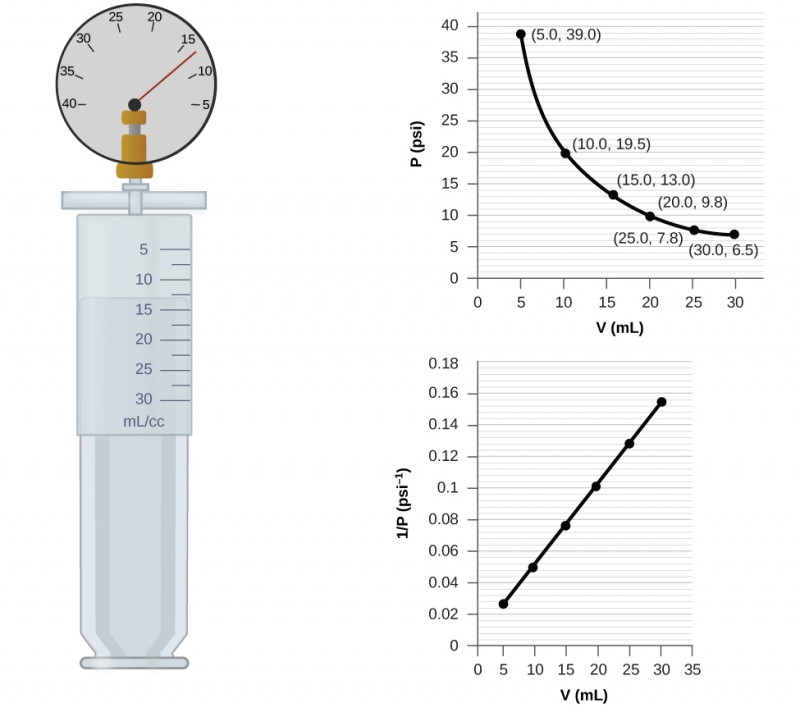

This figure contains a diagram and two graphs. The diagram shows a syringe labeled with a scale in m l or c c with multiples of 5 labeled beginning at 5 and ending at 30. The markings halfway between these measurements are also provided. Attached at the top of the syringe is a pressure gauge with a scale marked by fives from 40 on the left to 5 on the right. The gauge needle rests between 10 and 15, slightly closer to 15. The syringe plunger position indicates a volume measurement about halfway between 10 and 15 m l or c c. The first graph is labeled “V ( m L )” on the horizontal axis and “P ( p s i )” on the vertical axis. Points are labeled at 5, 10, 15, 20, and 25 m L with corresponding values of 39.0, 19.5, 13.0, 9.8, and 6.5 p s i. The points are connected with a smooth curve that is declining at a decreasing rate of change. The second graph is labeled “V ( m L )” on the horizontal axis and “1 divided by P ( p s i )” on the vertical axis. The horizontal axis is labeled at multiples of 5, beginning at zero and extending up to 35 m L. The vertical axis is labeled by multiples of 0.02, beginning at 0 and extending up to 0.18. Six points indicated by black dots on this graph are connected with a black line segment showing a positive linear trend.

When a gas occupies a smaller volume, it exerts a higher pressure; when it occupies a larger volume, it exerts a lower pressure (assuming the amount of gas and the temperature do not change). Since P and V are inversely proportional, a graph of \(\cfrac{1}{P}\) vs. V is linear.

Unlike the P-T and V-T relationships, pressure and volume are not directly proportional to each other. Instead, P and V exhibit inverse proportionality: Increasing the pressure results in a decrease of the volume of the gas. Mathematically this can be written:

\(P\phantom{\rule{0.2em}{0ex}}\text{α}\phantom{\rule{0.2em}{0ex}}1\text{/}V\phantom{\rule{0.2em}{0ex}}\text{or}\phantom{\rule{0.2em}{0ex}}P=k\text{·}1\text{/}V\phantom{\rule{0.2em}{0ex}}\text{or}\phantom{\rule{0.2em}{0ex}}P\text{·}V=k\phantom{\rule{0.2em}{0ex}}\text{or}\phantom{\rule{0.2em}{0ex}}{P}_{1}{V}_{1}={P}_{2}{V}_{2}\)

with k being a constant. Graphically, this relationship is shown by the straight line that results when plotting the inverse of the pressure \(\left(\cfrac{1}{P}\right)\) versus the volume (V), or the inverse of volume \(\left(\cfrac{1}{V}\right)\) versus the pressure (P). Graphs with curved lines are difficult to read accurately at low or high values of the variables, and they are more difficult to use in fitting theoretical equations and parameters to experimental data. For those reasons, scientists often try to find a way to “linearize” their data. If we plot P versus V, we obtain a hyperbola (see the figure below).

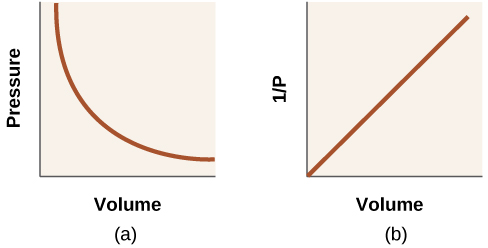

This diagram shows two graphs. In a, a graph is shown with volume on the horizontal axis and pressure on the vertical axis. A curved line is shown on the graph showing a decreasing trend with a decreasing rate of change. In b, a graph is shown with volume on the horizontal axis and one divided by pressure on the vertical axis. A line segment, beginning at the origin of the graph, shows a positive, linear trend.

The relationship between pressure and volume is inversely proportional. (a) The graph of P vs. V is a hyperbola, whereas (b) the graph of \(\left(\cfrac{1}{P}\right)\) vs. V is linear.

The relationship between the volume and pressure of a given amount of gas at constant temperature was first published by the English natural philosopher Robert Boyle over 300 years ago. It is summarized in the statement now known as Boyle’s law: The volume of a given amount of gas held at constant temperature is inversely proportional to the pressure under which it is measured.

Example

Volume of a Gas Sample

The sample of gas in the figure above has a volume of 15.0 mL at a pressure of 13.0 psi. Determine the pressure of the gas at a volume of 7.5 mL, using:

(a) the P-V graph in the figure above

(b) the \(\cfrac{1}{P}\) vs. V graph in the figure above

Comment on the likely accuracy of each method.

Solution

(a) Estimating from the P-V graph gives a value for P somewhere around 27 psi.

(b) Estimating from the \(\cfrac{1}{P}\) versus V graph give a value of about 26 psi.

(c) From Boyle’s law, we know that the product of pressure and volume (PV) for a given sample of gas at a constant temperature is always equal to the same value. Therefore we have P₁V₁ = k and P₂V₂ = k which means that P₁V₁ = P₂V₂.

Using P₁ and V₁ as the known values 13.0 psi and 15.0 mL, P₂ as the pressure at which the volume is unknown, and V₂ as the unknown volume, we have:

\({P}_{1}{V}_{1}={P}_{2}{V}_{2}\phantom{\rule{0.2em}{0ex}}\text{or}\phantom{\rule{0.2em}{0ex}}13.0\phantom{\rule{0.2em}{0ex}}\text{psi}\phantom{\rule{0.2em}{0ex}}\phantom{\rule{0.2em}{0ex}}×\phantom{\rule{0.2em}{0ex}}15.0\phantom{\rule{0.2em}{0ex}}\text{mL}={P}_{2}\phantom{\rule{0.2em}{0ex}}×\phantom{\rule{0.2em}{0ex}}7.5\phantom{\rule{0.2em}{0ex}}\text{mL}\)

Solving:

\(\require{cancel}{P}_{2}=\phantom{\rule{0.2em}{0ex}}\cfrac{13.0\phantom{\rule{0.2em}{0ex}}\text{psi}\phantom{\rule{0.2em}{0ex}}\phantom{\rule{0.2em}{0ex}}×\phantom{\rule{0.2em}{0ex}}15.0\phantom{\rule{0.2em}{0ex}}\cancel{\text{mL}}}{7.5\phantom{\rule{0.2em}{0ex}}\cancel{\text{mL}}}\phantom{\rule{0.2em}{0ex}}=26\phantom{\rule{0.2em}{0ex}}\text{psi}\)

It was more difficult to estimate well from the P-V graph, so (a) is likely more inaccurate than (b) or (c). The calculation will be as accurate as the equation and measurements allow.
