Recap of Resistors in Series and Parallel

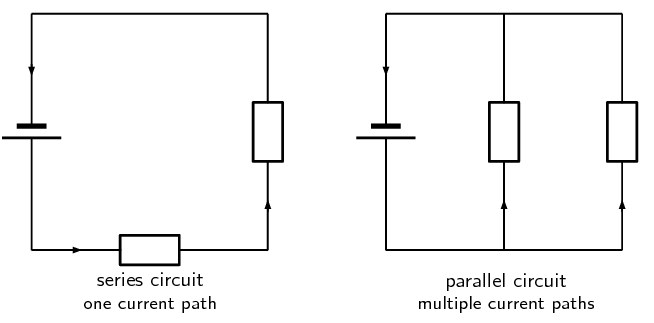

In previous lessons, you learnt about resistors and were introduced to circuits where resistors were connected in series and in parallel. In a series circuit there is one path along which current flows. In a parallel circuit there are multiple paths along which current flows.

When there is more than one resistor in a circuit, we are usually able to calculate the total combined resistance of all the resistors. This is known as the equivalent resistance.

Equivalent series resistance

In a circuit where the resistors are connected in series, the equivalent resistance is just the sum of the resistances of all the resistors.

Definition: Equivalent resistance in a series circuit

For n resistors in series the equivalent resistance is:

\[R_{s} = R_{1} + R_{2} + R_{3} + \ldots + R_{n}\]

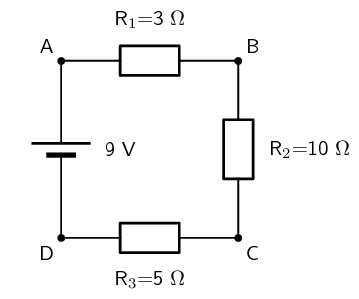

Let us apply this to the following circuit.

The resistors are in series, therefore:

\begin{align*} R_{s} & = R_{1} + R_{2} + R_{3} \\ & = \text{3}\text{ Ω} + \text{10}\text{ Ω} + \text{5}\text{ Ω} \\ & =\text{18}\text{ Ω} \end{align*}

Optional Video by Khan Academy on Circuits and Ohm's Law

Equivalent parallel resistance

In a circuit where the resistors are connected in parallel, the equivalent resistance is given by the following definition.

Definition: Equivalent resistance in a parallel circuit

For \(n\) resistors in parallel, the equivalent resistance is:

\[\frac{1}{R_{p}} = \frac{1}{R_{1}} + \frac{1}{R_{2}} + \frac{1}{R_{3}} + \ldots + \frac{1}{R_{n}}\]

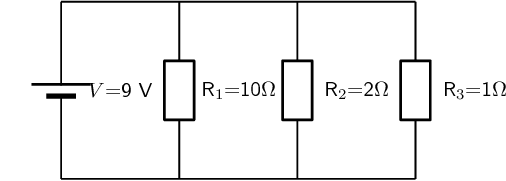

Let us apply this formula to the following circuit.

What is the total (equivalent) resistance in the circuit?

\begin{align*} \frac{1}{R_{p}} & = \left( \frac{1}{R_{1}} + \frac{1}{R_{2}} + \frac{1}{R_{3}} \right) \\ & = \left( \frac{1}{\text{10}\text{ Ω}} + \frac{1}{\text{2}\text{ Ω}} + \frac{1}{\text{1}\text{ Ω}} \right) \\ & = \left( \frac{\text{1}\text{ Ω} + \text{5}\text{ Ω} + \text{10}\text{ Ω}}{\text{10}\text{ Ω}} \right) \\ & = \left( \frac{\text{16}\text{ Ω}}{\text{10}\text{ Ω}} \right) \\ R_{p} & = \text{0.625}\text{ Ω} \end{align*}
